PTFE / PVC / fiberglass / rubber insulated thermocouple wire custom made color

PTFE / PVC / fiberglass / rubber  insulated thermocouple wire custom made color
PTFE / PVC / fiberglass / rubber  insulated thermocouple wire custom made color PTFE / PVC / fiberglass / rubber  insulated thermocouple wire custom made color PTFE / PVC / fiberglass / rubber  insulated thermocouple wire custom made color PTFE / PVC / fiberglass / rubber  insulated thermocouple wire custom made color

Large Image :  PTFE / PVC / fiberglass / rubber insulated thermocouple wire custom made color

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: KX / JX / TX / LX / UX
Payment & Shipping Terms:
Minimum Order Quantity: 200 Meters
Price: Negotiation
Packaging Details: 100m per roll with plastic film wrapped and carton package
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year

PTFE / PVC / fiberglass / rubber insulated thermocouple wire custom made color

Description
Color: Red/Black/Blue/yellow/Purple/ Green Insulation Material: PVC/PFA/PTFE/FB/Silicone Rubber
Conductor Type: Solid/Stranded Standard: GB/IEC/ANSI/BS/DIN/JIS
Meters: 200m Per Roll Item: Hot Sale PTFE / PVC / Fiberglass / Rubber Insulated Thermocouple Wire 2*0.5mm With Red Color Or Custom Made Color
High Light:

type k thermocouple wire

,

thermocouple cable k type


PTFE / PVC / fiberglass / rubber insulated thermocouple wire custom made color

The thermocouple cable can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.


Insulation material: PVC, PTFE(FEP), fiberglass, Mineral -MgO insulated cable ( MI cable ) ,  or in enamelled.

Thermocouple connectors, thermocouple strips are available.


Application of thermocouple cable:
•  Heating – Gas burners for ovens
•  Cooling – Freezers
•  Engine protection – Temperatures and surface temperatures
•  High temperature control – Iron casting

Different color codes can be supplied as per the request of the customers.

Hot sale PTFE / PVC / fiberglass / rubber insulated thermocouple wire 2*0.5mm with red color or custom made color

Detailed Description on thermocouple cable

Thermocouple Code Comp. Type Comp. Wire Name Positive Negative
Name Code Name Code
S SC copper-constantan 0.6 copper SPC constantan 0.6 SNC
R RC copper-constantan 0.6 copper RPC constantan 0.6 RNC
K KCA Iron-constantan22 Iron KPCA constantan22 KNCA
K KCB copper-constantan 40 copper KPCB constantan 40 KNCB
K KX Chromel10-NiSi3 Chromel10 KPX NiSi3 KNX
N NC Iron-constantan 18 Iron NPC constantan 18 NNC
N NX NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
E EX NiCr10-Constantan45 NiCr10 EPX Constantan45 ENX
J JX Iron-constantan 45 Iron JPX constantan 45 JNX
T TX copper-constantan 45 copper TPX constantan 45 TNX

The color of Insulation and Sheath
Type Insulation Color Sheath Color
Positive Negative G H
/ S / S
SC/RC RED GREEN BLACK GRAY BLACK YELLOW
KCA RED BLUE BLACK GRAY BLACK YELLOW
KCB RED BLUE BLACK GRAY BLACK YELLOW
KX RED BLACK BLACK GRAY BLACK YELLOW
NC RED GRAY BLACK GRAY BLACK YELLOW
NX RED GRAY BLACK GRAY BLACK YELLOW
EX RED BROWN BLACK GRAY BLACK YELLOW
JX RED PURPLE BLACK GRAY BLACK YELLOW
TX RED WHITE BLACK GRAY BLACK YELLOW
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign



Properties of insulation material



Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance

Flame

Resistance

PE 80 Good Excellent Excellent Excellent Poor
PVC 105 Very Good Very Good Good Fair Excellent
TPE 125 Excellent Poor Good Good Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent


Thermocouple cable: Fiberglass insulated


Hot sale PTFE / PVC / fiberglass / rubber insulated thermocouple wire 2*0.5mm with red color or custom made color

Delivery and Package:
1. Standard Export package
2. Delivery by sea or air, in about 5-7 days after getting the payment

Product pic:

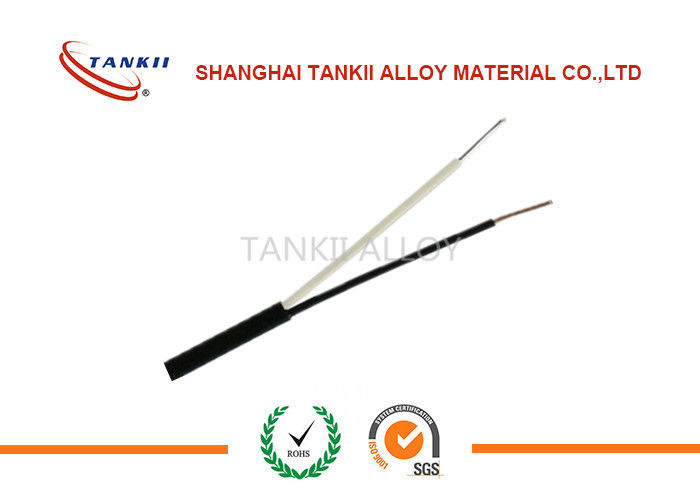

PTFE / PVC / fiberglass / rubber  insulated thermocouple wire custom made color 0
