Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2015
Model Number: Type K
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Spool, carton, plywod case witGood Quality Thermocouple Cable Type KPX KNX Extension Cableh plastic film as clients required
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH
Type: |
K T J N S B R |
Size: |
Required |
Color: |
Standard |
Insulation: |
Fiberglass, PTFE, PVC... |
Conductor: |
According To Type |
Type: |
K T J N S B R |
Size: |
Required |
Color: |
Standard |
Insulation: |
Fiberglass, PTFE, PVC... |
Conductor: |
According To Type |

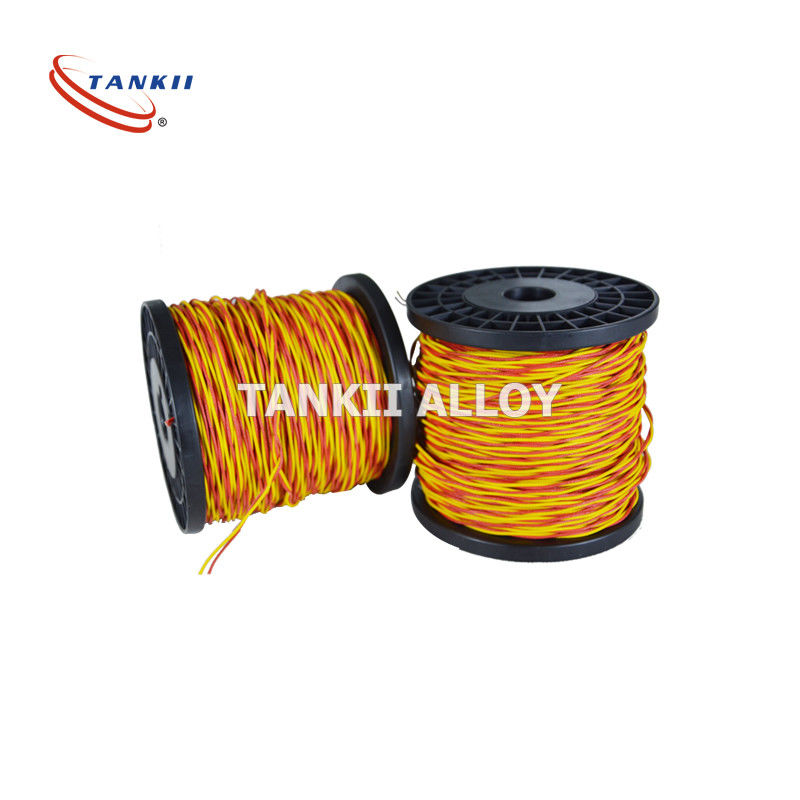

Fiberglass Insulation Shield Kx-Gg K Type Thermocouple Wire High Temperature Cable
The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.
The products is manufactured according to the standards of GB/T4989-1994 "Compensating Wire for
Thermocouples" and JB/T7495-1994 "Compensating Cable for Thermocouples".
This kind of products are mainly used as the connect wire in the automatic measure instruments in the
electronic power industry, chemical industry, petroleum industry, metallurgy industry and national defense industry, etc.
| Spec | Unit | Standard requirement | |
| Conductor | Conductor structure | N/mm | 0.51mm*2 |
| Conductor material | Positive leg (+) | Chromel (NiCr10) | |
| Negative leg(-) | Alumel (NiAl2) | ||
| Conductor Grade | -- | Class II (Extension Grade) | |
| OD of conductor | mm | 0.51mm | |
| Insulation | Material | -- | Fiberglass 400ºC |
| Structure | Twisted/Parallel | Twisted | |
| Insulation thickness | mm | 0.3+/-0.05 | |
| Min thickness | mm | 0.25 | |
| OD of each core | mm | 1.01 | |
| Color | Positive leg(+) | Yellow (ANSI color code) | |
| Negative leg(-) | Red (ANSI color code) | ||
| Package | Spool | m/spool | 100 |
| Weight | -- | -- | 0.78kg/100m |
Temperature of insulation materials:
| Insulation materials | Temperature of insulation materials |
| PVC | 0 ~ 80 °C |
| PTFE | 0 ~ 250 °C |
| Glass fiber | 0 ~ 600 °C |
| Quartz yarn | 0 ~ 1000 °C |
| Ceramic fiber | 0 ~ 1200 °C |
FAQ:
1. What's your idea about your offer?
We have factory,we offer high quality products with proper price.
2. What's the MOQ?
The MOQ is one pc,but our price base on the qty,if you need more,the price will be cheap.
3. What type of payment do you have available?
We accept TT and L/C,as sample order,the Western union, and Aliexpress is available.
4. What's the delivery time?
3-4days after we get the payment.
5. How to make an order ?
Tell us the size and qty you need or tell us where to use,our technician will suggest the size you need.
Then pay to our bank account,we will arrange the production and send you ASAP.
