Thermocouple Extension Cable Type K Chromel Alumel Strip Size 0.8*15mm

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: KP-KN

Payment & Shipping Terms

Minimum Order Quantity: 100 KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Get Best Price
Contact Now
Specifications
Highlight:

Bright Type K Thermocouple Wire

,

Thermocouple Extension Cable Type K

,

Chromel Alumel Thermocouple Extension Cable

Material:
KP-KN NICR-NIAL
Thickness:
0.1-2.5mm
Width:
1.0mm Min.
Surface:
Bright
HS Code:
75062000
Origin:
Shanghai, China
Material:
KP-KN NICR-NIAL
Thickness:
0.1-2.5mm
Width:
1.0mm Min.
Surface:
Bright
HS Code:
75062000
Origin:
Shanghai, China
Description

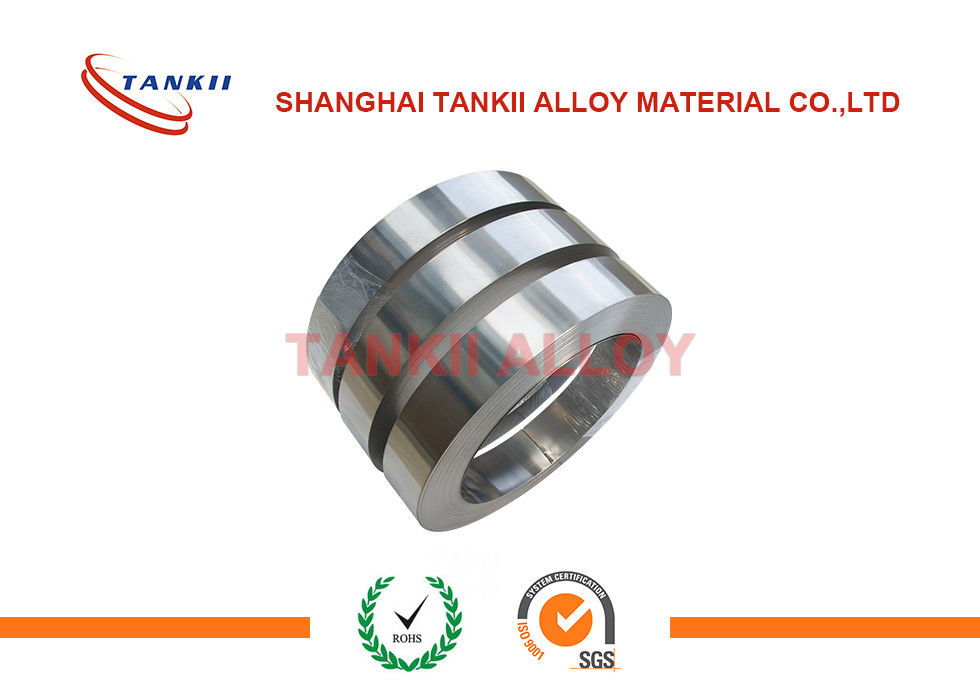

Thermocouple Extension Cable Type K Chromel Alumel Strip Size 0.8*15mm

Thermocouple Extension Cable Type K Chromel Alumel Strip Size 0.8*15mm

Details:

Condutor:Type KP KN strip(Chromel Alumel  alloy strip)

Status:Bright,soft
Coil weight is about 20kgs.
MOQ:100kgs(But we can offer you a discount when the quantity is large)
Lead time:15-20days.
Package:be packed with plastic bags,then packed into plywood pallet or wooden case.

TYPE K (CHROMEL vs ALUMEL ) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.

1. Chemical Composition



Material Chemical composition (%)
Ni Cr Si Mn Al
KP(Chromel) 90 10
KN(Alumel) 95   1-2 0.5-1.5 1-1.5



2. Physical properties and Mechnical properties





Material


Density(g/cm3)

Melting pointºC)

Tensile Strength(Mpa)

Volume resistivity(μΩ.cm)

Elongation rate (%)
KP(Chromel) 8.5 1427 >490 70.6(20ºC) >10
KN(Alumel) 8.6 1399 >390 29.4(20ºC) >15


3. EMF Value range at different temperature



Material EMF value Vs Pt(μV)
100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
KP(Chromel) 2816~2896 5938~6018 9298~9378 12729~12821 16156~16266 19532~19676
KN(Alumel) 1218~1262 2140~2180 2849~2893 3600~3644 4403~4463 5271~5331
EMF value Vs Pt(μV)
700ºC 800ºC 900ºC 1000ºC 1100ºC
22845~22999 26064~26246 29223~29411 32313~32525 35336~35548
6167~6247 7080~7160 7959~8059 8807~8907 9617~9737



Thermocouple Extension Cable Type K Chromel Alumel Strip Size 0.8*15mm 0
