Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001
Model Number: fiberglass
Payment & Shipping Terms
Minimum Order Quantity: 2000m
Price: negotiable
Packaging Details: standard packing
Delivery Time: 8-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500000+meter+month
Type: |
Insulated |
Surface: |
Bright/ Oxidized |
Grade: |
I/II |
Tensile Strength: |
390 |
Type: |
Insulated |
Surface: |
Bright/ Oxidized |
Grade: |
I/II |
Tensile Strength: |
390 |
Product Description

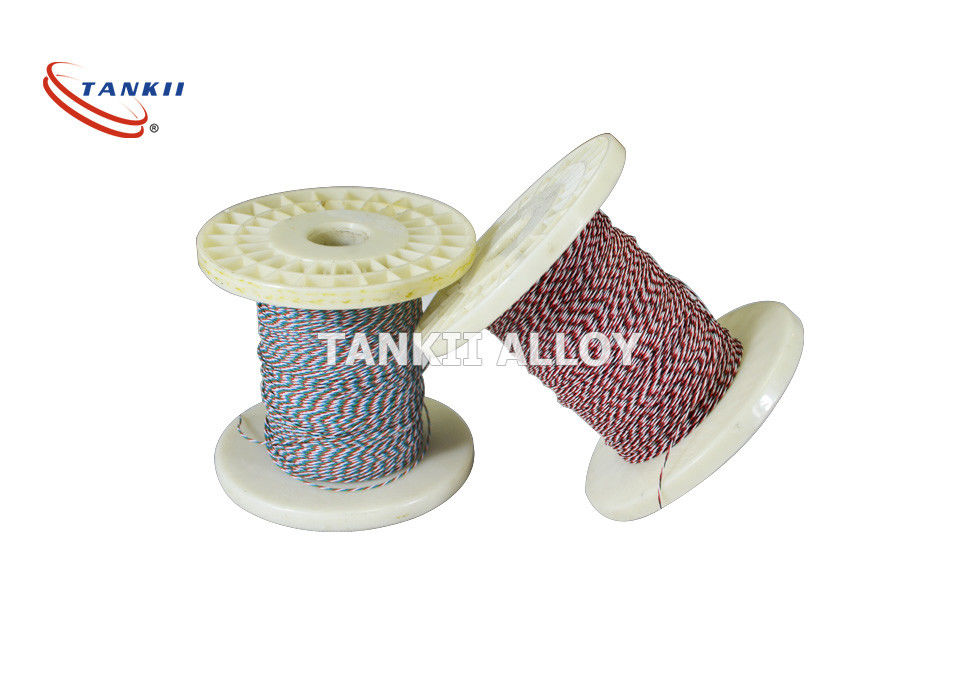

2*0.711mm tankii Fiberglass Insulated Thermocouple Wire (type K, J, T, E, N, )
What is a Thermocouple?
A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple reference tables to calculate the temperature.
NiCr- CuNi thermocouple (type E) is also named NiCr-Constantan thermocouple. It has a stronger signal & higher accuracy than the Type K or Type J at moderate temperature ranges of 1,000F and lower. The type E is also more stable than the type K, which adds to its accuracy.
Type E thermocouple has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300ºC, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases(tankii).
Detailed Parameter
Chemical Composition
|
|||||
Conductor Name |
Polarity |
Code |
Nominal Chemical Composition /% |
||
Ni |
Cr |
Cu |
|||
NiCr |
Positive |
EP |
90 |
10 |
-- |
Cu-Ni(Constantan) |
Negative |
EN |
45 |
-- |
55 |
Working Temperature Range
|
||
Diameter/mm |
Long time Working temperature /ºC |
Short period Working temperature /ºC |
0.3, 0.5 |
350 |
450 |
0.8, 1.0, 1.2 |
450 |
550 |
1.6, 2.0 |
550 |
650 |
2.5 |
650 |
750 |
3.2 |
750 |
900 |
Application:
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting
Packing & Delivery
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Detail: By sea/ air. About 7 days, as the order quantity.
