Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2015
Model Number: Type K
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Spool, carton, plywod case witGood Quality Thermocouple Cable Type KPX KNX Extension Cableh plastic film as clients required
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH
Transport: |
Express, Sea, Air, Rail... |
Conductor Type: |
Stranded/ Solid |
Insulation: |
Fiberglass, PVC, SILICONE |
Size: |
Customized |
Color: |
Request |
Transport: |
Express, Sea, Air, Rail... |
Conductor Type: |
Stranded/ Solid |
Insulation: |
Fiberglass, PVC, SILICONE |
Size: |
Customized |
Color: |
Request |

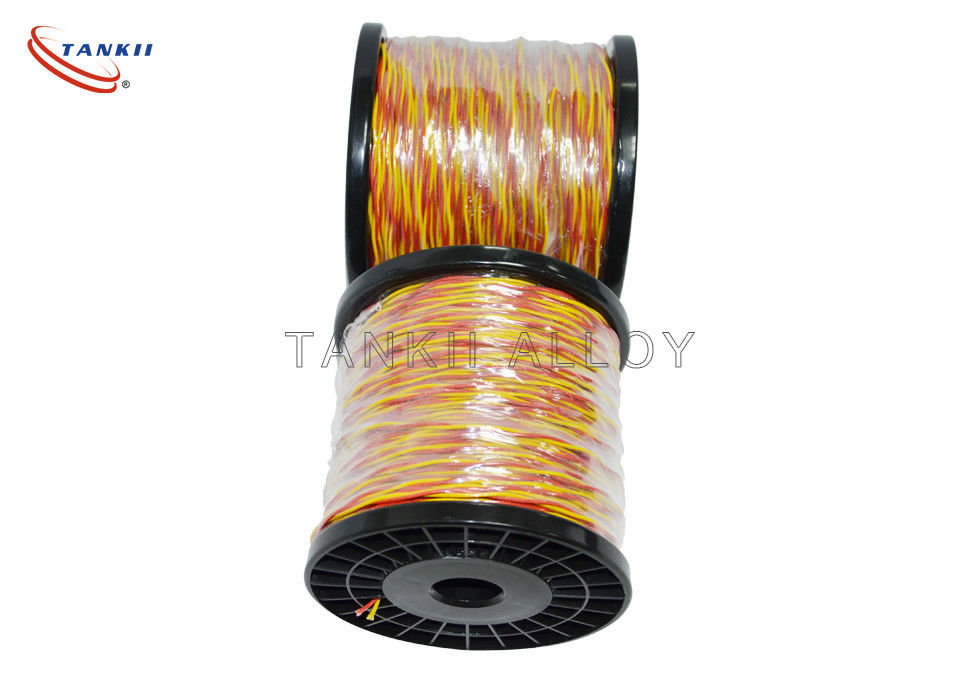

20 Awg Type K Thermocouple Cable Insulated KPX KNX Extension Cable
Description
Name: Type K/J/E/N/T/R/S/B fiberglass/silicone/PVC thermocouple compensation extension cable wire
Model: Type K/J/E/N/T/R/S/B
Size: 26~4AWG
Feature
Rated Voltage:300V
Rated temperature: -60℃~+350℃
Structure
Conductor: Nicr, Nisi
Insulation: Fiberglass/silicone/PVC
Jacket: Fiberglass braid with silicone or TFE finish
Standard:UL758,UL1581
This kind of products are mainly used as the connect wire in the automatic measure instruments in the
electronic power industry, chemical industry, petroleum industry, metallurgy industry and national defense industry, etc.
| Compensation wire code | Thermocouple type | Thermocouple index | Alloy material of wine | Insulation color | ||
| Anode | Cathode | Anode | Cathode | |||
| SC | PtRh10-Pt | S | SPC(Cu) | SNC(Cu-Ni) | Red | Green |
| RC | PtRh13-Pt | R | RPC(Cu) | RNC(Cu-Ni) | Red | Green |
| KCA | Nichrome-NiSi | K | KPCA(Fe) | KNCA(Cu-Ni) | Red | Blue |
| KCB | KNCB(Cu) | KNCB(Cu-Ni) | Red | Blue | ||
| KX | KPX(NiCr) | KNX(NiSi) | Red | Black | ||
| NC | NiCrSi-NiSi | N | NPC(Fe) | NNC(Cu-Ni) | Red | Grey |
| NX | NPX(NiCrSi) | NNX(NiSi) | Red | Grey | ||
| EX | NiCr-CuNi | E | EPX(NiCr) | ENX(Cu-Ni) | Red | Brown |
| JX | Fe-CuNi | J | JPX(Fe) | JNX(Cu-Ni) | Red | Purple |
| TX | Cu-CuNi | T | TPX(Cu) | TNX(Cu-Ni) | Red | White |
Temperature of insulation materials:
| Insulation materials | Temperature of insulation materials |
| PVC | 0 ~ 80 °C |
| PTFE | 0 ~ 250 °C |
| Glass fiber | 0 ~ 600 °C |
| Quartz yarn | 0 ~ 1000 °C |
| Ceramic fiber | 0 ~ 1200 °C |
Structure:
Conductor: Positive leg and negative leg depends on thermocouple type.
Insulation: PVC, Silicone, Teflon, fiberglass insulated.
Braiding: fiberglass braiding.
Sheath: PVC, Silicone, Teflon, fiberglass braided.
Shield: Stainless steel or tinned copper wire.
Color: Can be customized.
Application temperature range: -40°C~+1100°C
FAQ:
1. What's your idea about your offer?
We have factory,we offer high quality products with proper price.
2. What's the MOQ?
The MOQ is one pc,but our price base on the qty,if you need more,the price will be cheap.
3. What type of payment do you have available?
We accept TT and L/C,as sample order,the Western union and Aliexpress is available.
4. What's the delivery time?
3-4days after we get the payment.
5. How to make an order ?
Tell us the size and qty you need or tell us where to use,our technician will suggest the size you need.
Then pay to our bank account,we will arrange the production and send you ASAP.
