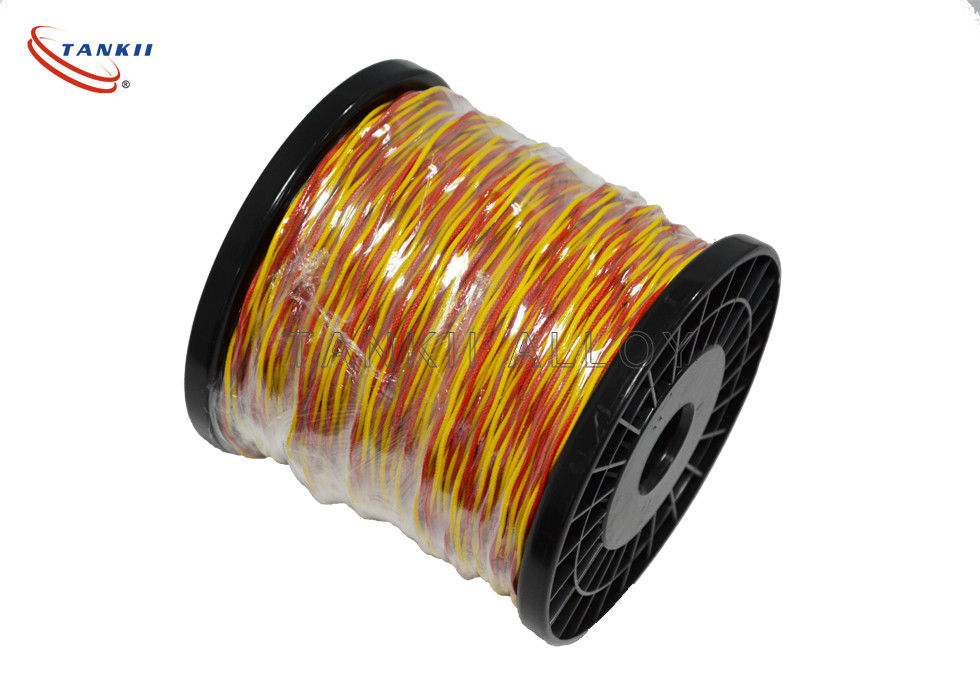

Fiberglass Insulation Thermocouple Cable

Fiberglass Insulation Thermocouple Cable
Fiberglass Insulation Thermocouple Cable Fiberglass Insulation Thermocouple Cable Fiberglass Insulation Thermocouple Cable Fiberglass Insulation Thermocouple Cable

Large Image :  Fiberglass Insulation Thermocouple Cable

Product Details:
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2015
Model Number: Type K
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Spool, carton, plywod case witGood Quality Thermocouple Cable Type KPX KNX Extension Cableh plastic film as clients required
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH

Fiberglass Insulation Thermocouple Cable

Description
Type: K T J N S B R Size: Required
Color: Standard Insulation: Fiberglass, PTFE, PVC...
Conductor: According To Type
Highlight:

high temperature thermocouple cable

,

type k thermocouple wire

22 Awg Type K Yellow Red Color Fiberglass Insulation Thermocouple Cable



Compensation wire code Thermocouple type Thermocouple index Alloy material of wine Insulation color
Anode Cathode Anode Cathode
SC PtRh10-Pt S SPC(Cu) SNC(Cu-Ni) Red Green
RC PtRh13-Pt R RPC(Cu) RNC(Cu-Ni) Red Green
KCA Nichrome-NiSi K KPCA(Fe) KNCA(Cu-Ni) Red Blue
KCB KNCB(Cu) KNCB(Cu-Ni) Red Blue
KX KPX(NiCr) KNX(NiSi) Red Black
NC NiCrSi-NiSi N NPC(Fe) NNC(Cu-Ni) Red Grey
NX NPX(NiCrSi) NNX(NiSi) Red Grey
EX NiCr-CuNi E EPX(NiCr) ENX(Cu-Ni) Red Brown
JX Fe-CuNi J JPX(Fe) JNX(Cu-Ni) Red Purple
TX Cu-CuNi T TPX(Cu) TNX(Cu-Ni) Red White



Structure

Conductor: Nicr, Nisi

Insulation: Fiberglass/silicone/PVC

Jacket: Fiberglass braid with silicone or TFE finish

Standard:UL758,UL1581

Conductor: Positive leg and negative leg depends on thermocouple type.

Insulation: PVC, Silicone, Teflon, fiberglass insulated.

Braiding: fiberglass braiding.

Sheath: PVC, Silicone, Teflon, fiberglass braided.

Shield: Stainless steel or tinned copper wire.

Color: Can be customized.

Application temperature range: -40°C~+1100°C



This kind of products are mainly used as the connect wire in the automatic measure instruments in the
electronic power industry, chemical industry, petroleum industry, metallurgy industry and national defense industry, etc.




Temperature of insulation materials:

Insulation materials Temperature of insulation materials
PVC 0 ~ 80 °C
PTFE 0 ~ 250 °C
Glass fiber 0 ~ 600 °C
Quartz yarn 0 ~ 1000 °C
Ceramic fiber 0 ~ 1200 °C









FAQ:

1. What's your idea about your offer?

We have factory,we offer high quality products with proper price.



2. What's the MOQ?

The MOQ is one pc,but our price base on the qty,if you need more,the price will be cheap.



3. What type of payment do you have available?

We accept TT and L/C,as sample order,the Western union,Moneygram and Aliexpress is available.



4. What's the delivery time?

3-4days after we get the payment.



5. How to make an order ?

Tell us the size and qty you need or tell us where to use,our technician will suggest the size you need.

Then pay to our bank account,we will arrange the production and send you ASAP.
