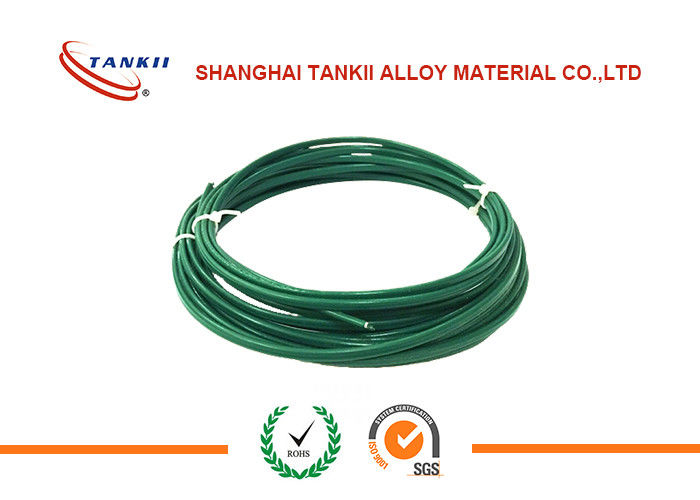

Multi Core High Temperature Thermocouple Extension Wire With PTFE Insulation 2 * 20 AWG Type KX

Name: Multi Core High Temperature Thermocouple Extension Wire With PTFE Insulation 2 * 20 AWG Type KX
Brand: Tankii
SKU: KX / JX / TX / LX / UX thermocouple wire
Rating: 4.7 (193 reviews)

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: KX / JX / TX / LX / UX thermocouple wire

Payment & Shipping Terms

Minimum Order Quantity: 200 Meters

Price: Negotiation

Packaging Details: 100m per roll with plastic film wrapped and carton package

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000Ton per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    type k thermocouple wire, thermocouple cable k type


Color:	Red/Black/Blue/yellow/Purple/ Green	Insulation Material:	PVC/PFA/PTFE/FB/Silicone Rubber
Conductor Type:	Solid/Stranded	Standard:	GB/IEC/ANSI/BS/DIN/JIS
KPX:	Chromel	KNX:	Alumel
Insulation:	High Silica	Temperature:	800-1000 Degrees
Package:	100m Per Roll In Carton Box	Leadting Time:	5-7 Days
Armor:	No Armor	Conductor Count:	1 PAIR
Conductor Size:	20 AWG / 0.81mm	Conductor Type:	Stranded Conductors
Insulation Material:	FEP / PTFE	Jacketing Material:	FEP / PTFE
Screen/Shield Type:	OVERALL STAINLESS STEEL BRAIDED	Thermocouple Type:	CHROMEL/ALUMEL TYPE KX

Color:	Red/Black/Blue/yellow/Purple/ Green
Insulation Material:	PVC/PFA/PTFE/FB/Silicone Rubber
Conductor Type:	Solid/Stranded
Standard:	GB/IEC/ANSI/BS/DIN/JIS
KPX:	Chromel
KNX:	Alumel
Insulation:	High Silica
Temperature:	800-1000 Degrees
Package:	100m Per Roll In Carton Box
Leadting Time:	5-7 Days
Armor:	No Armor
Conductor Count:	1 PAIR
Conductor Size:	20 AWG / 0.81mm
Conductor Type:	Stranded Conductors
Insulation Material:	FEP / PTFE
Jacketing Material:	FEP / PTFE
Screen/Shield Type:	OVERALL STAINLESS STEEL BRAIDED
Thermocouple Type:	CHROMEL/ALUMEL TYPE KX

Description

Multi Core High Temperature Thermocouple Extension Wire With PTFE Insulation 2 * 20 AWG Type KX

Multi Core High Temperature Thermocouple Extension Wire With PTFE Insulation 2 * 20 AWG Type KX

The thermocouple cable can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 ‘Alloy wires of extension and compensating cables for thermocouples’ (Chinese National Standard), and also IEC584-3 ‘Thermocouple part 3-compensating wire’ (International standard).

Mineral insulated cable ( MI cable ) , enamelled wire, ribbon wire, rods can be Customized according to your request.

Application Range of thermocouple cable:

• Heating – Gas burners for ovens
• Cooling – Freezers
• Engine protection – Temperatures and surface temperatures
• High temperature control – Iron casting

Different color codes can be customized as per the request of the customers.

Detailed Description on thermocouple cable

Thermocouple Code	Comp. Type	Comp. Wire Name	Positive		Negative
Thermocouple Code	Comp. Type	Comp. Wire Name	Name	Code	Name	Code
S	SC	copper-constantan 0.6	copper	SPC	constantan 0.6	SNC
R	RC	copper-constantan 0.6	copper	RPC	constantan 0.6	RNC
K	KCA	Iron-constantan22	Iron	KPCA	constantan22	KNCA
K	KCB	copper-constantan 40	copper	KPCB	constantan 40	KNCB
K	KX	Chromel10-NiSi3	Chromel10	KPX	NiSi3	KNX
N	NC	Iron-constantan 18	Iron	NPC	constantan 18	NNC
N	NX	NiCr14Si-NiSi4Mg	NiCr14Si	NPX	NiSi4Mg	NNX
E	EX	NiCr10-Constantan45	NiCr10	EPX	Constantan45	ENX
J	JX	Iron-constantan 45	Iron	JPX	constantan 45	JNX
T	TX	copper-constantan 45	copper	TPX	constantan 45	TNX

The color of Insulation and Sheath
Type	Insulation Color		Sheath Color
	Positive	Negative	G		H
	Positive	Negative	/	S	/	S
SC/RC	RED	GREEN	BLACK	GRAY	BLACK	YELLOW
KCA	RED	BLUE	BLACK	GRAY	BLACK	YELLOW
KCB	RED	BLUE	BLACK	GRAY	BLACK	YELLOW
KX	RED	BLACK	BLACK	GRAY	BLACK	YELLOW
NC	RED	GRAY	BLACK	GRAY	BLACK	YELLOW
NX	RED	GRAY	BLACK	GRAY	BLACK	YELLOW
EX	RED	BROWN	BLACK	GRAY	BLACK	YELLOW
JX	RED	PURPLE	BLACK	GRAY	BLACK	YELLOW
TX	RED	WHITE	BLACK	GRAY	BLACK	YELLOW
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign

Delivery and Package:

1. Standard Export package for thermocouple wire

2. Delivery by sea or air, in about 5-7 days after getting the payment
