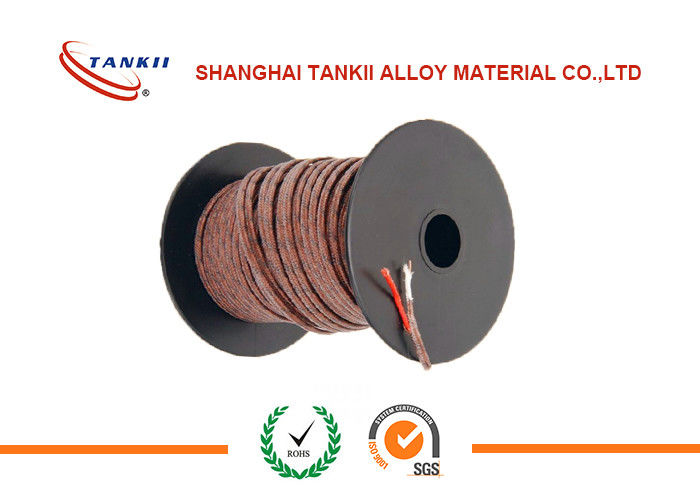

Iron Constantan Thermocouple wire 26AWG multi core cable For Industry Instrumentation Heating

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: KX / JX / TX / LX / UX thermocouple wire

Payment & Shipping Terms

Minimum Order Quantity: 200 Meters

Price: Negotiation

Packaging Details: 100m per roll with plastic film wrapped and carton package

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 5000Ton per year

Get Best Price
Contact Now
Specifications
Highlight:

type k thermocouple wire

,

thermocouple cable k type

Color:
Red/Black/Blue/yellow/Purple/ Green
Insulation Material:
PVC/PFA/PTFE/FB/Silicone Rubber
Conductor Type:
Solid/Stranded
Standard:
GB/IEC/ANSI/BS/DIN/JIS
JP:
Irom Thermocouple Wire
JN:
Constantan Thermocouple Wire
Insulation:
High Silica
Temperature:
800-1000 Degrees
Package:
100m Per Roll In Carton Box
Leading Time:
5-7 Days
Brand Name:
Tankii Alloy
Color:
Red/Black/Blue/yellow/Purple/ Green
Insulation Material:
PVC/PFA/PTFE/FB/Silicone Rubber
Conductor Type:
Solid/Stranded
Standard:
GB/IEC/ANSI/BS/DIN/JIS
JP:
Irom Thermocouple Wire
JN:
Constantan Thermocouple Wire
Insulation:
High Silica
Temperature:
800-1000 Degrees
Package:
100m Per Roll In Carton Box
Leading Time:
5-7 Days
Brand Name:
Tankii Alloy
Description
Iron Constantan Thermocouple wire 26AWG multi core cable For Industry Instrumentation Heating
Iron Constantan Thermocouple wire 26AWG multi core cable For Industry Instrumentation Heating
The thermocouple cable can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 ‘Alloy wires of extension and compensating cables for thermocouples’ (Chinese National Standard), and also IEC584-3 ‘Thermocouple part 3-compensating wire’ (International standard).

Mineral insulated cable ( MI cable ) , enamelled wire, ribbon wire, rods can be Customized according to your request.

Application Range:
•  Heating – Gas burners for ovens
•  Cooling – Freezers
•  Engine protection – Temperatures and surface temperatures
•  High temperature control – Iron casting

Different color codes can be supplied as per the request of the customers.

Detailed Description on thermocouple cable

Thermocouple Code Comp. Type Comp. Wire Name Positive Negative
Name Code Name Code
S SC copper-constantan 0.6 copper SPC constantan 0.6 SNC
R RC copper-constantan 0.6 copper RPC constantan 0.6 RNC
K KCA Iron-constantan22 Iron KPCA constantan22 KNCA
K KCB copper-constantan 40 copper KPCB constantan 40 KNCB
K KX Chromel10-NiSi3 Chromel10 KPX NiSi3 KNX
N NC Iron-constantan 18 Iron NPC constantan 18 NNC
N NX NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
E EX NiCr10-Constantan45 NiCr10 EPX Constantan45 ENX
J JX Iron-constantan 45 Iron JPX constantan 45 JNX
T TX copper-constantan 45 copper TPX constantan 45 TNX


The color of Insulation and Sheath

Type Insulation Color Sheath Color
Positive Negative G H
/ S / S
SC/RC RED GREEN BLACK GRAY BLACK YELLOW
KCA RED BLUE BLACK GRAY BLACK YELLOW
KCB RED BLUE BLACK GRAY BLACK YELLOW
KX RED BLACK BLACK GRAY BLACK YELLOW
NC RED GRAY BLACK GRAY BLACK YELLOW
NX RED GRAY BLACK GRAY BLACK YELLOW
EX RED BROWN BLACK GRAY BLACK YELLOW
JX RED PURPLE BLACK GRAY BLACK YELLOW
TX RED WHITE BLACK GRAY BLACK YELLOW
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign















































Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
PE 80 Good Excellent Excellent Excellent Poor
PVC 105 Very Good Very Good Good Fair Excellent
TPE 125 Excellent Poor Good Good Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent





Delivery and Package:
1. Standard Export package for thermocouple wire
2. Delivery by sea or air, in about 5-7 days after getting the payment
Iron  Constantan Thermocouple wire 26AWG multi core cable  For Industry Instrumentation Heating 0
