Product Details:
|
| Application: | Precision Resistor | Color: | Black,Red,Nature,Blue,Green,yellow |
|---|---|---|---|
| Shape: | Round Wire/flat Wire | Bare Conductor: | Constantan |
| High Light: | enamel magnet wire,enameled wire |
||
Product Description

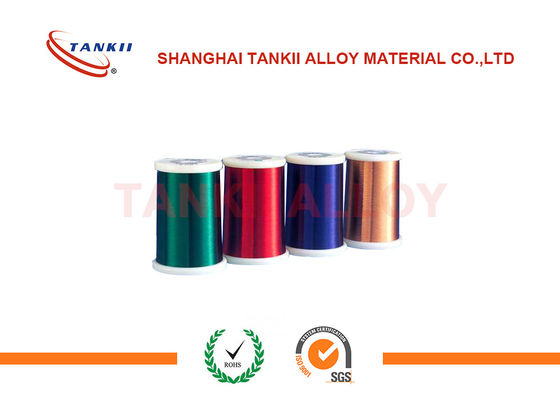

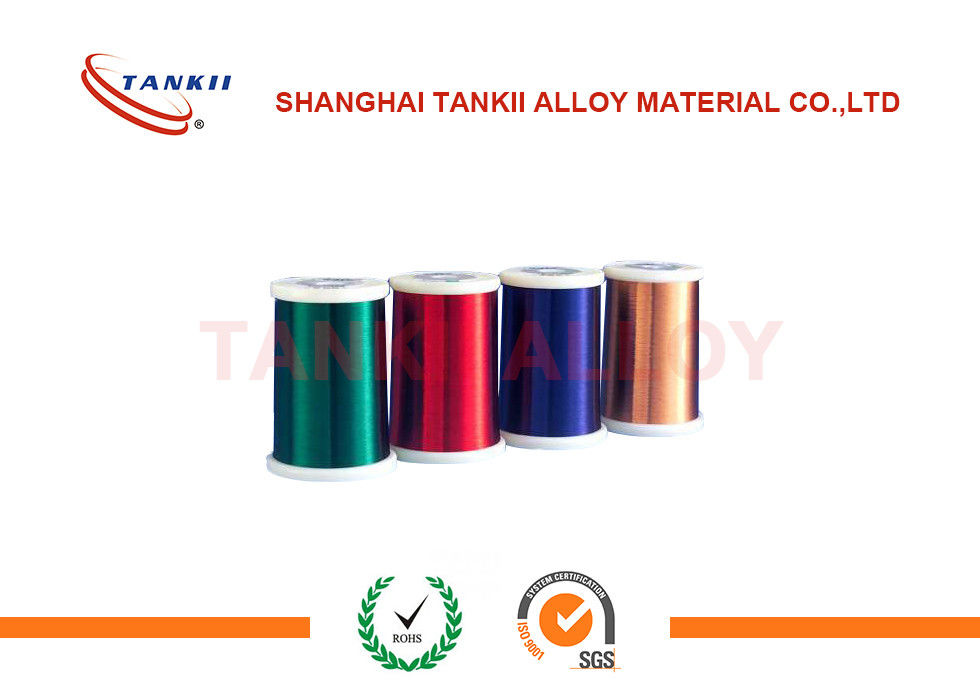

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Manganin,Constantan
| Constantan 6J40 | New Constantan |
Normal Manganin |
Manganin |
Shunt Manganin |
||
| 6J11 | 6J12 | 6J8 | 6J13 | |||
| Main Chemical Elements % | Mn | 1~2 | 10.5~12.5 | 11~13 | 8~10 | 11~13 |
| Ni | 39~41 | - | 2~3 | - | 2~5 | |
| Cu | REST | REST | REST | REST | REST | |
| Al2.5~4.5 Fe1.0~1.6 | Si1~2 | |||||
| Temperature Range for Components | 5~500 | 5~500 | 5~45 | 10~80 | 10~80 | |
| Density | 8.88 | 8 | 8.44 | 8.7 | 8.4 | |
| g/cm3 | ||||||
| Resistivity | 0.48 | 0.49 | 0.47 | 0.35 | 0.44 | |
| μΩ.m,20 | ±0.03 | ±0.03 | ±0.03 | ±0.05 | ±0.04 | |
| Extensibility | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | |
| %Φ0.5 | ||||||
| Resistance | -40~+40 | -80~+80 | -3~+20 | -5~+10 | 0~+40 | |
| Temperature | ||||||
| Quotiety | ||||||
| α,10 -6 / | ||||||
| Thermoelectromotive | 45 | 2 | 1 | 2 | 2 | |
| force to Copper | ||||||
| μv/(0~100) |
||||||
Tpye of Insulation:
1) Polyester resistance wire , class 130
2) Modified polyester resistance wire , class 155
3) Polyesterimide resistance wire , class 180
4) Polyester (imide) coated with polyamide-imide resistance wire , class 200
5) Polyimide resistance wire , class 220
Tpye of Bare Wire
|
main property type |
Cuni1 | CuNI2 | CuNI6 | CuNi8 | CuNI10 | CuNi14 | CuNi19 | CuNi23 | CuNi30 | CuNi34 | CuNI44 | ||
|
main chemical composition |
Ni | 1 | 2 | 6 | 8 | 10 | 14.2 | 19 | 23 | 30 | 34 | 44 | |
| MN | / | / | / | / | / | 0.3 | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | ||
| CU | rest | rest | rest | rest | rest | rest | rest | rest | rest | rest | rest | ||
|
max working temperature |
/ | 200 | 220 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | 400 | ||
|
density g/cm3 |
8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | ||
|
resistivity at 20 °c |
0.03 ± 10% |
0.05± 10% |
0.10± 10% |
0.12± 10% |
0.15± 10% |
0.20± 5% |
0.25± 5% |
0.30± 5% |
0.35± 5% |
0.40± 5% |
0.49± 5% |
||
|
temperature coefficient of resistance |
<100 | <120 | <60 | <57 | <50 | <38 | <25 | <16 | <10 | -0 | <-6 | ||
|
tensile strength mpa |
>210 | >220 | >250 | >270 | >290 | >310 | >340 | >350 | >400 | >400 | >420 | ||
| elongation | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | >25 | ||
|
melting point °c |
1085 | 1090 | 1095 | 1097 | 1100 | 1115 | 1135 | 1150 | 1170 | 1180 | 1280 | ||
|
coefficient of conductivity |
145 | 130 | 92 | 75 | 59 | 48 | 38 | 33 | 27 | 25 | 23 |
More Detail Information, Please feel free contact us!
Contact Person: tankii
Tel: +8615000002421
