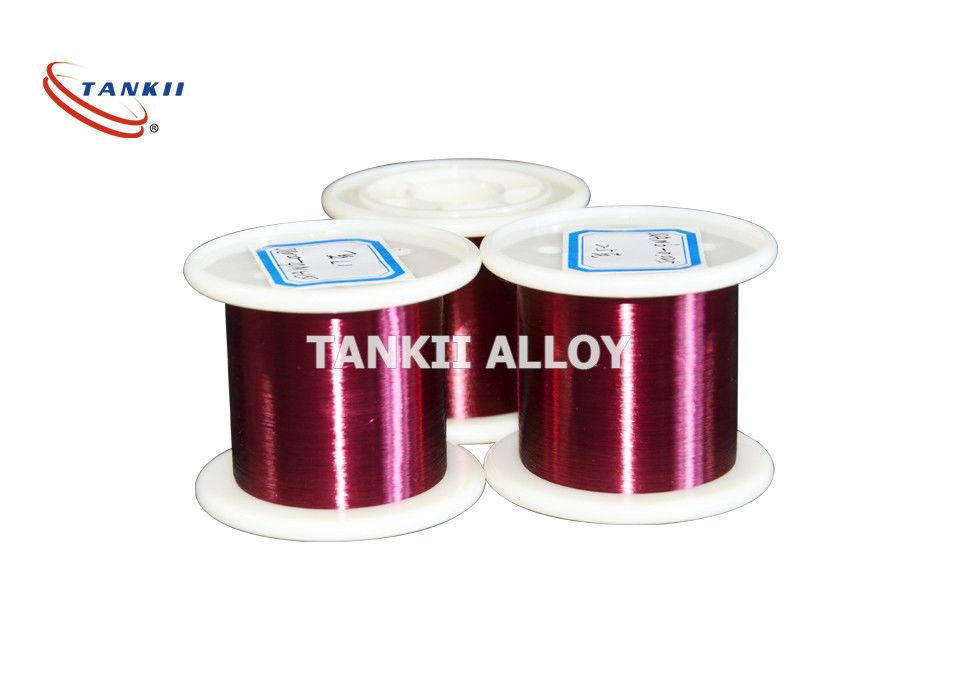

Selfbonding Enameled Wire CuNi6 0.08mm For Winding Transformer

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001: 2008

Model Number: cuni 6

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: Negotiation

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 15-28DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 300+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

Enameled Self Bonding Copper Wire

,

Winding Transformer Enamel Coated Wire

,

Selfbonding Enameled Winding Wire

Material:
Constantan/ Manganin
Wire Chemical:
Cuni
Type:
Round Insulated Wire
Insulation Material:
Polyesterimide, Polyester
Application:
Electric Instrument, Electric Part Coil And So On
Class:
130,155,180,200,220
Material:
Constantan/ Manganin
Wire Chemical:
Cuni
Type:
Round Insulated Wire
Insulation Material:
Polyesterimide, Polyester
Application:
Electric Instrument, Electric Part Coil And So On
Class:
130,155,180,200,220
Description
Selfbonding Enameled Wire CuNi6 0.08mm For Winding Transformer

Selfbonding enameled wire CuNi6 0.08mm for Winding Transformer



Application of CuNi6


CuNi6 , low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.



roduct type:1EI/AIW/200 Thermal Rating:C
Applicable standard: IEC 60317-13;MW35-C, MW73-C, GB/T 6109.2, JIS C3215, UL-Certified
Size available(mm): 0.08mm-4.00 mm

Description:
EAIW is double-layer insulation, and its bottom layer is Polyesterimide or Modify Polyester covered by Polyamideimide. This combination improves insulation characteristics to obtain the best characteristics, such as strong physical characteristics and excellent insulation with excellent chemical resistance, refrigerant resistance.

Characteristic:
High heat resistance, high mechanical properties
(1) It has better heat resistance, moisture resistance and chemical resistance than PEW + NY.
(2) EAIW provides excellent thermal shock resistance, adhesion, softening resistance and wear resistance.
(3)Capable of working under extreme situations where strong resistibility against very high and low temperature, powerful cryogen, hard radiation and forceful heat shock are needed.

Typical Applications:
Applied in C Class motors, transformers, electric refrigerator powered by refrigerant R22/R410c/R600a/134a and windings in air-conditionar compressor. Motors, Dry transformers, Heavy duty hand tool motors, Encapsulated coils.



Type of bare alloy wire
Copper-nickel alloy wire, Constantan Wire,CuNi1~CuNi44,pure copper
Ni-Cr Alloy wire NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.
Fe-Cr-Al Alloy wire Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,
Cr21Al6Nb,Cr27Al7Mo2,
Cu-Ni-Mn Alloy wire CuMn12Ni2,CuMn12Ni4,Manganin,
Any copper alloy and nickel alloy is available


Color of enameled insulation:
Red,Green,Yellow,Black,Blue,Nature etc.

Type of insulation
Insulation-enamelled Name Thermal LevelºC
(working time 2000h)
Code Name GB Code ANSI. TYPE
Polyurethane enamelled wire 130 UEW QA MW75C
Polyester enamelled wire 155 PEW QZ MW5C
Polyester-imide enamelled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200 EIWH
(DFWF)
QZY/XY MW35C
Polyamide-imide enamelled wire 220 AIW QXY MW81C



roduct Name Copper Nickel Alloy CuNi Wire
Product Description Copper Nickel Alloy is mainly made of copper and nickel. The copper and nickel can be melted together no matter what percentage. Normally the resistivity of CuNi alloy will be higher if the Nickel content is larger than Copper content. From CuNi6 to CuNi44, the resistivity is from 0.1μΩm to 0.49μΩm. That will help the resistor manufacture choosing the most suitable alloy wire.
Product Features By the way, the Copper Nickel wire is easy to be welded and easy to be fabricated, so it can be made into many forms and widely used in all areas.

Selfbonding Enameled Wire CuNi6 0.08mm For Winding Transformer 0
