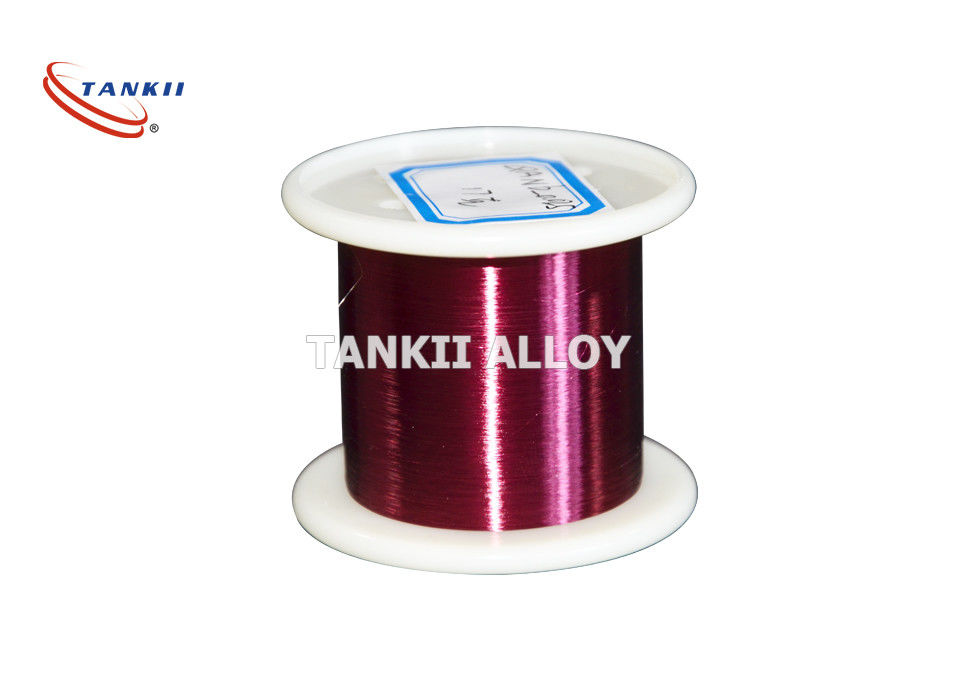

K Type E Type T Type Thermocouple Enamelled Wire / Rod

Product Details

Place of Origin: Shanghai

Brand Name: Tankii

Certification: DIN, ASTM, JIS

Model Number: K type E type T type

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: 15-25$

Packaging Details: spool ,coil, or as clients' requirement

Delivery Time: 25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000T/month

Get Best Price
Contact Now
Specifications
Highlight:

T Type Thermocouple Wire

,

K Type Enamelled Wire

,

Insulated Enamel Coated Wire

Insulation Material:
Enameled
Conductor Material:
Copper Clad Aluminum
Application:
Heating
Conductor Type:
Solid
Type:
Insulated
Color:
As Required
Thermal Class:
130,155,180
Shape:
Wire
Rated Voltage:
300/500V
MOQ:
20KG
Insulation Material:
Enameled
Conductor Material:
Copper Clad Aluminum
Application:
Heating
Conductor Type:
Solid
Type:
Insulated
Color:
As Required
Thermal Class:
130,155,180
Shape:
Wire
Rated Voltage:
300/500V
MOQ:
20KG
Description
K Type E Type T Type Thermocouple Enamelled Wire / Rod

Product Description
K type E type T type Thermocouple wire / rod/ enamelled wire/ ribbon wire/ insulated wire


A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple reference tables to calculate the temperature.

NiCr- CuNi thermocouple wire (type E) is also named NiCr-Constantan thermocouple. It has a stronger signal & higher accuracy than the Type K or Type J at moderate temperature ranges of 1,000F and lower. The type E is also more stable than the type K, which adds to its accuracy.

Type E thermocouple wire has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300ºC, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases.

Application of thermocouple wire:
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting


Parameters of thermocouple wire

Chemical Composition
Conductor Name
Polarity
Code
Nominal Chemical Composition /%
Ni
Cr

Cu
NiCr
Positive
EP
90
10
--
Cu-Ni(Constantan)
Negative
EN
45
--
55
Working Temperature Range

Diameter/mm

Long time Working temperature /ºC

Short period Working temperature /ºC

0.3, 0.5

350

450

0.8, 1.0, 1.2

450

550

1.6, 2.0

550

650

2.5

650

750

3.2

750

900





Company Profile



Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
