Enameled Ni80Cr20 Nichrome Wire 0.02-1.5mm Resistance Alloy

Name: Enameled Ni80Cr20 Nichrome Wire 0.02-1.5mm Resistance Alloy
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Enameled Ni80Cr20
Price: 30 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: tankii

Certification: -

Model Number: Enameled Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: USD30/kg

Packaging Details: case

Delivery Time: 10-15Days

Payment Terms: T/T

Supply Ability: 50000ton/year-

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                    Ni80Cr20 nichrome wire, Enameled Ni80Cr20 Alloy Wire


Size:

0.02-1.5mm

Colour:

Golden Yellow Red Etc.

Size:	0.02-1.5mm
Colour:	Golden Yellow Red Etc.

Description

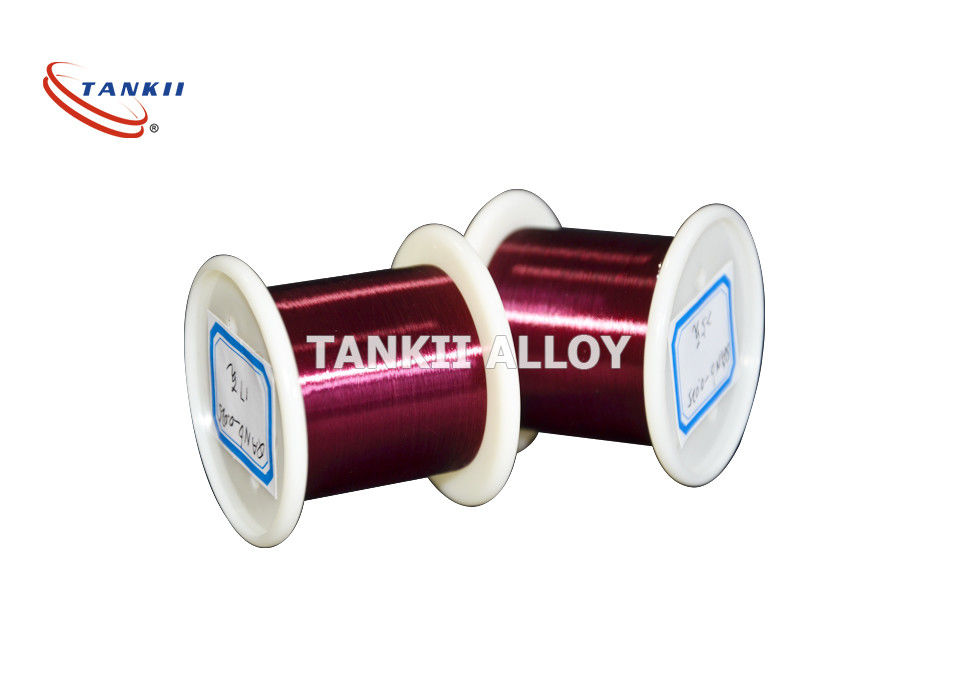

Enameled Ni80Cr20 Nichrome Wire 0.02-1.5mm Resistance Alloy

Enameled Ni80Cr20 Nichrome 80/20 NiCr Resistance Alloy Wire

Product Specifications

Attribute	Value
Size	0.02-1.5mm
Color	Golden yellow, Red, etc.

Product Description

High-quality enameled Ni80Cr20 Nichrome 80/20 NiCr resistance alloy wire designed for precision applications requiring stable electrical resistance and thermal performance.

Type of Insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Dimension of Insulation

D mm	Min thickness of insulation		Max OD of Enameled
	I	II	I	II
0.02	0.005	0.009	0.09	0.036
0.022	0.005	0.019	0.032	0.038
0.025	0.006	0.010	0.036	0.042
1.500	0.059	0.090	1.605	1.654

Product Images
