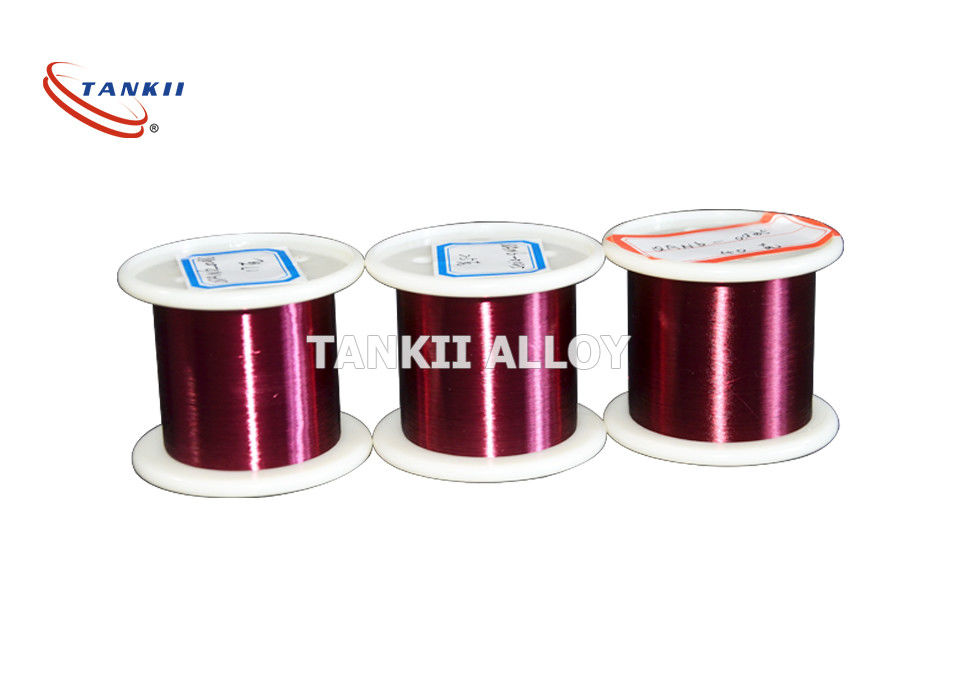

Single/ Composite Insulation Coating Enamelled Wire N4 N6 Pure Nickel Wire

Single/ Composite Insulation Coating Enamelled Wire N4 N6 Pure Nickel Wire
Single/ Composite Insulation Coating Enamelled Wire N4 N6 Pure Nickel Wire Single/ Composite Insulation Coating Enamelled Wire N4 N6 Pure Nickel Wire

Large Image :  Single/ Composite Insulation Coating Enamelled Wire N4 N6 Pure Nickel Wire

Product Details:
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: Nickel 200/Nickel Alloy 200/N6
Payment & Shipping Terms:
Minimum Order Quantity: 10kg
Price: USD28-30/kg
Packaging Details: usually packed on the spool, film cover on the wire, all the spool putted in the carton, then put the carton on the wooden pallet or in the wooden case
Delivery Time: 7-10 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200ton/Year

Single/ Composite Insulation Coating Enamelled Wire N4 N6 Pure Nickel Wire

Description
Material: Pure Nickel Shape: Round Wire
Color: Bright Temper: Soft
Package: Packed On The Spool Application: Fuse In The Lighting
Density: 8.9 Melting Point: 1453
Boiling Point: 2732
High Light:

Insulation Coating Enamelled Wire

,

Composite Nickel Enamelled Wire

,

N6 Enamelled Winding Wire

Pure Nickel Wire N4 N6 Single/ Composite Insulation Coating Enameled Wire



Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare alloy wire

Copper-nickel alloy wire, Constantan Wire,CuNi1~CuNi44
Ni-Cr Alloy wire NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.
Fe-Cr-Al Alloy wire Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,
Cr21Al6Nb,Cr27Al7Mo2,
Cu-Ni-Mn Alloy wire CuMn12Ni2,CuMn12Ni4,Manganin
Stainless steel Wire
Silver Purity 9.99%
golden Wire
Any copper alloy and nickel alloy is available



Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.


Type of insulation

Insulation-enamelled Name Thermal LevelºC
(working time 2000h)
Code Name   ANSI. TYPE
Polyurethane enamelled wire 130 UEW   MW75C
Polyester enamelled wire 155 PEW   MW5C
Polyester-imide enamelled wire 180 EIW   MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200 EIWH
(DFWF)
  MW35C
Polyamide-imide enamelled wire 220 AIW   MW81C


Style of supply

Alloys Name Type Dimension
Enameled-W Wire D=0.018mm~1.2mm
Enameled-R Ribbon W=0.4~24 T=0.01~0.2mm


Dimension of insulation

D
mm
Min thickness of insulation Max OD of Enameled
I II I II
0.02 0.005 0.009 0.09 0.036
0.022 0.005 0.019 0.032 0.038
0.025 0.006 0.010 0.036 0.042
0.028 0.006 0.010 0.039 0.045
0.030 0.006 0.011 0.042 0.048
0.032 0.006 0.011 0.044 0.050
0.036 0.007 0.012 0.049 0.055
0.040 0.007 0.012 0.053 0.060
0.045 0.008 0.013 0.059 0.066
0.050 0.008 0.014 0.064 0.072
0.056 0.009 0.015 0.071 0.079
0.060 0.009 0.016 0.076 0.084
0.063 0.009 0.016 0.080 0.088
0.071 0.010 0.017 0.089 0.097
0.080 0.011 0.018 0.099 0.108
0.090 0.012 0.019 0.111 0.120
0.100 0.012 0.021 0.122 0.132
0.112 0.012 0.021 0.135 0.146
0.125 0.014 0.023 0.150 0.161
0.140 0.015 0.024 0.166 0.179
0.150 0.016 0.025 0.177 0.191
0.160 0.017 0.028 0.188 0.202
0.180 0.018 0.028 0.210 0.225
0.200 0.019 0.030 0.231 0.248
0.224 0.021 0.032 0.258 0.275
0.250 0.022 0.034 0.285 0.304
0.280 0.024 0.036 0.318 0.338
0.300 0.025 0.037 0.339 0.360
0.315 0.026 0.038 0.356 0.376
0.355 0.027 0.041 0.398 0.420
0.400 0.028 0.043 0.445 0.468
0.450 0.030 0.048 0.498 0.524
0.500 0.031 0.049 0.551 0.578
0.560 0.034 0.052 0.615 0.643
0.600 0.035 0.054 0.657 0.686
0.630 0.038 0.056 0.689 0.718
0.710 0.038 0.059 0.773 0.805
0.00 0.041 0.062 0.869 0.902
0.900 0.043 0.066 0.973 1.010
1.000 0.048 0.070 1.079 1.117
1.120 0.049 0.074 1.205 1.247
1.250 0.053 0.080 1.343 1.387
1.400 0.058 0.085 1.499 1.548
1.500 0.059 0.090 1.605 1.654
