Mineral Insulated SS316 Thermocouple Cable with Solid / Stranded Conductor type

Mineral Insulated SS316 Thermocouple Cable with Solid / Stranded Conductor type
Mineral Insulated SS316 Thermocouple Cable with Solid / Stranded Conductor type Mineral Insulated SS316 Thermocouple Cable with Solid / Stranded Conductor type Mineral Insulated SS316 Thermocouple Cable with Solid / Stranded Conductor type

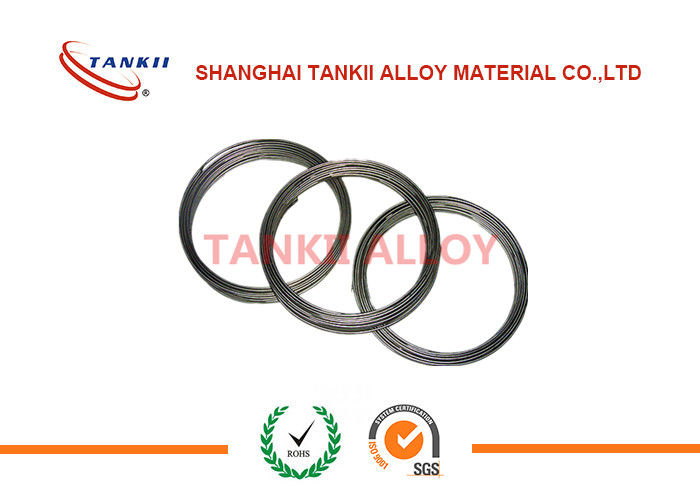

Large Image :  Mineral Insulated SS316 Thermocouple Cable with Solid / Stranded Conductor type

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: KX / JX / TX
Payment & Shipping Terms:
Minimum Order Quantity: 100 Meters
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal,
Supply Ability: 1000Ton per week

Mineral Insulated SS316 Thermocouple Cable with Solid / Stranded Conductor type

Description
Color: Bright Color Insulation Material: PVC/PFA/PTFE/FB/Silicone Rubber
Conductor Type: Solid/Stranded Standard: GB/IEC/ANSI/BS/DIN/JIS
Item: Mineral Insulated SS316 Thermocouple Cable With Solid / Stranded Conductor Type
High Light:

type k thermocouple wire

,

thermocouple cable k type


Mineral Insulated by SS316 Thermocouple extension wire MI cable Single core multicore Type K Thermocouple Wire

The thermocouple cable can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 ‘Alloy wires of extension and compensating cables for thermocouples’ (Chinese National Standard), and also IEC584-3 ‘Thermocouple part 3-compensating wire’ (International standard).

The representing of the compensation / extension. wire:
  thermocouple code+C/X , e.g. SC, KX
X: Short for extension, means that the compensation wire's alloy is as the same as the the alloy of the thermocouple
C: Short for compensation, means that the compensation wire's alloy has similar characters with the thermocouple's alloy in a certain temperature range.

Besides, MI cable, armoured cable, enamelled wire can be produced as per your request.

Application Range:

Heating – Gas burners for ovens
• Cooling – Freezers
• Engine protection – Temperatures and surface temperatures
• High temperature control – Iron casting

Mineral Insulated inconel 600 SS316 MI cable Thermocouple extension wire Single or multi Leads Type T Thermocouple Wire
Detailed Description on thermocouple cable

Thermocouple Code Comp. Type Comp. Wire Name Positive Negative
Name Code Name Code
S SC copper-constantan 0.6 copper SPC constantan 0.6 SNC
R RC copper-constantan 0.6 copper RPC constantan 0.6 RNC
K KCA Iron-constantan22 Iron KPCA constantan22 KNCA
K KCB copper-constantan 40 copper KPCB constantan 40 KNCB
K KX Chromel10-NiSi3 Chromel10 KPX NiSi3 KNX
N NC Iron-constantan 18 Iron NPC constantan 18 NNC
N NX NiCr14Si-NiSi4Mg NiCr14Si NPX NiSi4Mg NNX
E EX NiCr10-Constantan45 NiCr10 EPX Constantan45 ENX
J JX Iron-constantan 45 Iron JPX constantan 45 JNX
T TX copper-constantan 45 copper TPX constantan 45 TNX

The color of Insulation and Sheath
Type Insulation Color Sheath Color
Positive Negative G H
/ S / S
SC/RC RED GREEN BLACK GRAY BLACK YELLOW
KCA RED BLUE BLACK GRAY BLACK YELLOW
KCB RED BLUE BLACK GRAY BLACK YELLOW
KX RED BLACK BLACK GRAY BLACK YELLOW
NC RED GRAY BLACK GRAY BLACK YELLOW
NX RED GRAY BLACK GRAY BLACK YELLOW
EX RED BROWN BLACK GRAY BLACK YELLOW
JX RED PURPLE BLACK GRAY BLACK YELLOW
TX RED WHITE BLACK GRAY BLACK YELLOW
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign











































Thermocouple cable

MI cable
Mineral Insulated SS316 Thermocouple Cable with Solid / Stranded Conductor type 0
