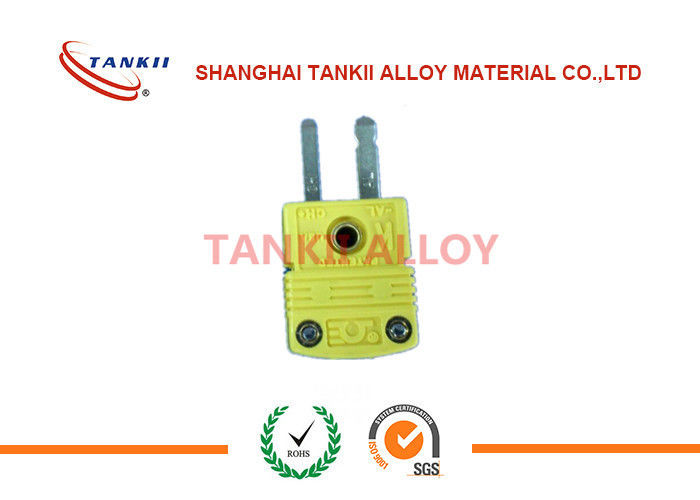

ANSI Standard several colors Miniature thermocouple connector / plug type J / B / R / S / K

ANSI Standard several colors Miniature thermocouple connector / plug type J / B / R / S / K

Quick Details

Thermocouple connectors are specifically designed to allow thermocouples to be quickly connected and disconnected from the extension wire. The connector pair is composed of a male plug and female jack. The male plug will have two pins for single thermocouples and four pins for dual thermocouples. RTD temperature sensors will have three pins. Thermocouple plugs and jacks are manufactured with thermocouple alloys to insure accuracy through out the thermocouple circuit. Thermocouple Type R, S, B connectors use compensating alloys.

Thermocouple connectors have two types of pins. The standard sized male plugs have polarized round pins. The polarized pins prevent mismatched connections. Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks. The male mini thermocouple plugs have smaller flat polarized plugs.

Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application. High Purity Alumina Ceramic Thermocouple Connectors are also available for high temperature applications up to 650℃.

All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.

STANDARD THERMOCOUPLE CONNECTOR SPECIFICATIONS

1. Solid Pin Design
2. High Quality Thermoplastic body
3. Polarized Round pins made from Thermocouple Alloys
4. Central cover screw design for quick wiring
5. Molded barriers to prevent short circuit of conductors
6. Captive cover screw for easy assembly
7. Easy wire connection through sandwich construction
8. Stainless Steel Screws
9. Molded barriers to prevent short circuit

10. Available in all calibrations; Type B, E, J, K, N, R, S, T

Connector Color

Pack and delivery:

Packing: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm GW:22kg

Delivery: About 7 days

Product Picture

Our Company

Shanghai Tankii Alloy Material Co., Ltd. specialized in production of thermocouple wires, thermocouple ribbon wire, thermocouple strips, thermocouple rods, thermocouple enamelled wire and thermocouple extension cables.

Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.

We are willing to establish strong and long-time partnership with our customers.
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business.

Welcome to call me or email to me for more information on thermocouple connectors.
