Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ROHS,SGS
Model Number: Manganin
Payment & Shipping Terms
Minimum Order Quantity: 5kg
Packaging Details: in Spool
Payment Terms: L/C, T/T, Western Union
Insulaltion: |
Enamelled |
Temper Class: |
:133℃,150℃180℃,200℃,220℃ |
Colour Of Enamelled: |
Black,Red,Nature,Blue,Green,yellow |
Bare Conductor: |
Constantan |
Shape: |
Round Wire,Flat Wire |
Application: |
Precision Resistor |
Insulaltion: |
Enamelled |
Temper Class: |
:133℃,150℃180℃,200℃,220℃ |
Colour Of Enamelled: |
Black,Red,Nature,Blue,Green,yellow |
Bare Conductor: |
Constantan |
Shape: |
Round Wire,Flat Wire |
Application: |
Precision Resistor |
Product Description

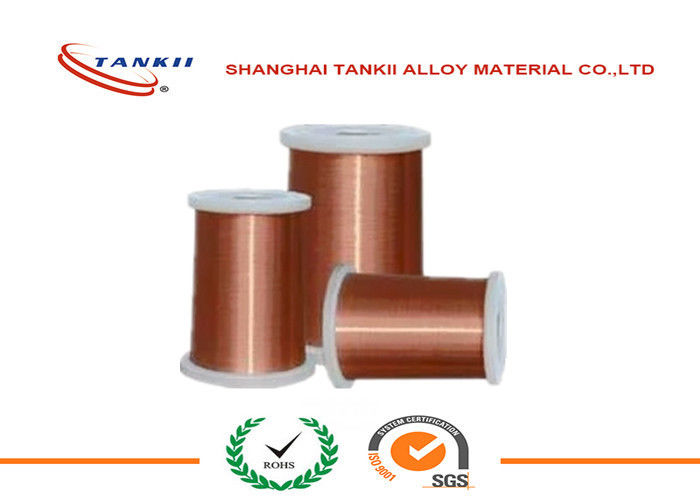

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Manganin,Constantan
Constantan 6J40 | New Constantan |
Normal Manganin |
Manganin |
Shunt Manganin |
||
6J11 | 6J12 | 6J8 | 6J13 | |||
Main Chemical Elements % | Mn | 1~2 | 10.5~12.5 | 11~13 | 8~10 | 11~13 |
Ni | 39~41 | - | 2~3 | - | 2~5 | |
Cu | REST | REST | REST | REST | REST | |
Al2.5~4.5 Fe1.0~1.6 | Si1~2 | |||||
Temperature Range for Components | 5~500 | 5~500 | 5~45 | 10~80 | 10~80 | |
Density | 8.88 | 8 | 8.44 | 8.7 | 8.4 | |
g/cm3 | ||||||
Resistivity | 0.48 | 0.49 | 0.47 | 0.35 | 0.44 | |
μΩ.m,20 | ±0.03 | ±0.03 | ±0.03 | ±0.05 | ±0.04 | |
Extensibility | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 | |
%Φ0.5 | ||||||
Resistance | -40~+40 | -80~+80 | -3~+20 | -5~+10 | 0~+40 | |
Temperature | ||||||
Quotiety | ||||||
α,10 -6 / | ||||||
Thermoelectromotive | 45 | 2 | 1 | 2 | 2 | |
force to Copper | ||||||
μv/(0~100) |
Tpye of Insulation:
1) Polyester resistance wire , class 130
2) Modified polyester resistance wire , class 155
3) Polyesterimide resistance wire , class 180
4) Polyester (imide) coated with polyamide-imide resistance wire , class 200
5) Polyimide resistance wire , class 220
Tpye of Bare Wire
main property type |
|
Cuni1 |
CuNI2 |
CuNI6 |
CuNi8 |
CuNI10 |
CuNi14 |
CuNi19 |
CuNi23 |
CuNi30 |
CuNi34 |
CuNI44 |
|
main chemical composition |
Ni |
1 |
2 |
6 |
8 |
10 |
14.2 |
19 |
23 |
30 |
34 |
44 |
|
|
MN |
/ |
/ |
/ |
/ |
/ |
0.3 |
0.5 |
0.5 |
1.0 |
1.0 |
1.0 |
|
|
CU |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
rest |
|
max working temperature |
|
/ |
200 |
220 |
250 |
250 |
300 |
300 |
300 |
350 |
350 |
400 |
|
density g/cm3 |
|
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
8.9 |
|
resistivity at 20 °c |
|
0.03 ± 10% |
0.05± 10% |
0.10± 10% |
0.12± 10% |
0.15± 10% |
0.20± 5% |
0.25± 5% |
0.30± 5% |
0.35± 5% |
0.40± 5% |
0.49± 5% |
|
temperature coefficient of resistance |
|
<100 |
<120 |
<60 |
<57 |
<50 |
<38 |
<25 |
<16 |
<10 |
-0 |
<-6 |
|
tensile strength mpa |
|
>210 |
>220 |
>250 |
>270 |
>290 |
>310 |
>340 |
>350 |
>400 |
>400 |
>420 |
|
elongation |
|
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
>25 |
|
melting point °c |
|
1085 |
1090 |
1095 |
1097 |
1100 |
1115 |
1135 |
1150 |
1170 |
1180 |
1280 |
|
coefficient of conductivity |
|
145 |
130 |
92 |
75 |
59 |
48 |
38 |
33 |
27 |
25 |
23 |
Type Of Bare Alloy Wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size
