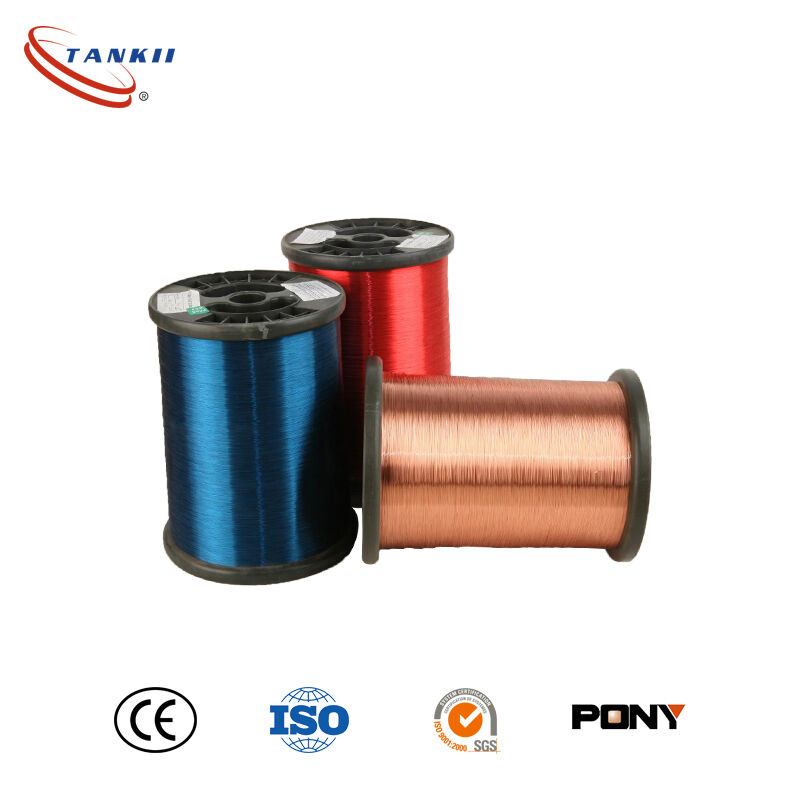

Enameled Manganin Wire 6J12 6J13 for Precision Resistors and Medical Electronics

Name: Enameled Manganin Wire 6J12 6J13 for Precision Resistors and Medical Electronics
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 6J12 / 6J13 Manganin
Price: 31.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 6J12 / 6J13 Manganin

Payment & Shipping Terms

Minimum Order Quantity: 1kg

Price: negotiation

Packaging Details: Cardboard packaging+wooden box

Delivery Time: 10-30days

Payment Terms: T/T

Supply Ability: 500kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                              Enameled Manganin resistance wire 6J12, Precision resistors Manganin wire, Enameled wire 6J13 for resistors


Description

Enameled Manganin Wire 6J12 6J13 for Precision Resistors and Medical Electronics

Product Description

Enameled Manganin Wire /Insulated Manganin Wire (6J12 / 6J8/6J11/ 6J13)

Material: CuNi1, CuNi2, CuNi4, CuNi6, CuNi8, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44, constantan, manganin, karma in form of wire/ribbon
Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2~5	11~13	0.5(max)	micro	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	0-45ºC
Resisivity at 20ºC	0.47±0.03ohm mm2/m
Density	8.44 g/cm3
Thermal Conductivity	-3~+20KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC	-2~+2α×10-6/ºC(Class0)
	-3~+5α×10-6/ºC(Class1)
	-5~+10α×10-6/ºC(Class2)
Melting Point	1450ºC
Tensile Strength(Hard)	635 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft	340~535
Elongation	15%(min)
EMF vs Cu, μV/ºC (0~100ºC)	1
Micrographic Structure	austenite
Magnetic Property	non
Micrographic Structure	Ferrite
Magnetic Property	Magnetic

Application of Manganin
Manganin foil and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability.
Common temperature classes are 130, 155, 180, 200, 220C
Enamelled Wire diameter: 0.02 mm~1.8mm round
Detailed Description Manganin foil and wire is used in the manufactur of resistor, particularly ammeter shunts, because of its virtually zero temperature coefficient of resistance value and long term stability.

Enameled wire is a wire coated with a thin layer of insulation to prevent the wire surfaces from being in a short circuit when wound into coils. Magnetic flux is created when current flows through the coil. It is used mainly in the construction of motors, electromagnets, transformers and inductors. For ease of manufacturing inductive components like transformers and inductors, most of these wires can be soldered.

Enameled wires are classified by their diameter (AWG gauge number or millimetres), temperature class and insulation thickness. A thicker insulation layer results in a higher breakdown voltage (BDV). Common temperature classes are 130, 155, 180 and 200 ° C.

Due to the different characteristics of metal wire, wire enamelled coated with the different production processes, in the years of production practice, gradually we formed in the different needs of different materials coated enamelled techniques, especially in resistance wire, we can provide all kinds of production for resistance potentiometer constantan enameled wire, nichrome enameled wire, and kamar enameled wire, etc. We also in platinic gold, silver, gold plating coating on a successful experience in production. We can customize various special metal wire enameled wire. Its purpose is not confined to the resistance and the potentiometer production materials, such as sensors, etc.
