IEC Standard 6 Pairs 8 Pairs K-Type Thermocouple Cable Yellow And Red Used For Heating Equipment
Product Description:
Thermocouples are commonly used for temperature measurement in heaters and are the standard temperature measurement method in industrial/electric heating equipment.
I. Why Thermocouples are the First Choice for Heaters?
High Temperature Resistance: From low temperatures to thousands of degrees Celsius (K type 0-1250℃, N type even higher), suitable for electric heating elements, air ducts, furnace bodies, mold temperature controllers, ovens, and injection molding heating coils.
Fast Response: Contact temperature measurement, rapid heating and cooling, suitable for constant temperature control.
Durable and Robust: Armored structure resists vibration and high-temperature oxidation, suitable for long-term continuous heating conditions.
Compatible with Temperature Controllers: Standard temperature controllers directly support K, E, J, and PT100; simply connect and use.
II. Which Heaters Require Thermocouples?
Industrial electric heating elements, heating coils, ceramic heaters
Hot air heaters, duct-type electric heaters
Injection molding machines, extruders, mold heating
High-temperature ovens, industrial electric furnaces, heat treatment furnaces
Conductor materials:

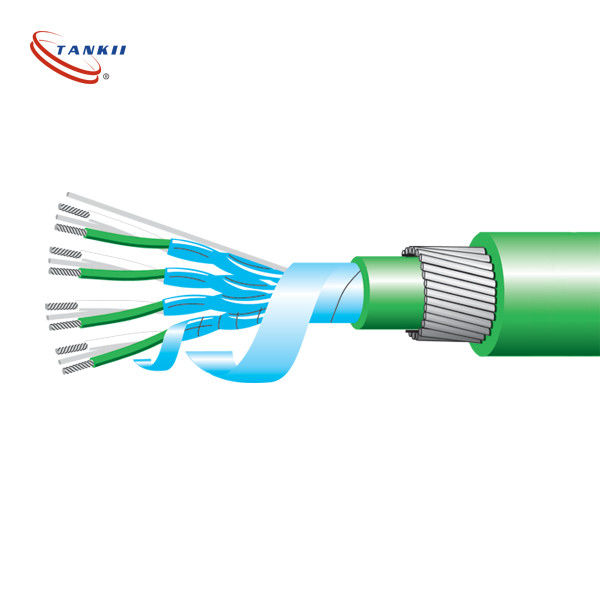

Thermocouple cables come in several variations, primarily distinguished by their insulation materials and construction to suit different environmental conditions and applications.
Here are the main types:
- PVC Insulated: Suitable for general-purpose applications with moderate temperature ranges.
- Fiberglass Insulated: Used for higher temperature applications, offering better heat resistance.
- PTFE Insulated: Ideal for applications requiring chemical resistance and flexibility in low to moderate temperatures.
- Silicone Insulated: Provides good flexibility and heat resistance, often used in high-temperature environments.
- Mineral Insulated (MI): Features a metal sheath with magnesium oxide insulation, suitable for high temperatures, harsh environments, and where mechanical protection is needed.
Each type is chosen based on specific operational requirements, such as temperature range, chemical exposure, and mechanical durability.
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
Thermocouple Extension Wire |
| Cable Type |
Extension or Compensation cable |
| Connector Type |
Miniature, Micro, Etc. |
| Insulation |
FEP/PFA/ fiberglass /PVC, Silicone, Etc. |
| Cable Length |
100m, 200m, 300m |
| Voltage Rating |
220V |
| Cable Color |
Chinese /USA/ JIS/ Germany/ IEC color coding available, |
| Connector Material |
K, J, T, E, N, Etc. |
| Temperature Range |
Up to 1000℃ |
FAQ:
Q: What is the brand name of this Thermocouple Cable?
A: The brand name of this Thermocouple Cable is Tankii.
Q: What are the different model numbers available for this Thermocouple Cable?
A: The different model numbers available for this Thermocouple Cable are KX/KC, JX, EX, TX, NX, SC
Q: Where is this Thermocouple Cable manufactured?
A: This Thermocouple Cable is manufactured in China.
Q: What are the temperature ranges supported by this Thermocouple Cable?
A: The temperature ranges supported by this Thermocouple Cable vary depending on the model number. Please refer to the product specifications for more information.
Q: Is this Thermocouple Cable suitable for use in harsh industrial environments?
A: Yes, this Thermocouple Cable is designed to be durable and reliable in harsh industrial environments.
