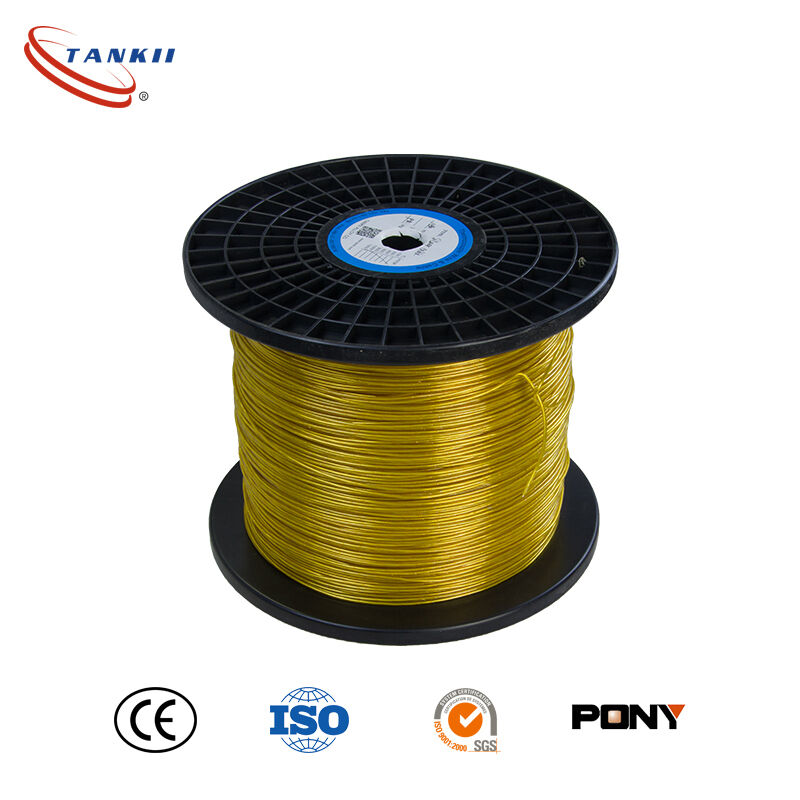

Enameled pure nickel wire dia0.08mm 240℃ for winding of automotive micro sensor components

Name: Enameled pure nickel wire dia0.08mm 240℃ for winding of automotive micro sensor components
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Enameled wire
Price: 31.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001 Rohs

Model Number: Enameled wire

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: wooden case

Delivery Time: 15-25days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000tons per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Model NO.:	Enameled Pure Nickel Wire	Purity:	>99.95%
Type:	Enameled Wire	Size:	0.01-10mm
Surface:	Bright	State:	Bright Annealed
Package:	Wooden Case

Model NO.:	Enameled Pure Nickel Wire
Purity:	>99.95%
Type:	Enameled Wire
Size:	0.01-10mm
Surface:	Bright
State:	Bright Annealed
Package:	Wooden Case

Description

Enameled pure nickel wire dia0.08mm 240℃ for winding of automotive micro sensor components

General Description
Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
Chemical Composition

Alloy	Ni%	Mn%	Fe%	Si%	Cu%	C%	S%
Nickel 200	Min 99.2	Max 0.35	Max 0.4	Max 0.35	Max 0.25	Max 0.15	Max 0.01

Physical Data

Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Typical Mechanical Properties

Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

Our Production Standard

	Bar	Forging	Pipe	Sheet/Strip	Wire
ASTM	ASTM B160	ASTM B564	ASTM B161/B163/B725/B751	AMS B162	ASTM B166
