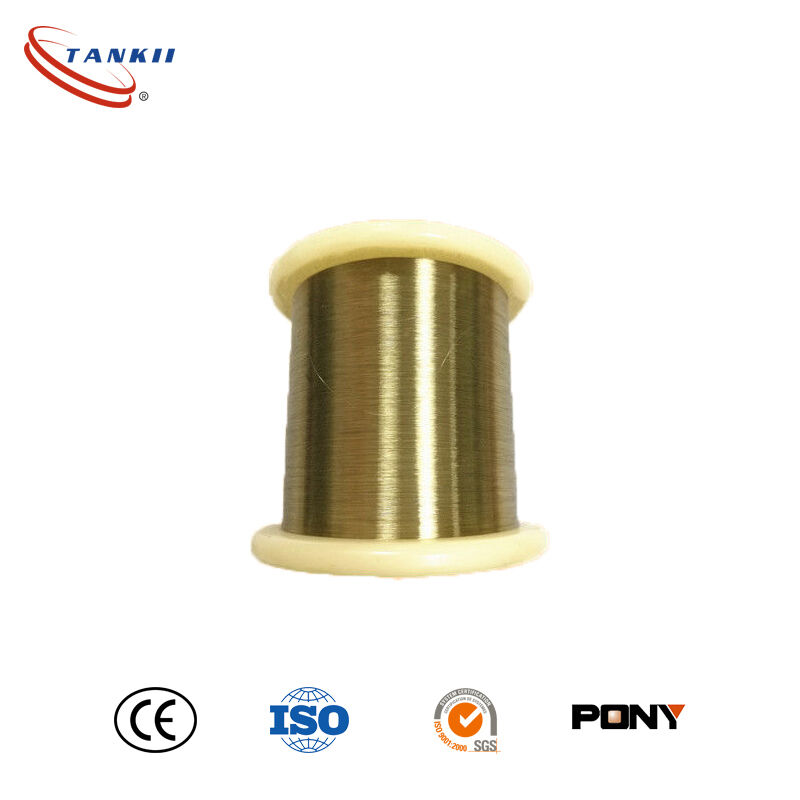

Enameled Ni80Cr20 wire 0.015mm with good insulation performance

Name: Enameled Ni80Cr20 wire 0.015mm with good insulation performance
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Enameled wire
Price: 31.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: Enameled wire

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: Carton box

Delivery Time: 15-25days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100tons per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Model NO.:	Enameled Ni80Cr20	Conductor Material:	Ni80Cr20
Insulation Material:	PAI ,PEI ,PI	Diameter:	0.015mm -8mm
Temperature:	130/155/180/200/220/240	Application:	Overhead, Heating
Material Shape:	Round	Certification:	ISO9001, CE, CCC, RoHS

Model NO.:	Enameled Ni80Cr20
Conductor Material:	Ni80Cr20
Insulation Material:	PAI ,PEI ,PI
Diameter:	0.015mm -8mm
Temperature:	130/155/180/200/220/240
Application:	Overhead, Heating
Material Shape:	Round
Certification:	ISO9001, CE, CCC, RoHS

Description

Enameled Ni80Cr20 wire 0.015mm with good insulation performance

Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare Alloy wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

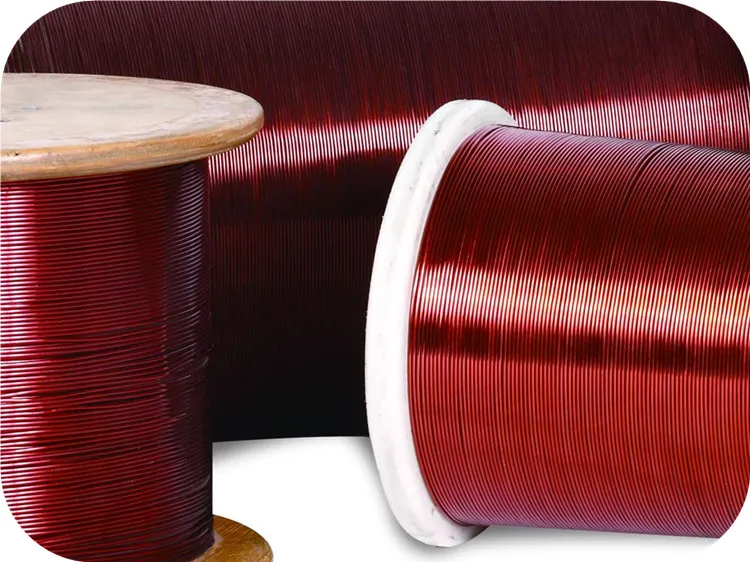

Enameled Ni80Cr20 wire 0.015mm with good insulation performance 0

Enameled Ni80Cr20 wire 0.015mm with good insulation performance 1
