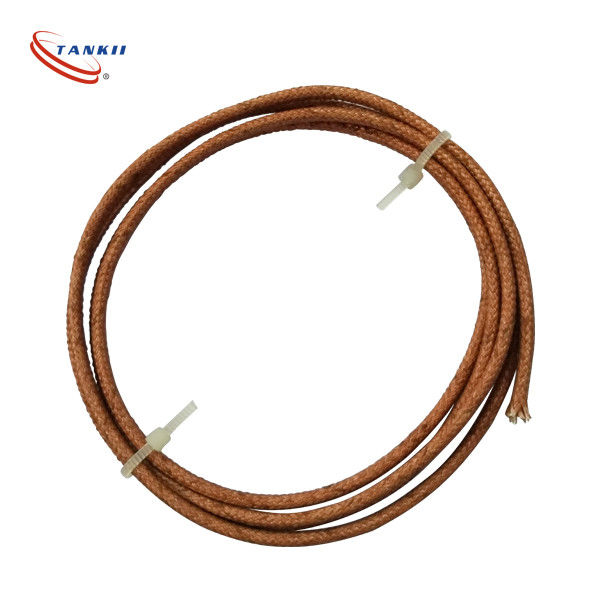

T Type Thermocouple Wire 24AWG Precision Grade/Ordinary Grade With Temperature Resistance -60~260 ℃
Product Description:
The function of compensating wires for thermocouples is to extend the thermoelectric electrode, that is, to move the cold end of the thermocouple and connect it with the display instrument to form a temperature measurement system.
This product is produced according to the international standard IEC584-3 "Thermocouples Part 3- Extension Wires".
The insulation layer and protective layer are made of high-quality FEP/PFA/PTFE, and a new process of continuous extrusion is adopted to make the product have excellent acid resistance, alkali resistance, wear resistance, and non flammability.
It can be immersed in oil and water for long-term use.
Conductor materials:
Thermocouple cables come in several variations, primarily distinguished by their insulation materials and construction to suit different environmental conditions and applications.
Here are the main types:
- PVC Insulated: Suitable for general-purpose applications with moderate temperature ranges.
- Fiberglass Insulated: Used for higher temperature applications, offering better heat resistance.
- PTFE Insulated: Ideal for applications requiring chemical resistance and flexibility in low to moderate temperatures.
- Silicone Insulated: Provides good flexibility and heat resistance, often used in high-temperature environments.
- Mineral Insulated (MI): Features a metal sheath with magnesium oxide insulation, suitable for high temperatures, harsh environments, and where mechanical protection is needed.
Each type is chosen based on specific operational requirements, such as temperature range, chemical exposure, and mechanical durability.
Technical Parameters:
| Technical Parameter |
Value |
| Product Name |
Thermocouple Extension Wire |
| Cable Type |
Extension or Compensation cable |
| Connector Type |
Miniature, Micro, Etc. |
| Insulation |
FEP/PFA/ fiberglass /PVC, Silicone, Etc. |
| Cable Length |
100m, 200m, 300m |
| Voltage Rating |
220V |
| Cable Color |
Chinese /USA/ JIS/ Germany/ IEC color coding available, |
| Connector Material |
K, J, T, E, N, Etc. |
| Temperature Range |
Up to 1000℃ |
FAQ:
Q: What is the brand name of this Thermocouple Cable?
A: The brand name of this Thermocouple Cable is Tankii.
Q: What are the different model numbers available for this Thermocouple Cable?
A: The different model numbers available for this Thermocouple Cable are KX/KC, JX, EX, TX, NX, SC
Q: Where is this Thermocouple Cable manufactured?
A: This Thermocouple Cable is manufactured in China.
Q: What are the temperature ranges supported by this Thermocouple Cable?
A: The temperature ranges supported by this Thermocouple Cable vary depending on the model number. Please refer to the product specifications for more information.
Q: Is this Thermocouple Cable suitable for use in harsh industrial environments?
A: Yes, this Thermocouple Cable is designed to be durable and reliable in harsh industrial environments.
