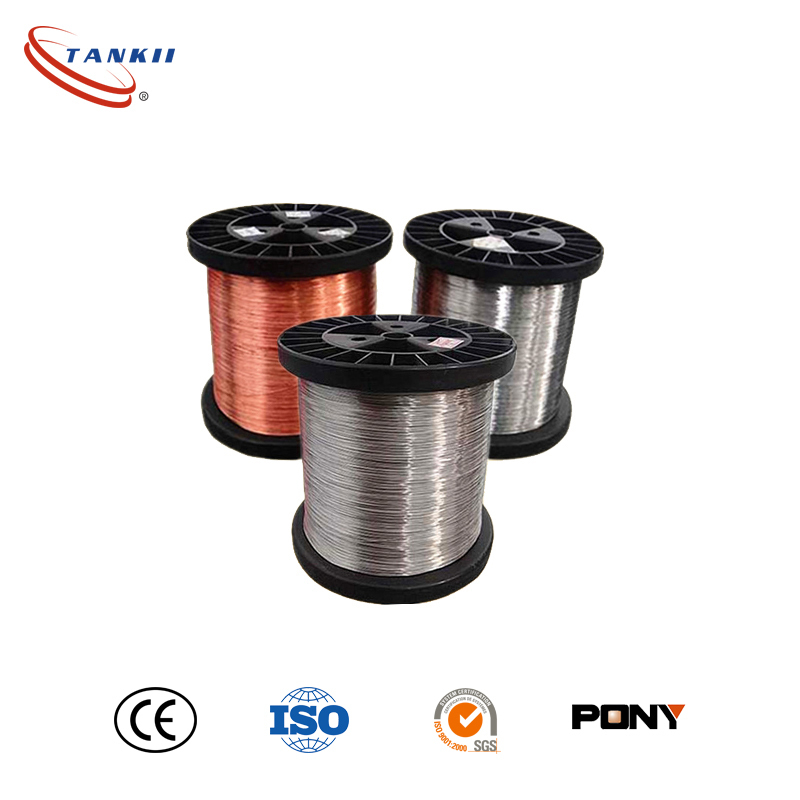

200°C High Temp Manganin Enameled Wire 6J13 for Resistors

Name: 200°C High Temp Manganin Enameled Wire 6J13 for Resistors
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: enameled wire
Price: 31.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: enameled wire

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: negotiated

Packaging Details: case

Delivery Time: 10-15 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 2000 Tons/Year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    200°C high temp enamelled wire, manganin enameled wire for resistors, 6J13 resistor wire with warranty


Application:	Overhead, Heating	Sheath Material:	PEI
Material Shape:	Round Wire	Certification:	ISO9001, CCC, RoHS
Serves:	Samll Order Accepted	Surface:	Bright
Temper Class:	155/ 180 /200 /220	HS Code:	85441100

Application:	Overhead, Heating
Sheath Material:	PEI
Material Shape:	Round Wire
Certification:	ISO9001, CCC, RoHS
Serves:	Samll Order Accepted
Surface:	Bright
Temper Class:	155/ 180 /200 /220
HS Code:	85441100

Description

200°C High Temp Manganin Enameled Wire 6J13 for Resistors

200 ºC High Temperature Resistant Enameled Wire Manganin 6J13

Product Attributes

Attribute	Value
Application	Overhead, Heating
Sheath Material	PEI
Material Shape	Round Wire
Certification	ISO9001, CCC, RoHS
Serves	Small Order Accepted
Surface	Bright
Temper Class	155/180/200/220
HS Code	85441100

Product Description

These enameled resistance wires are widely used for standard resistors, automobile parts, and winding resistors. The insulation processing is optimized for these applications, taking full advantage of the distinctive features of enamel coating.

We also offer enamel coating insulation for precious metal wires such as silver and platinum upon request. Custom production orders are welcome.

Type of Bare Alloy Wire

Available alloy wires for enameling include:

Copper-nickel alloy wire
Constantan wire
Manganin wire
Kama Wire
NiCr Alloy wire
FeCrAl Alloy wire

Type of Insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Chemical Content (%)

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
2~3	11~13	0.5(max)	micro	Bal	-	ND
Cd \| Pb \| Hg \| Cr						ND \| ND \| ND \| ND

Mechanical Properties

Property	Value
Max Continuous Service Temp	0-45ºC
Resistivity at 20ºC	0.47±0.03ohm mm²/m
Density	8.44 g/cm³
Thermal Conductivity	-3~+20KJ/mhºC
Temp Coefficient of Resistance at 20ºC	-2~+2α×10⁻⁶/ºC(Class0) -3~+5α×10⁻⁶/ºC(Class1) -5~+10α×10⁻⁶/ºC(Class2)
Melting Point	1450ºC
Tensile Strength (Hard)	635 Mpa(min)
Tensile Strength, N/mm² Annealed, Soft	340~535
Elongation	15%(min)
EMF vs Cu, μV/ºC (0~100ºC)	1
Micrographic Structure	austenite
Magnetic Property	non
Micrographic Structure	Ferrite
Magnetic Property	Magnetic
