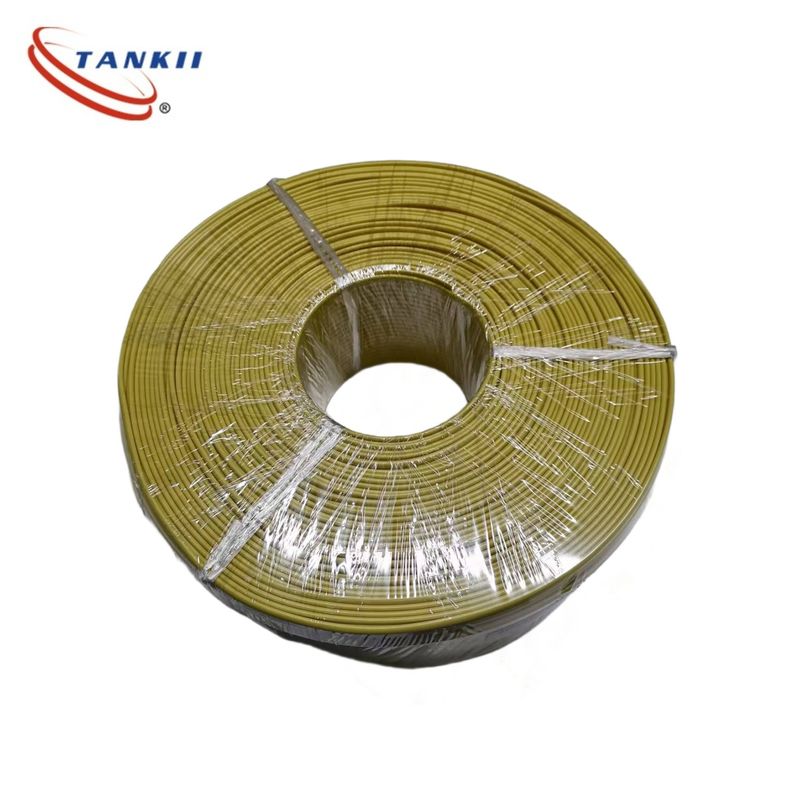

Type K/J/E/T/N/R/S/PT100 FEP PFA PTFE PVC Fiberglass Thermocouple Extension Wire High Temperature Sensor Compensation Cable

Type K/J/E/T/N/R/S/PT100 FEP PFA PTFE PVC Fiberglass Thermocouple Extension Wire High Temperature Sensor Compensation Cable

Product Description:

A specialized thermocouple cable composed of two dissimilar metal wires (e.g., K-type, J-type) joined at one end to form a thermocouple junction, insulated with high-temperature-resistant materials (e.g., fiberglass, ceramic), and often shielded to prevent electromagnetic interference.

Design Features

Conductor materials:

Type K thermocouple cables come in several variations, primarily distinguished by their insulation materials and construction to suit different environmental conditions and applications. Here are the main types:

1. PVC Insulated: Suitable for general-purpose applications with moderate temperature ranges.
2. Fiberglass Insulated: Used for higher temperature applications, offering better heat resistance.
3. PTFE Insulated: Ideal for applications requiring chemical resistance and flexibility in low to moderate temperatures.
4. Silicone Insulated: Provides good flexibility and heat resistance, often used in high-temperature environments.
5. Mineral Insulated (MI): Features a metal sheath with magnesium oxide insulation, suitable for high temperatures, harsh environments, and where mechanical protection is needed.

Each type is chosen based on specific operational requirements, such as temperature range, chemical exposure, and mechanical durability.

Technical Parameters:

Applications:

1. Industrial manufacturing:
   • Metallurgy: In steelmaking, ironmaking, and other metallurgical processes, thermocouple cables are used to monitor the high temperatures in furnaces, such as blast furnaces, electric furnaces, and converters. This helps to control the smelting process and ensure the quality of the metal products.
   • Chemical industry: Chemical reactions often occur under specific temperature conditions. Thermocouple cables are used to measure the temperature in reactors, distillation columns, and other equipment to ensure the normal progress of chemical reactions and the safety of the production process.
   • Ceramics and glass manufacturing: The production of ceramics and glass requires high-temperature firing and melting processes. Thermocouple cables are used to monitor the temperature in kilns and furnaces to control the firing temperature and ensure the quality of the products.
   • Power generation: In power plants, thermocouple cables are used to measure the temperature of boilers, steam turbines, and other equipment to monitor the operating status of the equipment and ensure the safe and efficient operation of the power generation system.
2. Automotive industry: Thermocouple cables are used in the automotive industry to measure the temperature of engine exhaust gases, catalytic converters, and other components. This helps to monitor the performance of the engine and the emission control system, and is also used in the testing and development of new automotive engines.
3. Aerospace industry: In the aerospace field, thermocouple cables are used to measure the temperature of aircraft engines, rocket engines, and other high-temperature components. This is crucial for ensuring the safety and reliability of aerospace vehicles during flight.
4. Food industry: In the food processing industry, thermocouple cables are used to measure the temperature of ovens, sterilization equipment, and other processing equipment to ensure the safety and quality of food processing.
5. Laboratory and scientific research: Thermocouple cables are widely used in laboratories and scientific research institutions for temperature measurement in various experiments and research projects. For example, in material research, chemical experiments, and biological research, thermocouple cables are used to measure the temperature of samples and reaction systems.
6. HVAC systems: In heating, ventilation, and air conditioning systems, thermocouple cables are used to measure the temperature of air, water, and other media to control the operation of the system and ensure the comfort of the indoor environment.

The cables are also available in different configurations, including grounded, ungrounded, and exposed junctions, to suit specific application requirements. Grounded junctions provide faster response times but are more susceptible to electrical noise, while ungrounded junctions offer better electrical isolation but slower response times. Exposed junctions are used when the fastest response time is needed, but they are more vulnerable to damage.

Overall, K type thermocouple cables are a critical component in temperature measurement systems, providing durability, accuracy, and versatility across a wide range of applications.

FAQ:

Q: What is the brand name of this Thermocouple Cable?

A: The brand name of this Thermocouple Cable is Tankii.

Q: What are the different model numbers available for this Thermocouple Cable?

A: The different model numbers available for this Thermocouple Cable are KX/KC, JX, EX, TX, NX, SC

Q: Where is this Thermocouple Cable manufactured?

A: This Thermocouple Cable is manufactured in China.

Q: What are the temperature ranges supported by this Thermocouple Cable?

A: The temperature ranges supported by this Thermocouple Cable vary depending on the model number. Please refer to the product specifications for more information.

Q: Is this Thermocouple Cable suitable for use in harsh industrial environments?

A: Yes, this Thermocouple Cable is designed to be durable and reliable in harsh industrial environments.
