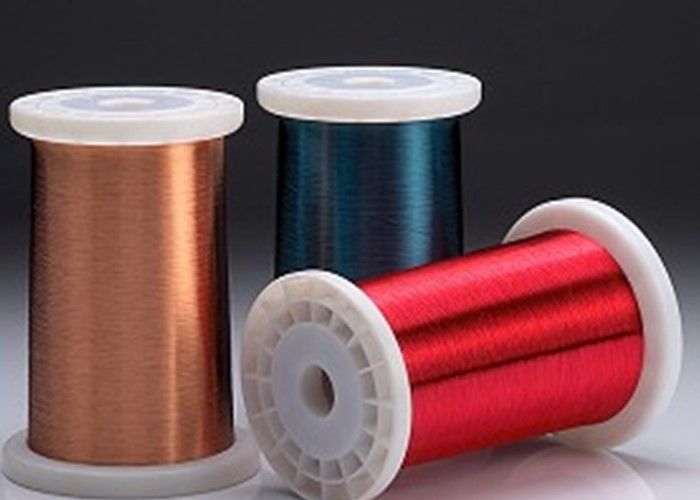

Enamelled Nichrome Wire 0.5mm Swg 28 220 Degree For Resistor

Name: Enamelled Nichrome Wire 0.5mm Swg 28 220 Degree For Resistor
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Enameled wire
Price: 31.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: Enameled wire

Payment & Shipping Terms

Minimum Order Quantity: 1~5kg

Price: Negotiable

Packaging Details: with plastic film wrapped and carton package. As the order quantity and customer requirement.

Delivery Time: 10-15 days after getting the payment

Payment Terms: T/T, Paypal, Western Union, MoneyGram,

Supply Ability: 1000Ton per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    0.5mm Enamelled Nichrome Wire, Resistor Enamelled Nichrome Wire, 220 degree Enamelled Nichrome Wire


Item:	220 Degree Enameled Ni200 Nicr 8020 Wire NIcr6015 Wire From 24AWG To 40AWG	Conductor:	Nicr8020
Application:	Resistance Element, Transformer, Electromagnets	MOQ:	1~5kg As Per The Size
Leading Time:	10~40 Days	Insulation Material:	Enameled By Polyester
Conductor Type:	Solid, Stranded	Color:	Blue

Item:	220 Degree Enameled Ni200 Nicr 8020 Wire NIcr6015 Wire From 24AWG To 40AWG
Conductor:	Nicr8020
Application:	Resistance Element, Transformer, Electromagnets
MOQ:	1~5kg As Per The Size
Leading Time:	10~40 Days
Insulation Material:	Enameled By Polyester
Conductor Type:	Solid, Stranded
Color:	Blue

Description

Enamelled Nichrome Wire 0.5mm Swg 28 220 Degree For Resistor

Enamelled Nichrome Wire 0.5mm Swg 28 220degree for Resistor

Enameled Alloy Wire(NiCr80/20)
Common Name:(enameled Resistor wire,enameled heating wire,enameled wound wire)

Product Description
These enameled resistance wires have been broadly used for standard resistors, High /Low Voltage Resistor automobile parts, winding resistors, etc.Using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order.Please make use of this production-on-order.

Type of bare alloy wire

Copper-nickel alloy wire,	Constantan Wire,CuNi1~CuNi44,pure copper
Ni-Cr Alloy wire	NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.
Fe-Cr-Al Alloy wire	Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2,
Cu-Ni-Mn Alloy wire	CuMn12Ni2,CuMn12Ni4,Manganin,
Any copper alloy and nickel alloy is available

Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI.TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Style of supply

Alloys Name	Type	Dimension
Enameled-W	Wire	D=0.018mm~3mm
Enameled-R	Ribbon	W=0.4~24	T=0.01~0.2mm

Dimension of insulation

D Mm	Min thickness of insulation		Max OD of Enameled
D Mm
0.02	0.005	0.009	0.09	0.036
0.022	0.005	0.019	0.032	0.038
0.025	0.006	0.010	0.036	0.042
0.028	0.006	0.010	0.039	0.045
0.030	0.006	0.011	0.042	0.048
0.032	0.006	0.011	0.044	0.050
0.036	0.007	0.012	0.049	0.055
0.040	0.007	0.012	0.053	0.060
0.045	0.008	0.013	0.059	0.066
0.050	0.008	0.014	0.064	0.072
0.056	0.009	0.015	0.071	0.079
0.060	0.009	0.016	0.076	0.084
0.063	0.009	0.016	0.080	0.088
0.071	0.010	0.017	0.089	0.097
0.080	0.011	0.018	0.099	0.108
0.090	0.012	0.019	0.111	0.120
0.100	0.012	0.021	0.122	0.132
0.112	0.012	0.021	0.135	0.146
0.125	0.014	0.023	0.150	0.161
0.140	0.015	0.024	0.166	0.179
0.150	0.016	0.025	0.177	0.191
0.160	0.017	0.028	0.188	0.202
0.180	0.018	0.028	0.210	0.225
0.200	0.019	0.030	0.231	0.248
0.224	0.021	0.032	0.258	0.275
0.250	0.022	0.034	0.285	0.304
0.280	0.024	0.036	0.318	0.338
0.300	0.025	0.037	0.339	0.360
0.315	0.026	0.038	0.356	0.376
0.355	0.027	0.041	0.398	0.420
0.400	0.028	0.043	0.445	0.468
0.450	0.030	0.048	0.498	0.524
0.500	0.031	0.049	0.551	0.578
0.560	0.034	0.052	0.615	0.643
0.600	0.035	0.054	0.657	0.686
0.630	0.038	0.056	0.689	0.718
0.710	0.038	0.059	0.773	0.805
0.00	0.041	0.062	0.869	0.902
0.900	0.043	0.066	0.973	1.010
1.000	0.048	0.070	1.079	1.117
1.120	0.049	0.074	1.205	1.247
1.250	0.053	0.080	1.343	1.387
1.400	0.058	0.085	1.499	1.548
1.500	0.059	0.090	1.605	1.654

Application:

Applicable to radio, electric light source, mechanical manufacturing, chemical industry, pure nickel wire is an important structural material in vacuum electronic devices, can also be used as a guide wire lead in the bulb.

Welcome to call me or email to me for more information on enamelled wire.
