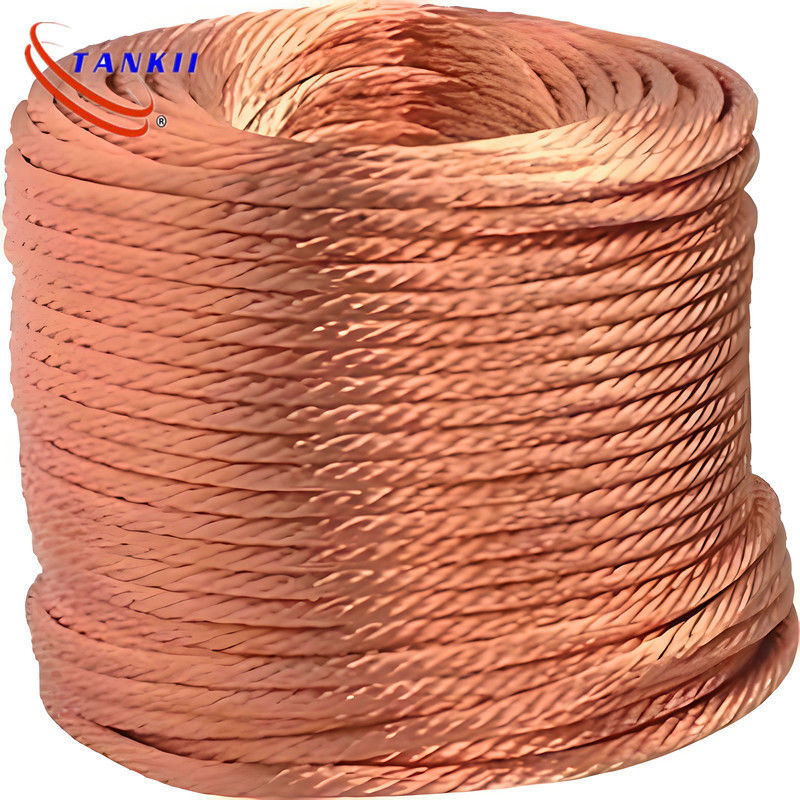

New material 7/19/37 Strands Pure Copper Nickel / Tin Plated Copper Stranded Wire

Name: New material 7/19/37 Strands Pure Copper Nickel / Tin Plated Copper Stranded Wire
Brand: TANKII
SKU: CUNI1......CUNI44
Rating: 4.6 (153 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: CUNI1......CUNI44

Payment & Shipping Terms

Minimum Order Quantity: 100 KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    7/19/37 Stranded Wire, Tin Plated Copper Stranded Wire, Pure Copper Nickel Stranded Wire


Model NO.:	CUNI1 CUNI2......CUNI44	Material:	Copper Nickel Alloy Stranded Wire
Surface:	Bright	Density:	8.9 G/cm3
Strand Type:	7/19/37 Cores	HS Code:	74082200
Production Capacity:	2000 Tons/Year	Melting Point:	1085-1280 ºC

Model NO.:	CUNI1 CUNI2......CUNI44
Material:	Copper Nickel Alloy Stranded Wire
Surface:	Bright
Density:	8.9 G/cm3
Strand Type:	7/19/37 Cores
HS Code:	74082200
Production Capacity:	2000 Tons/Year
Melting Point:	1085-1280 ºC

Description

New material 7/19/37 Strands Pure Copper Nickel / Tin Plated Copper Stranded Wire

Electric Wire Soft Copper nickel Braided Wire twisted Wire Copper Nickel stranded Wire

Copper Nickel Alloy is a high-quality electrical material that offers low electric resistance, excellent heat resistance, and corrosion resistance. It is easy to process and lead welded, making it ideal for various applications in the electrical industry.

CUNI products used in the production of key components for thermal overload relays, low resistance thermal circuit breakers, and electrical appliances, our Copper Nickel Alloy Wire is a reliable choice. It is also widely used in electrical heating cables, making it an essential material for heating systems.

Application:

Low-voltage circuit breakers
Thermal overload relays
Electrical heating cables
Electrical heating mats
Snow melting cables and mats
Ceiling radiant heating mats
Floor heating mats & cables
Freeze protection cables
Electrical heat tracers
PTFE heating cables
Hose heaters
Other low-voltage electrical products

Key Feature:

Low electric resistance
Good heat resistance
Corrosion resistance
Easy to process and lead welded

Copper Nickel Alloy- CuNi2

Chemical Content: CuNi2 is a copper nickel alloy with a chemical content of %.

Product Name: CuNi2/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi34/CuNi40/CuNi44/CuNi45/Electric Copper Nickel Alloy Price Cu-CuNi Thermocouple Constantan Resistance Wire

Keywords: CuNi44 Wire/Copper Nickel Wire/Constantan wire/konstantan Wire/Constantan Wire Price/30 Alloy Resistance Wire/Cuprothal 5 Alloy Wire/T type thermocouple wire/copper Wire/Alloy 230/electric wire/Cu-Ni 2 heating wire/copper nickel alloy wire/heating resistance wire/heating element/electric heating wire/nichrome resistance wire/nickel wire/nickel alloy wire/Cuprothal 5

Characteristic	Resistivity ( 200C μΩ.m)	Max.working Temperature ( 0C)	Tensile Strength (Mpa)	Melting point (0C)	Density ( g/cm3)	TCR x10-6/ 0C (20~600 0C)	EMF vs Cu (μV/ 0C) (0~100 0C)
Alloy Nomenclature
NC005(CuNi2)	0.05	200	≥220	1090	8.9	<120	-12

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2	-	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	200ºC
Resisivity at 20ºC	0.05±10%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	<120
Melting Point	1090ºC
Tensile Strength,N/mm2 Annealed,Soft	140~310 Mpa
Tensile Strength,N/mm2 Cold Rolled	280~620 Mpa
Elongation(anneal)	25%(min)
Elongation(cold rolled)	2%(min)
EMF vs Cu, μV/ºC (0~100ºC)	-12
Micrographic Structure	austenite
Magnetic Property	Non

Copper nickel alloy

Main property		Cuni1	CuNI2	CuNI6	CuNI10	CuNi19	CuNi23	CuNi30	CuNi34	CuNI44
Main chemical composition	Ni	1	2	6	10	19	23	30	34	44
	MN	/	/	/	/	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working Temperature °c		/	200	220	250	300	300	350	350	400
Density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
Resistivity at 20 °c		0.03 ± 10%	0.05 ±10%	0.1 ±10%	0.15 ±10%	0.25 ±5%	0.3 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
Temperature coefficient of Resistance		<100	<120	<60	<50	<25	<16	<10	-0	<-6
Tensile strength Mpa		>210	>220	>250	>290	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25
Melting point °c		1085	1090	1095	1100	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	59	38	33	27	25	23

Product Description
CuNi23Mn low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
23	0.5	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	250ºC
Resisivity at 20ºC	0.35%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	16(Max)
Melting Point	115ºC
Tensile Strength,N/mm2 Annealed,Soft	270~420 Mpa
Tensile Strength,N/mm2 Cold Rolled	350~840 Mpa
Elongation(anneal)	25% (Max)
Elongation(cold rolled)	2% (Max)
EMF vs Cu, μV/ºC (0~100ºC)	-25
Micrographic Structure	austenite
Magnetic Property	Non
