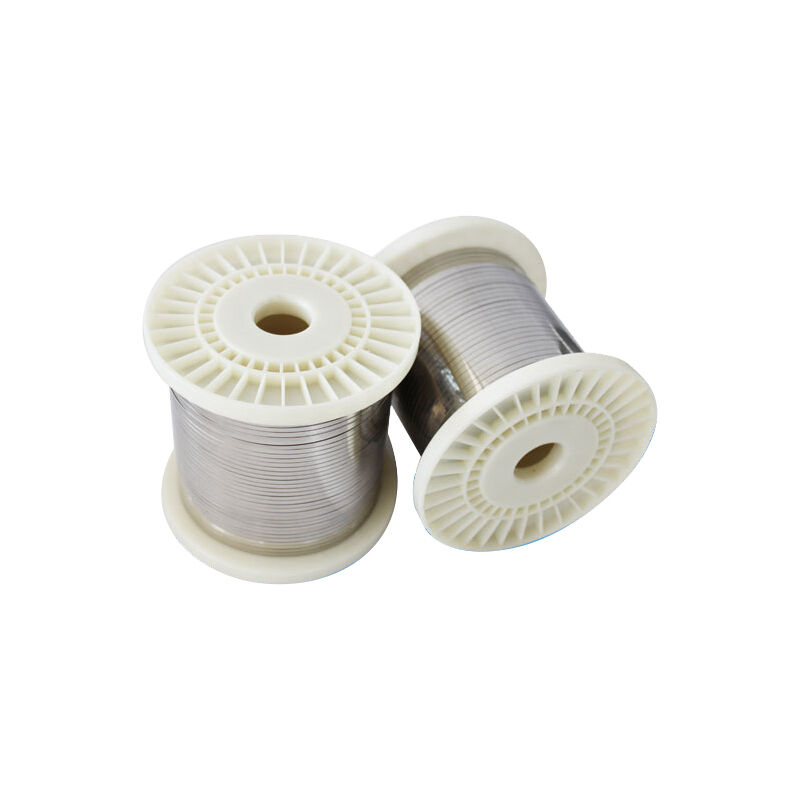

Fecral Alloy Wire (CrAl 23/5) Resistance Wire

Name: Fecral Alloy Wire (CrAl 23/5) Resistance Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CrAl 23/5
Price: 6.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: CrAl 23/5

Payment & Shipping Terms

Minimum Order Quantity: 10Kg

Price: 5-7USD/KG

Packaging Details: case

Delivery Time: 10-15days

Payment Terms: Western Union,T/T,L/C

Supply Ability: 5000Kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Surface Condition:	Bright, Annealed, Soft	Appearance:	Shiny
Density:	7.25	Resistivity:	1.35
Melting Temperature:	1500

Surface Condition:	Bright, Annealed, Soft
Appearance:	Shiny
Density:	7.25
Resistivity:	1.35
Melting Temperature:	1500

Description

Fecral Alloy Wire (CrAl 23/5) Resistance Wire

Fecral Alloy Wire (CrAl 23/5)

Nominal Analysis

23.00 Cr, 5.00 Al, Bal. Fe

Max contineous working temperature: 1250ºC.

Melting Temperature: 1500ºC

Electrical Resistivity: 1.35 ohm mm2/m

This kind of fecral alloy wire is usually used extensively as heating elements in industrial furnaces and electrical kilns.

Has less hot strength than Tophet alloys but much higher melting point.

SHANGHAI TANKII ALLOY MATERIAL CO., LTD

FECRAL AND ALCHROME ALLOY PRODUCER IN CHINA, MOST PROFESSIONAL IN THE WORLD

Specification:

Alloy Type	Diameter	Resistivity	Tensile	Elongation (%)	Bending	Max. Continuous	Working Life
	(mm)	(μΩm)(20°C)	Strength		Times	Service	(hours)
	(mm)	(μΩm)(20°C)	(N/mm²)			Temperature (°C)	(hours)
Cr20Ni80	<0.50	1.09±0.05	850-950	>20	>9	1200	>20000
	0.50-3.0	1.13±0.05	850-950	>20	>9	1200	>20000
	>3.0	1.14±0.05	850-950	>20	>9	1200	>20000
Cr30Ni70	<0.50	1.18±0.05	850-950	>20	>9	1250	>20000
Cr30Ni70	≥0.50	1.20±0.05	850-950	>20	>9	1250	>20000
Cr15Ni60	<0.50	1.12±0.05	850-950	>20	>9	1125	>20000
Cr15Ni60	≥0.50	1.15±0.05	850-950	>20	>9	1125	>20000
Cr20Ni35	<0.50	1.04±0.05	850-950	>20	>9	1100	>18000
Cr20Ni35	≥0.50	1.06±0.05	850-950	>20	>9	1100	>18000
1Cr13Al4	0.03-12.0	1.25±0.08	588-735	>16	>6	950	>10000
0Cr15Al5		1.25±0.08	588-735	>16	>6	1000	>10000
0Cr25Al5		1.42±0.07	634-784	>12	>5	1300	>8000
0Cr23Al5		1.35±0.06	634-784	>12	>5	1250	>8000
0Cr21Al6		1.42±0.07	634-784	>12	>5	1300	>8000
1Cr20Al3		1.23±0.06	634-784	>12	>5	1100	>8000
0Cr21Al6Nb		1.45±0.07	634-784	>12	>5	1350	>8000
0Cr27Al7Mo2	0.03-12.0	1.53±0.07	686-784	>12	>5	1400	>8000

Fecral Alloy Wire (CrAl 23/5) Resistance Wire 0

Fecral Alloy Wire (CrAl 23/5) Resistance Wire 1

Fecral Alloy Wire (CrAl 23/5) Resistance Wire 2

Fecral Alloy Wire (CrAl 23/5) Resistance Wire 3
