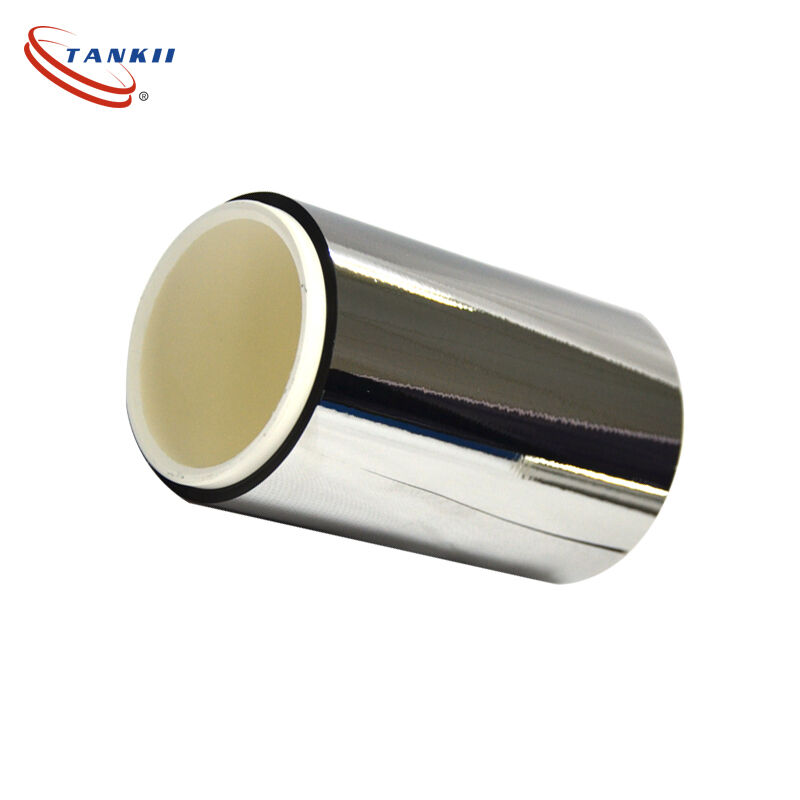

Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip

Name: Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Pure Nickel Foil
Price: 32.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: Pure Nickel Foil

Payment & Shipping Terms

Minimum Order Quantity: 30Kg

Price: 25-40USD/Kg

Packaging Details: case

Delivery Time: 15-30days

Payment Terms: Western Union,T/T

Supply Ability: 500Tons/Kg

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Electrical Resistivity (20°C):	6.97 μΩ·cm	Thermal Conductivity:	90.7 W/m·K
Density:	8.89 - 8.9 G/cm³	Melting Point:	1453°C
Tensile Strength (Annealed):	450 - 550 MPa

Electrical Resistivity (20°C):	6.97 μΩ·cm
Thermal Conductivity:	90.7 W/m·K
Density:	8.89 - 8.9 G/cm³
Melting Point:	1453°C
Tensile Strength (Annealed):	450 - 550 MPa

Description

Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip

Pure Nickel Foil Purity >99.5% / Ultra-thin Battery Grade Nickel Strip

Pure Nickel Foil with purity >99.5% (typically 99.9% to 99.98%) is a critical material in the battery industry, primarily used as current collectors, battery tabs, connectors, and substrates for various battery chemistries. Grades include Nickel 200 (N02200), Nickel 201 (N02201), N4, N6, and ultra-high purity variants.

Grade	Ni+Co (min)	Cu (max)	Fe (max)	Mn (max)	C (max)	Si (max)	S (max)	Purity Level
N4	99.9%	0.015%	0.04%	0.002%	0.01%	0.03%	0.001%	99.9%
N6	99.5%	0.10%	0.10%	0.05%	0.10%	0.10%	0.005%	99.5%
Nickel 200 (N02200)	99.0%	0.25%	0.40%	0.35%	0.15%	0.35%	0.01%	99.0%
Nickel 201 (N02201)	99.0%	0.25%	0.40%	0.35%	0.02%	0.35%	0.01%	99.0%
Ultra-High Purity	99.98%	-	-	-	-	-	-	99.98%

Physical & Electrical Properties

Electrical Resistivity (20°C)	6.97 μΩ·cm
Thermal Conductivity	90.7 W/m·K
Density	8.89 - 8.9 g/cm³
Melting Point	1453°C
Boiling Point	2732°C
Curie Temperature	360°C
Tensile Strength (Annealed)	450 - 550 MPa
Tensile Strength (Cold Rolled)	550 - 800 MPa
Elongation	≥15%
Hardness	90-220 HV

Packaging & Delivery

Packaging	Plastic film + wooden case/pallet; coil packaging
Paper Core ID	Ø200mm, Ø300mm, Ø400mm, Ø500mm, or custom
MOQ	1 kg (samples) to 500 kg (production)
Delivery Time	7-15 days (stock), 15-30 days (custom)
Shipping Ports	Shanghai, Shenzhen, Ningbo, Mumbai
