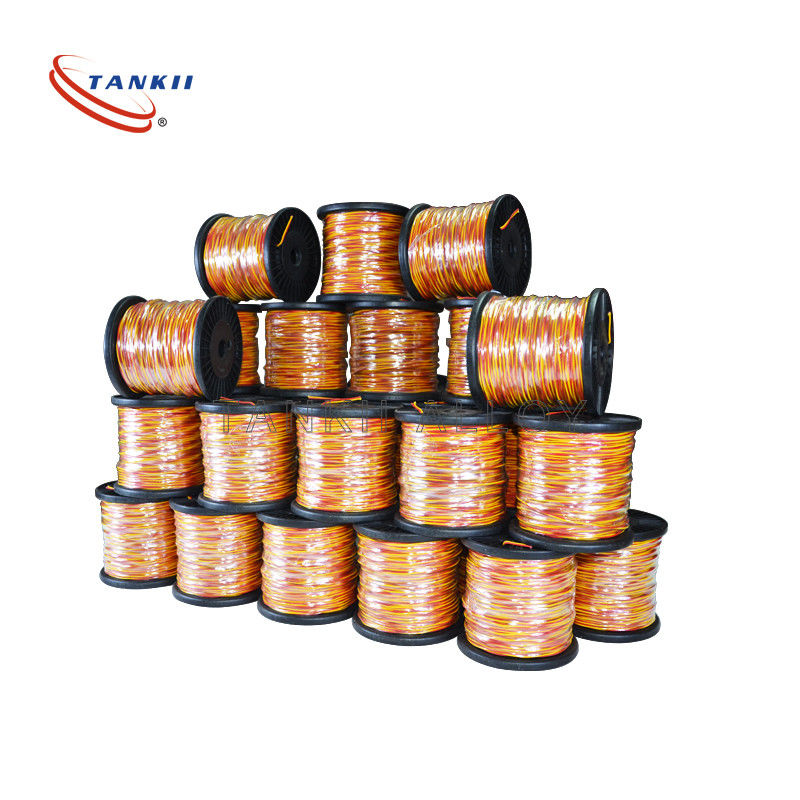

2*0.711mm KX Thermocouple Extension Wire With Fiberglass Insulation For Petroleum Industry

Product Description:

Do you know K type extension thermocouple cable ?

1. Function and principle:
   • In a temperature measurement system, a thermocouple generates a voltage signal corresponding to the temperature difference between the measuring end (hot junction) and the reference end (cold junction). However, in many cases, the reference end of the thermocouple may not be at a constant temperature, which can cause measurement errors. The K type extension thermocouple cable is used to connect the thermocouple to the measuring instrument, extending the connection distance while also compensating for the temperature variation of the reference end to ensure the accuracy of temperature measurement.
   • It is designed to have similar thermoelectric properties to the K-type thermocouple within a certain temperature range, so that the voltage signal transmitted through the cable can accurately represent the temperature at the measuring end of the thermocouple.
2. Construction and materials:
   • Conductor: The conductors of the K type extension thermocouple cable are usually made of metals with specific compositions. For the K-type, the positive conductor is made of nickel-chromium alloy, and the negative conductor is made of nickel-aluminum alloy. These metal materials ensure the accurate transmission of the thermoelectric signal.
   • Insulation: The insulation material of the cable is used to isolate the two conductors and prevent electrical short circuits between them. Common insulation materials include polyvinyl chloride (PVC), fluoroplastic, silicone rubber, etc. Different insulation materials have different temperature resistance and other performance characteristics, suitable for different application environments.
3. Types and specifications:
   • Based on insulation and sheath materials: There are PVC-insulated and sheathed K type extension thermocouple cables, which are cost-effective and suitable for general temperature measurement applications; fluoroplastic-insulated and sheathed cables have better high-temperature resistance and chemical resistance, suitable for high-temperature and corrosive environments; silicone rubber-insulated cables have good flexibility and high-temperature resistance, suitable for applications requiring flexibility and high-temperature resistance.
   • Based on the number of cores: There are single-core and multi-core (such as double-core or triple-core) K type extension thermocouple cables. Single-core cables are suitable for simple temperature measurement circuits, while multi-core cables can be used in more complex measurement systems or in environments with higher requirements for signal stability.
4. Application scenarios:
   • Widely used in industrial production processes such as metallurgy, chemical industry, power generation, and petroleum, for temperature measurement and control of various equipment and processes. For example, in a steelmaking furnace, K type extension thermocouple cables are used to measure the temperature of the furnace interior to ensure the normal operation of the steelmaking process.
   • Also used in scientific research experiments and laboratory temperature measurement, providing accurate temperature data for scientific research and analysis.

Features:

• Product Name: Thermocouple Cable
• Cable Color: Black, White, Etc.
• Cable Diameter: 0.5mm, 1.0mm, 2.0mm, 2.5mm
• Insulation: PVC, Silicone, Etc.
• Connector Pin Number: 2, 3, 4, Etc.
• Connector Material: K, J, T, E, N, Etc.

Thermocouple Cable, also known as thermocouple wire or thermocouple cable, is available in various cable colors, diameters, insulation types, connector pin numbers, and connector materials to suit your specific needs and requirements.

Technical Parameters:

Applications:

1. Industrial manufacturing:
   • Metallurgy: In steelmaking, ironmaking, and other metallurgical processes, thermocouple cables are used to monitor the high temperatures in furnaces, such as blast furnaces, electric furnaces, and converters. This helps to control the smelting process and ensure the quality of the metal products.
   • Chemical industry: Chemical reactions often occur under specific temperature conditions. Thermocouple cables are used to measure the temperature in reactors, distillation columns, and other equipment to ensure the normal progress of chemical reactions and the safety of the production process.
   • Ceramics and glass manufacturing: The production of ceramics and glass requires high-temperature firing and melting processes. Thermocouple cables are used to monitor the temperature in kilns and furnaces to control the firing temperature and ensure the quality of the products.
   • Power generation: In power plants, thermocouple cables are used to measure the temperature of boilers, steam turbines, and other equipment to monitor the operating status of the equipment and ensure the safe and efficient operation of the power generation system.
2. Automotive industry: Thermocouple cables are used in the automotive industry to measure the temperature of engine exhaust gases, catalytic converters, and other components. This helps to monitor the performance of the engine and the emission control system, and is also used in the testing and development of new automotive engines.
3. Aerospace industry: In the aerospace field, thermocouple cables are used to measure the temperature of aircraft engines, rocket engines, and other high-temperature components. This is crucial for ensuring the safety and reliability of aerospace vehicles during flight.
4. Food industry: In the food processing industry, thermocouple cables are used to measure the temperature of ovens, sterilization equipment, and other processing equipment to ensure the safety and quality of food processing.
5. Laboratory and scientific research: Thermocouple cables are widely used in laboratories and scientific research institutions for temperature measurement in various experiments and research projects. For example, in material research, chemical experiments, and biological research, thermocouple cables are used to measure the temperature of samples and reaction systems.
6. HVAC systems: In heating, ventilation, and air conditioning systems, thermocouple cables are used to measure the temperature of air, water, and other media to control the operation of the system and ensure the comfort of the indoor environment.

Customization:

Our thermocouple cables are manufactured in China, ensuring excellent quality and durability. With a temperature range of -200℃ to +1000℃, our thermocouple wire is perfect for a variety of industrial and commercial settings.

In addition to the standard cable diameters of 0.5mm, 1.0mm, 2.0mm, and 2.5mm, our thermocouple cables are also available in various insulation materials such as PVC, silicone, and more. We can manufacture cables with 2, 3, 4, or more cores, depending on your specific requirements.

To ensure easy installation and use, our thermocouple cables come with connector shells of different sizes, including 6.35mm, 4.2mm, and more. With our product customization services, you can choose the most suitable connector shell size for your application.

Trust Tankii for all your thermocouple cable needs, including thermocouple type K and other types. Contact us today to discuss your specific requirements and request a quote.

FAQ:

Q: What is the brand name of this Thermocouple Cable?

A: The brand name of this Thermocouple Cable is Tankii.

Q: What are the different model numbers available for this Thermocouple Cable?

A: The different model numbers available for this Thermocouple Cable are KX/KC, JX, EX, TX, NX, SC

Q: Where is this Thermocouple Cable manufactured?

A: This Thermocouple Cable is manufactured in China.

Q: What are the temperature ranges supported by this Thermocouple Cable?

A: The temperature ranges supported by this Thermocouple Cable vary depending on the model number. Please refer to the product specifications for more information.

Q: Is this Thermocouple Cable suitable for use in harsh industrial environments?

A: Yes, this Thermocouple Cable is designed to be durable and reliable in harsh industrial environments.
