Wound Resistor Enamelled Wire Dia 0.15mm Nature Blue Yellow Green

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ROHS,SGS

Model Number: CuNi Alloy Wire

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Packaging Details: in Spool

Payment Terms: L/C, T/T, Western Union

Get Best Price
Contact Now
Specifications
Highlight:

enamelled copper wire

,

enameled wire

Insulation:
Enamelled
Temper Class:
:133℃,150℃180℃,200℃,220℃
Colour Of Enamelled:
Black,Red,Nature,Blue,Green,yellow
Bare Conductor:
CuNi,NiCr,FeCrAL,Karma,FeCrAl
Wire Gauge:
≥0.012mm
Application:
Heating,Precision Resistor
Shape:
Round Wire,Flat Wire
Insulation:
Enamelled
Temper Class:
:133℃,150℃180℃,200℃,220℃
Colour Of Enamelled:
Black,Red,Nature,Blue,Green,yellow
Bare Conductor:
CuNi,NiCr,FeCrAL,Karma,FeCrAl
Wire Gauge:
≥0.012mm
Application:
Heating,Precision Resistor
Shape:
Round Wire,Flat Wire
Description
Wound Resistor Enamelled Wire Dia 0.15mm Nature Blue Yellow Green

Dia 0.15mm Enamelled CuNi Alloy Wire  for Wire Wound Resistor



Product Description

    These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.



    Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.





Type Of Bare Alloy Wire

    The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire



main

property

type



Cuni1

CuNI2

CuNI6

CuNi8

CuNI10

CuNi14

CuNi19

CuNi23

CuNi30

CuNi34

CuNI44



main

chemical

composition

Ni

1

2

6

8

10

14.2

19

23

30

34

44





MN

/

/

/

/

/

0.3

0.5

0.5

1.0

1.0

1.0





CU

rest

rest

rest

rest

rest

rest

rest

rest

rest

rest

rest



max

working

temperature



/

200

220

250

250

300

300

300

350

350

400



density

g/cm3



8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9



resistivity

at 20 °c



0.03 ± 10%

0.05±

10%

0.10±

10%

0.12±

10%

0.15±

10%

0.20±

5%

0.25±

5%

0.30±

5%

0.35±

5%

0.40±

5%

0.49±

5%



temperature

coefficient of

resistance



<100

<120

<60

<57

<50

<38

<25

<16

<10

-0

<-6



tensile

strength mpa



>210

>220

>250

>270

>290

>310

>340

>350

>400

>400

>420



elongation



>25

>25

>25

>25

>25

>25

>25

>25

>25

>25

>25



melting

point °c



1085

1090

1095

1097

1100

1115

1135

1150

1170

1180

1280



coefficient of

conductivity



145

130

92

75

59

48

38

33

27

25

23









Type of Insulation

Insulation-enamelled Name

Thermal Level℃

(working time 2000h)

Code Name

GB Code

ANSI. TYPE

Polyurethane enamelled wire

130

UEW

QA

MW75C

Polyester enamelled wire

155

PEW

QZ

MW5C

Polyester-imide enamelled wire

180

EIW

QZY

MW30C

Polyester-imide and polyamide-imide double coated enameled wire

200

EIWH

(DFWF)

QZY/XY

MW35C

Polyamide-imide enamelled wire

220

AIW

QXY

MW81C

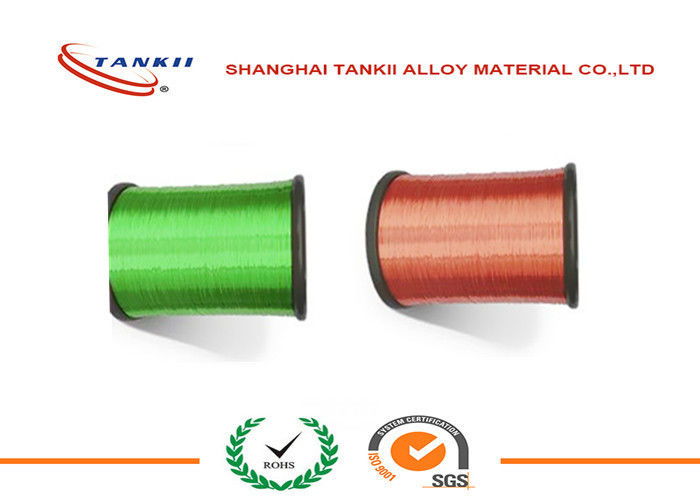

Wound Resistor Enamelled Wire Dia 0.15mm Nature Blue Yellow Green 0



Size:

Round wire:0.018mm~3.0mm

Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

Ribbon Size:0.01mm*0.2mm~1.2mm*24mm

Moq:5kg each size
