Professional UNi44 Wire 0.08mm Enamel Magnet Wire Ribbon Size 1.2mm * 24mm

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ROHS,SGS

Model Number: Manganin

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Packaging Details: in Spool

Payment Terms: L/C, T/T, Western Union

Get Best Price
Contact Now
Specifications
Highlight:

enamel magnet wire

,

enameled wire

Insulaltion:
Enamelled
Temper Class:
:133℃,150℃180℃,200℃,220℃
Colour Of Enamelled:
Black,Red,Nature,Blue,Green,yellow
Bare Conductor:
Copper Manganin
Shape:
Round Wire,Flat Wire
Application:
Precision Resistor
Insulaltion:
Enamelled
Temper Class:
:133℃,150℃180℃,200℃,220℃
Colour Of Enamelled:
Black,Red,Nature,Blue,Green,yellow
Bare Conductor:
Copper Manganin
Shape:
Round Wire,Flat Wire
Application:
Precision Resistor
Description
Professional UNi44 Wire 0.08mm Enamel Magnet Wire Ribbon Size 1.2mm * 24mm

Enamelled Constantan,CuNi44 Wire ( 0.08mm180℃ Polyesterimide ) for Precision Instrument



Product Description

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.



Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.



Manganin,Constantan

  Constantan 6J40  New Constantan Manganin Manganin Manganin
6J11 6J12 6J8 6J13
Main Chemical Elements %  Mn  1~2  10.5~12.5  11~13 8~10 11~13
Ni 39~41 - 2~3 - 2~5
Cu REST REST REST REST REST
    Al2.5~4.5 Fe1.0~1.6   Si1~2
Temperature Range for Components 5~500 5~500 5~45 10~80 10~80
Density 8.88 8 8.44 8.7 8.4
g/cm3
Resistivity 0.48 0.49 0.47 0.35 0.44
μΩ.m,20 ±0.03  ±0.03  ±0.03  ±0.05  ±0.04
Extensibility ≥15 ≥15 ≥15 ≥15 ≥15
%Φ0.5
Resistance -40~+40 -80~+80 -3~+20 -5~+10 0~+40
Temperature
Quotiety
α,10 -6 /
Thermoelectromotive 45 2 1 2 2
force to Copper
μv/(0~100)






Tpye of Insulation:

1) Polyester resistance wire , class 130

2) Modified polyester resistance wire  , class 155

3) Polyesterimide resistance wire , class 180

4) Polyester (imide) coated with polyamide-imide resistance wire , class 200

5) Polyimide resistance wire , class 220





Tpye of Bare Wire

main

property

type



Cuni1

CuNI2

CuNI6

CuNi8

CuNI10

CuNi14

CuNi19

CuNi23

CuNi30

CuNi34

CuNI44



main

chemical

composition

Ni

1

2

6

8

10

14.2

19

23

30

34

44





MN

/

/

/

/

/

0.3

0.5

0.5

1.0

1.0

1.0





CU

rest

rest

rest

rest

rest

rest

rest

rest

rest

rest

rest



max

working

temperature



/

200

220

250

250

300

300

300

350

350

400



density

g/cm3



8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9



resistivity

at 20 °c



0.03 ± 10%

0.05±

10%

0.10±

10%

0.12±

10%

0.15±

10%

0.20±

5%

0.25±

5%

0.30±

5%

0.35±

5%

0.40±

5%

0.49±

5%



temperature

coefficient of

resistance



<100

<120

<60

<57

<50

<38

<25

<16

<10

-0

<-6



tensile

strength mpa



>210

>220

>250

>270

>290

>310

>340

>350

>400

>400

>420



elongation



>25

>25

>25

>25

>25

>25

>25

>25

>25

>25

>25



melting

point °c



1085

1090

1095

1097

1100

1115

1135

1150

1170

1180

1280



coefficient of

conductivity



145

130

92

75

59

48

38

33

27

25

23

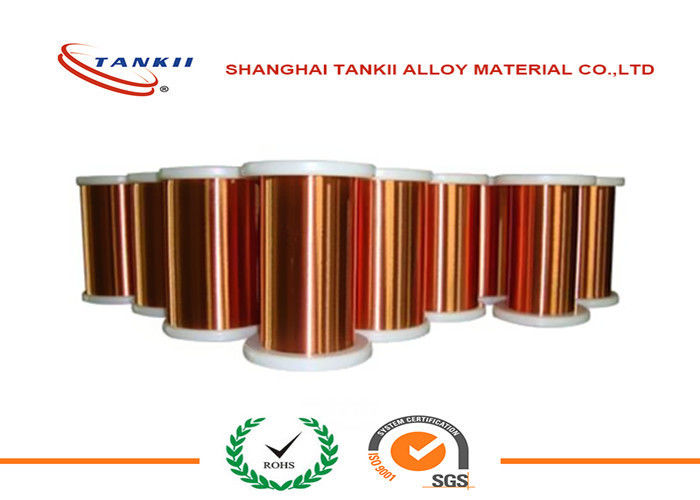

Professional UNi44 Wire 0.08mm Enamel Magnet Wire Ribbon Size 1.2mm * 24mm 0

Type Of Bare Alloy Wire

The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

Size:

Round wire:0.018mm~3.0mm

Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

Ribbon Size:0.01mm*0.2mm~1.2mm*24mm

Moq:5kg each size
