Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: TKYZ
Payment & Shipping Terms
Minimum Order Quantity: 100 KG
Price: negotiable
Packaging Details: Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Tons per month
Model NO.: |
TKYZ |
Chemical Composition: |
FeCrAl 25/6 |
Resisivity: |
1.45 |
Elongation: |
>10% |
Density: |
7.1g/cm3 |
Model NO.: |
TKYZ |
Chemical Composition: |
FeCrAl 25/6 |
Resisivity: |
1.45 |
Elongation: |
>10% |
Density: |
7.1g/cm3 |

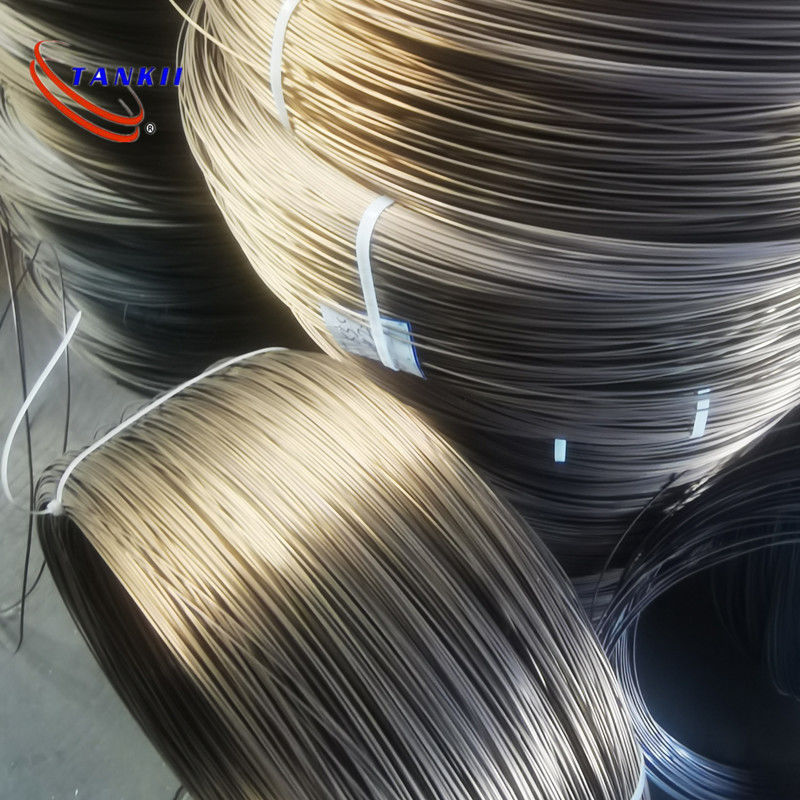

0.1-10.0 mm TKYZ FECRAL Heating Resistance Wire for Industry Furnace Edge Brake Resistor
Some key characteristics of high-temperature heating alloys include:
Elevated Melting Point: These alloys have high melting points, typically in the range of 1,000°C to 1,600°C, which allows them to maintain their structural integrity at high operating temperatures.
Oxidation Resistance: High-temperature heating alloys are engineered to resist oxidation and corrosion at elevated temperatures, ensuring long-term performance and durability.
Mechanical Strength: The alloys are designed to maintain their mechanical properties, such as tensile strength, creep resistance, and fatigue life, even at high temperatures.
Thermal Stability: These alloys exhibit minimal microstructural changes or phase transformations when exposed to high temperatures for extended periods, ensuring consistent performance over time.
TKYZ product is a new product developed after TK1 product, which has been widely used in high temperature electric heating alloy materials in recent years. Compared with TK1, its purity is further improved and its oxidation resistance is further optimized. With the special rare earth element combination and unique metallurgical manufacturing process, the material has been recognized by domestic and foreign customers in the field of high temperature and heat resistant fibers. Successful application in ceramic sintering, diffusion furnaces, industrial furnaces with high power density and high temperature.
MAIN CHEMICAL ELEMENTS AND PROPERTIES
| Properties Grade | TKYZ | ||||||||||
| Cr | Al | C | Si | ||||||||
| 20-23 | 5.8 | ≤0.04 | ≤0.4 | ||||||||
| Max Continuous Service Temperature(ºC) | 1425 | ||||||||||
| Resistivity 20ºC (μ.Ω.m) | 1.45 | ||||||||||
| Density(g/cm3) | 7.1 | ||||||||||
| Tensile Strength(N/mm²) | 650-800 | ||||||||||
| Elongation (%) | >14 | ||||||||||
| High Temperature Strength(MPa) at 1000℃ | 20 | ||||||||||
| fast life at 1350 ℃ | More than 80 hours | ||||||||||
| The Emissivity Of The Fully Oxidized State | 0.7 | ||||||||||
Average Linear Expansion Coefficient
| Temperature ℃ | Average thermal expansion coefficient×10-6/k |
| 20-250 | 11 |
| 20-500 | 12 |
| 20-750 | 14 |
| 20-1000 | 15 |
| 20-1200 | - |
| 20-1400 | - |
Thermal Conductivity
| 50℃ | 600℃ | 800℃ | 1000℃ | 1200℃ | 1400℃ | |
| Wm-1k-1 | 11 | 20 | 22 | 26 | 27 | 35 |
Resistance temperature correction factor
| Temperature ℃ | 700 | 900 | 1100 | 1200 | 1300 |
| Ct | 1.02 | 1.03 | 1.04 | 1.04 | 1.04 |
