Product Details
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: KX
Payment & Shipping Terms
Minimum Order Quantity: 200 Meters
Price: Negotiation

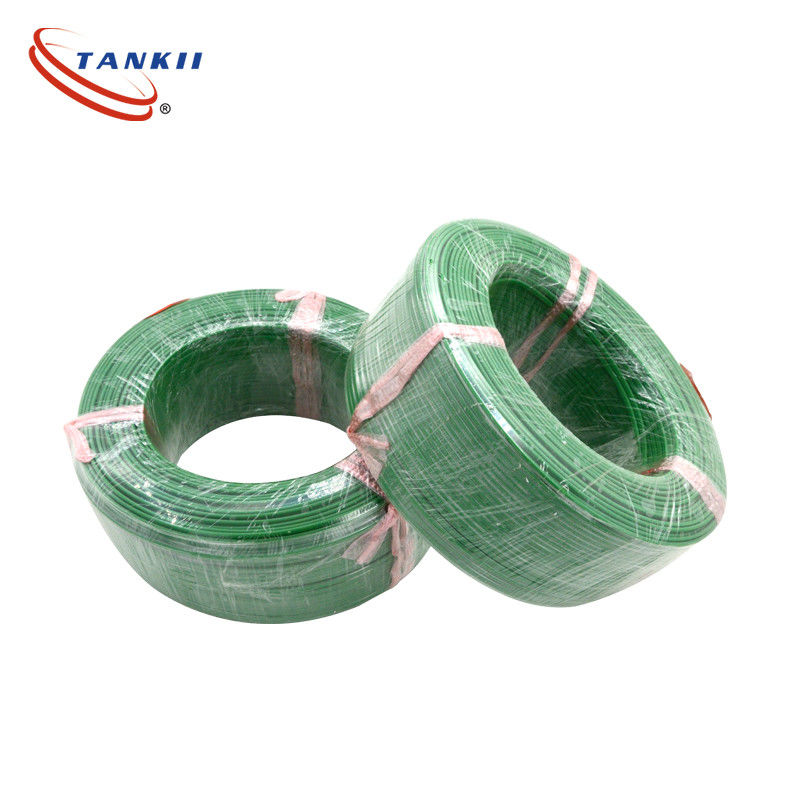

Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Item: |
Green And White Color K Type Extension Thermocouple Wire In Fiberglass /FEP Insulation |
Insulation Material: |
PVC/ Fiberglass/PTFE/FEP |
Conductor Type: |
Solid Or Multi |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days After Getting The Deposit |
Type: |
Kx, Tx Jx Type Thermocouple Cable |
Item: |
Green And White Color K Type Extension Thermocouple Wire In Fiberglass /FEP Insulation |
Insulation Material: |
PVC/ Fiberglass/PTFE/FEP |
Conductor Type: |
Solid Or Multi |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days After Getting The Deposit |
Type: |
Kx, Tx Jx Type Thermocouple Cable |
Green And White Color K Type Extension Thermocouple Wire In Fiberglass /FEP Insulation
| Type | Conductor | Wire size | Insulation | Sheath material |
| KX | KPX-chromel, KNX-alumel | 0.2mm2~1.5mm2 | fiberglass, PTFE, FEP, PVC, rubber, kapton |
SS braiding, tinne copper wire braiding
|
K type extension cable refers to a type of cable that is used to extend the length of a K type thermocouple.
A K type thermocouple is a temperature sensor that consists of two different metal wires joined together at one end.
The extension cable is used to connect the thermocouple to a measuring instrument or a control system, allowing the temperature to be measured at a remote location.
The K type extension cable is designed to maintain the accuracy and reliability of the temperature measurement.
It is typically made of materials that are compatible with the K type thermocouple, such as chromel and alumel.
These materials have specific electrical properties that enable accurate temperature readings.
| Conductor Name | Type | Applicable thermocouple type |
| Cu-Constantan0.6 | SC or RC | S or R |
| Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) | KCA KCB KX | K |
| Iron-constantan18 NiCr14Si-NiSi4Mg | NC NX | N |
| NiCr10-Constantan45 | EX | E |
| Iron-Constantan 45 | JX | J |
| Copper-Constantan 45 | TX | T |
Tankii also produce: Thermocouple Bare wire, K, J, E, N, T
Green And White Color K Type Extension Thermocouple Wire In Fiberglass /FEP Insulation
Properties of insulation materials
| Material Type | Continuous Operating Temp. / ℃ | Abrasion Resistance | Chemical Resistance | Moisture Resistance | Solvent Resistance | Flame Resistance |
| PVC | 105 | Very Good | Very Good | Good | Fair | Excellent |
| SILICONE | 200 | Good | Good | Excellent | Excellent | Excellent |
| FEP | 200 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PFA | 260 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PTFE | 260 | Good | Excellent | Excellent | Excellent | Excellent |
| B-GLASS FIBER | 260 | Good | Good | Fair | Good | Good |
| G-GLASS FIBER | 510 | Poor | Good | Good | Excellent | Excellent |
| Q-GLASS FIBER | 704 | Fair | Good | Good | Excellent | Excellent |
| VITREOUS SILICA FIBER | 1100 | Good | Good | Excellent | Excellent | Excellent |
| MINERAL INSULATION* | 1100 | Excellent | Excellent | Good | Excellent | Excellent |
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 days after payment |
Thermocouple wire With insulation used for extension cable or compensation cable.
