Product Details
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: JX
Payment & Shipping Terms
Minimum Order Quantity: 200 Meters
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Item: |
First Class ISO Certified 2*1.0mm PVC/ Fiberglass Insulated Thermocouple Wire Type J Price |
Insulation Material: |
PVC/ Fiberglass/PTFE/FEP |
Conductor Type: |
Solid Or Multi |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days After Getting The Deposit |
Type: |
Kx, Tx Jx Type Thermocouple Cable |
Item: |
First Class ISO Certified 2*1.0mm PVC/ Fiberglass Insulated Thermocouple Wire Type J Price |
Insulation Material: |
PVC/ Fiberglass/PTFE/FEP |
Conductor Type: |
Solid Or Multi |
Standard: |
ANSI, IEC |
Leading Time: |
5~7 Days After Getting The Deposit |
Type: |
Kx, Tx Jx Type Thermocouple Cable |

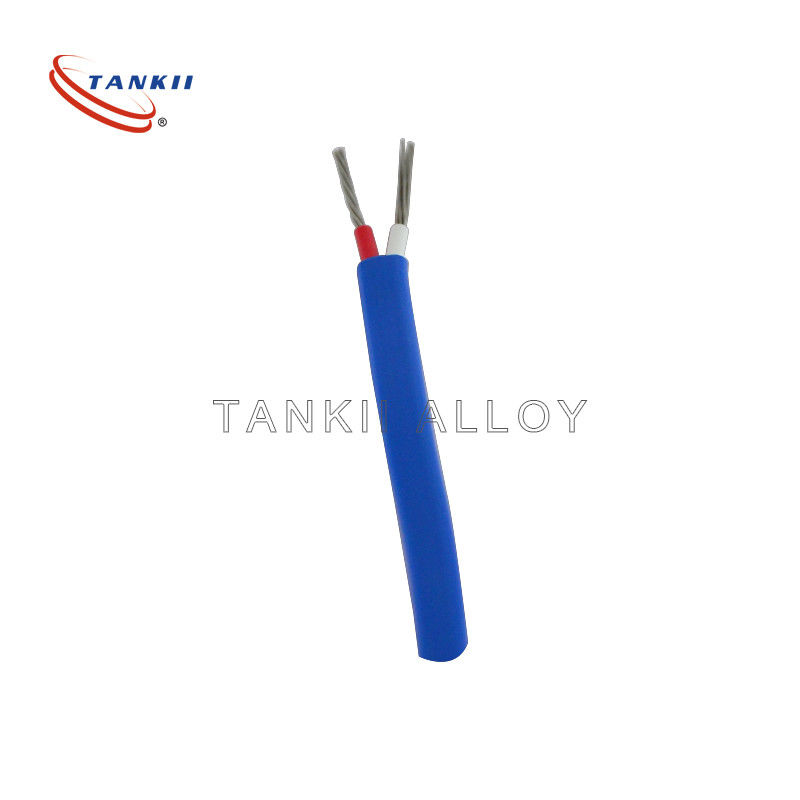

First Class ISO Certified 2*1.0mm PVC/ Fiberglass Insulated Thermocouple Wire Type J Price
A J-type thermocouple cable is a type of cable used for connecting J-type thermocouples.
J-type thermocouples are commonly used in temperature measurement applications.
The cable is designed to transmit the voltage generated by the thermocouple to the measuring instrument or control system.
It consists of two different metal wires, usually made of iron and constantan, which are joined together at one end to form the thermocouple junction.
The cable is insulated to prevent electrical interference and is often color-coded for easy identification.
J-type thermocouple cables are known for their accuracy and reliability in measuring temperatures up to around 750°C.
The accuracy of a thermocouple refers to its ability to measure temperature with precision.
It is typically expressed as a percentage of the full-scale range.
For example, if a thermocouple has an accuracy of ±1°C and is measuring a temperature range of 0-100°C, it means that the actual temperature can be within ±1°C of the measured value.
The accuracy of a thermocouple can be affected by factors such as the quality of the materials used, the calibration process, and environmental conditions.
It is important to consider the accuracy requirements of your specific application when selecting a thermocouple.
Conductor Name | Type | Applicable thermocouple type |
Cu-Constantan0.6 | SC or RC | S or R |
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) | KCA KCB KX | K |
Iron-constantan18 NiCr14Si-NiSi4Mg | NC NX | N |
NiCr10-Constantan45 | EX | E |
Iron-Constantan 45 | JX | J |
Copper-Constantan 45 | TX | T |
Thermocouple Bare wire, K, J, E, N, T
First Class ISO Certified 2*1.0mm PVC/ Fiberglass Insulated Thermocouple Wire Type J Price
Properties of insulation materials
Material Type | Continuous Operating Temp. / ℃ | Abrasion Resistance | Chemical Resistance | Moisture Resistance | Solvent Resistance | Flame Resistance |
PVC | 105 | Very Good | Very Good | Good | Fair | Excellent |
SILICONE | 200 | Good | Good | Excellent | Excellent | Excellent |
FEP | 200 | Excellent | Excellent | Excellent | Excellent | Excellent |
PFA | 260 | Excellent | Excellent | Excellent | Excellent | Excellent |
PTFE | 260 | Good | Excellent | Excellent | Excellent | Excellent |
B-GLASS FIBER | 260 | Good | Good | Fair | Good | Good |
G-GLASS FIBER | 510 | Poor | Good | Good | Excellent | Excellent |
Q-GLASS FIBER | 704 | Fair | Good | Good | Excellent | Excellent |
VITREOUS SILICA FIBER | 1100 | Good | Good | Excellent | Excellent | Excellent |
MINERAL INSULATION* | 1100 | Excellent | Excellent | Good | Excellent | Excellent |
Packaging Details | Roll with plastic film wrapped and carton package |
---|---|
Delivery Detail | Shipped in 7 days after payment |
Thermocouple wire With insulation used for extension cable or compensation cable.
