Product Details
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: K
Payment & Shipping Terms
Minimum Order Quantity: 10pc
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year
Item: |
Tankii First Class Accuracy MI K Type Thermocouple Sensor With Connector For High Temperature Mold Factory |
Conductor Type: |
K Type Thermocouple Grade Wire |
Insulation: |
MgO2 |
Standard: |
ANSI/IEC/GB |
Lead Time: |
3~10 Days After Getting The Deposit |
Type: |
K |
Temperature Range: |
-200~1100 C |
Application: |
Temperature Measurement，Contact Thermometer |
Item: |
Tankii First Class Accuracy MI K Type Thermocouple Sensor With Connector For High Temperature Mold Factory |
Conductor Type: |
K Type Thermocouple Grade Wire |
Insulation: |
MgO2 |
Standard: |
ANSI/IEC/GB |
Lead Time: |
3~10 Days After Getting The Deposit |
Type: |
K |
Temperature Range: |
-200~1100 C |
Application: |
Temperature Measurement，Contact Thermometer |

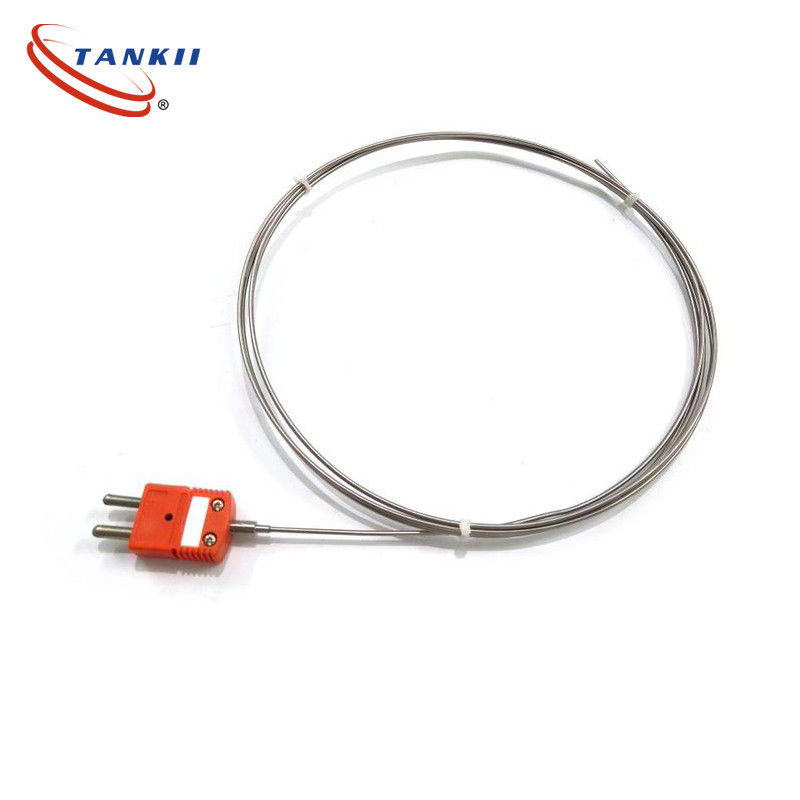

Tankii First Class Accuracy MI K Type Thermocouple Sensor With Connector For High Temperature Mold Factory
| Type | K |
| Insulation | MgO2 |
| Temperature | -200~1100℃ |
| Accuracy | Class 1 (-/+1.1℃) |
| Conductor | +NiCr, -Ni |
Accuracy tolerance of MI cable: when the reference end is 0 degree, the tolerance shall be in accordance
with GB/T16839.-2 or IEC584
|
Type |
Class of Accuracy | |||||
| I | II | III | ||||
| Tolerance | Temp-℃ | Tolerance | Temp-℃ | Tolerance | Temp-℃ | |
| K | ±1.5℃ or ±0.4% t | -40~1000 | ±2.5℃ or ±0.75% t | -40~1000 | ±2.5℃ or ±1.5% t | -200~40 |
| E | -40~1000 | -40~1000 | -200~40 | |||
| N | -40~800 | -40~800 | -200~40 | |||
| J | -40~750 | -40~750 | -200~40 | |||
| T | ±0.5℃ or ±0.4% t | -40~350 | ±1.0℃ or ±0.75% t | -40~400 | ±1.0℃ or ±1.5% t | -200~40 |
| ASTM | (American Society for Testing and Materials) E 230 |
| ANSI | (American National Standard Institute) MC 96.1 |
| IEC | (European Standard by the International Electrotechnical Commission 584)-1/2/3 |
| DIN | (Deutsche Industrie Normen) EN 60584 -1/2 |
| BS | (British Standards) 4937.1041, EN 60584 - 1/2 |
| NF | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 |
| JIS | (Japanese Industrial Standards) C 1602 - C 1610 |
| GOST | (Unification of the Russian Specifications) 3044 |
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 ~15 days after payment |
The type with connector as per customer's request:
