Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: Enameled Copper wire
Payment & Shipping Terms
Minimum Order Quantity: 1~5kg
Price: Negotiable
Packaging Details: with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 10-15 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Item: |
Enameled Copper / Nicr Alloy Winding Wire Magnet Wire Litz Wire 0.05mm 0.1mm 0.2mm |
MOQ: |
1~5kg As Per The Size |
Leading Time: |
10~40 Days |
Conductor: |
NiCr Allpy. Copper Alloy |
Insulation Material: |
Enameled |
Application: |
Transformer, Electromagnets |
Conductor Type: |
Solid, Stranded |
Color: |
Blue |
Item: |
Enameled Copper / Nicr Alloy Winding Wire Magnet Wire Litz Wire 0.05mm 0.1mm 0.2mm |
MOQ: |
1~5kg As Per The Size |
Leading Time: |
10~40 Days |
Conductor: |
NiCr Allpy. Copper Alloy |
Insulation Material: |
Enameled |
Application: |
Transformer, Electromagnets |
Conductor Type: |
Solid, Stranded |
Color: |
Blue |

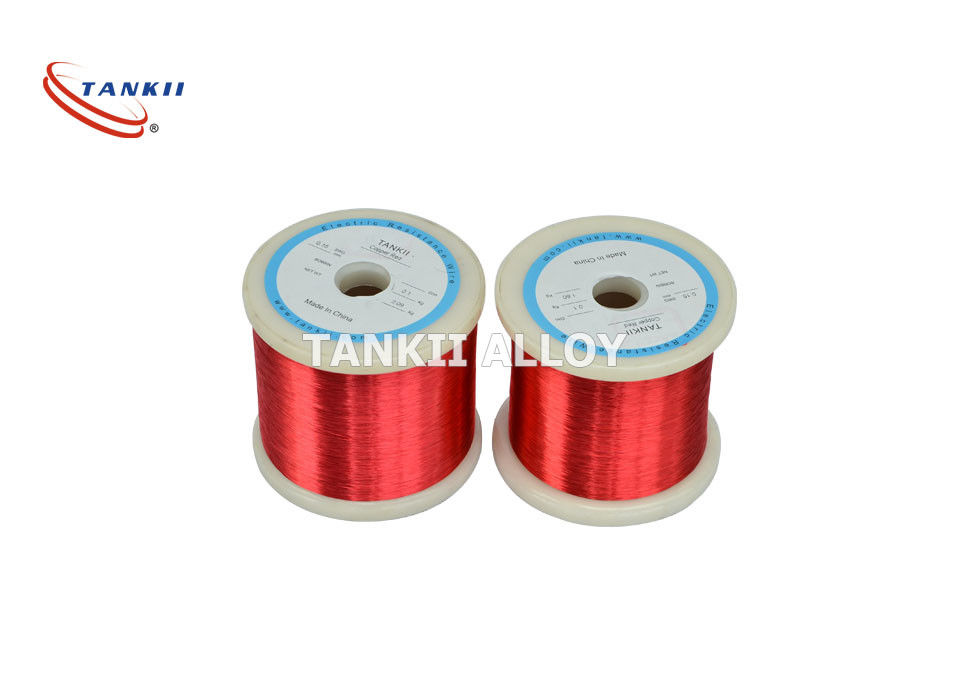

Enameled Copper / Nicr Alloy Winding Wire Magnet Wire Litz Wire 0.05mm 0.1mm 0.2mm
Magnet wire or Enameled wire is a copper wire coated with a very thin layer of insulation.
We have different range of Enameled Copper Winding Wires coated with a layer of insulation and comes with good mechanical properties such as tensile strength, elongation etc.
The wire itself is most often fully annealed, electrolytically refined copper.
The most suitable materials for magnet wire applications are unalloyed pure metals, particularly copper.
When factors such as chemical, physical, and mechanical property requirements are considered, copper is considered the first choice conductor for magnet wire.
Tankii Enameled wire and winding wire are terms often used interchangeably to describe magnet wire.
If you're looking for enameled copper wire, you're in the right place.
Tankii Enameled wire conductor:
| Copper-nickel alloy wire, | Constantan Wire,CuNi1~CuNi44 | |
| Ni-Cr Alloy wire | NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma. | |
| Fe-Cr-Al Alloy wire | Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
|
| Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin | |
| Stainless steel Wire | ||
| Silver | Purity 9.99% | |
| Copper wire | Pure copper wire | |
| Golden Wire | ||
| Any copper alloy and nickel alloy is available | ||
Available size to enamel:
| – | Min. | Max. |
|---|---|---|
| SWG | 5 | 45 |
| Size | 5.400 MM | 0.071 MM |
Enameled Copper / Nicr Alloy Winding Wire Magnet Wire Litz Wire 0.05mm 0.1mm 0.2mm
Type of insulation
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
