Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: Enameled wire
Payment & Shipping Terms
Minimum Order Quantity: 1~5kg
Price: Negotiable
Packaging Details: with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 10-15 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Item: |
0.05 To 1.0mm Solderable Enameled Resistance Wire Used For Heating |
MOQ: |
1~5kg As Per The Size |
Leading Time: |
10~40 Days |
Conductor: |
NiCr Allpy. Copper Alloy |
Insulation Material: |
Enameled |
Application: |
Transformer, Electromagnets |
Conductor Type: |
Solid, Stranded |
Color: |
Blue |
Item: |
0.05 To 1.0mm Solderable Enameled Resistance Wire Used For Heating |
MOQ: |
1~5kg As Per The Size |
Leading Time: |
10~40 Days |
Conductor: |
NiCr Allpy. Copper Alloy |
Insulation Material: |
Enameled |
Application: |
Transformer, Electromagnets |
Conductor Type: |
Solid, Stranded |
Color: |
Blue |

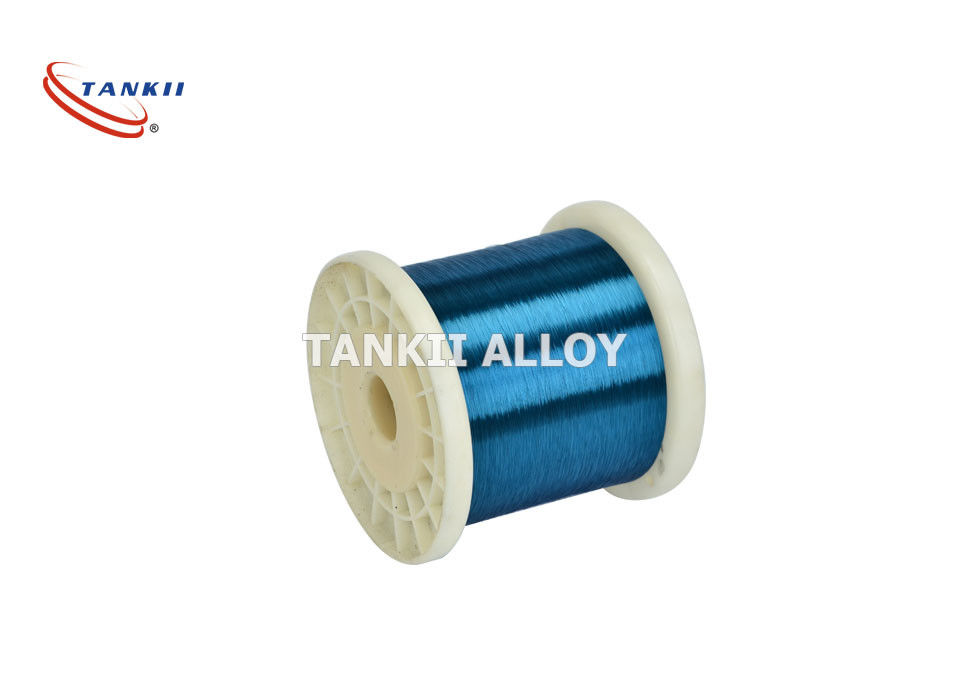

0.05 To 1.0mm Solderable Enameled Resistance Wire Used For Heating
Enameled wire is a copper or resistance wire coated with a very thin layer of insulation.
It is used in the construction of transformers, inductors, motors, generators, speakers, hard disk
head actuators, electromagnets, electric guitar pickups and other applications that require tight coils of insulated wire.
The wire itself is most often fully annealed, electrolytically refined copper.
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications,
taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and
platinum wire upon order.
Tankii Enameled wire conductor:
Copper-nickel alloy wire, | Constantan Wire,CuNi1~CuNi44 | |
Ni-Cr Alloy wire | NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma. | |
Fe-Cr-Al Alloy wire | Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, |
|
Cu-Ni-Mn Alloy wire | CuMn12Ni2,CuMn12Ni4,Manganin | |
Stainless steel Wire | ||
Silver | Purity 9.99% | |
Copper wire | Pure copper wire | |
Golden Wire | ||
Any copper alloy and nickel alloy is available | ||
Type of insulation
Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
Polyester enamelled wire | 155 | PEW | QZ | MW5C |
Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
