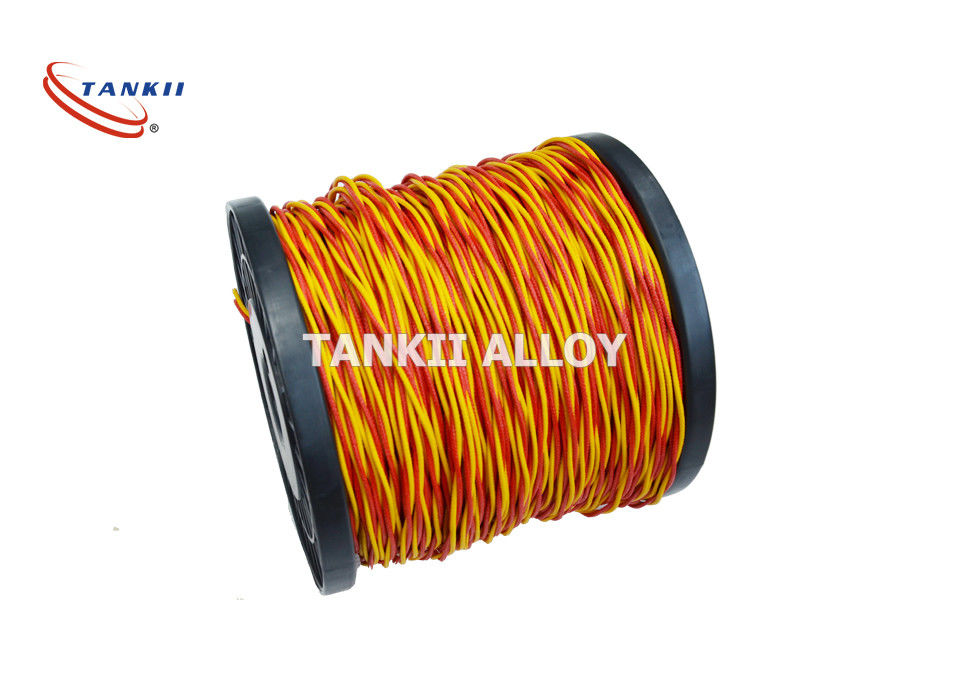

G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion

G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion
G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion
G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion

Large Image :  G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: Rohs,
Model Number: KX
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year

G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion

Description
Item: 21SWG 22SWG Q Fiberglass Insulated K Type Thermocouple Extension Wire2*0.72mm 2*0.81mm G Glassfiber Insulated Type K Extension Wire Insulation Material: Glass Fiber (400C, 600C, 800C, 1000C )
Conductor Size: 0.711mm Or 0.81mm Production Time: 10 Days
Insulation Temp.: Up To 1000C Standard: IEC-60584-2
Type: K Type Application: To Connect Thermocouples To The Sensing Or Control Instrumentation.
High Light:

G Glassfiber Extension Thermocouple Cable

,

22SWG Extension Thermocouple Cable

,

IEC Anti Abrasion Extension Thermocouple Cable

2*0.72mm 2*0.81mm G Glassfiber Insulated Type K Extension Wire



Shanghai Tankii alloy material Co., ltd manufactures themocouple wire & extension grade wire, type K, J, T, E, N.

Tankii Thermocouple extension wire is a flexible, insulated wire used to extend a thermocouple signal from a probe back to the instrument reading the signal.
It works accurately over a narrower temperature range than thermocouple wire and can't be used in the sensing point (or probe part) of the thermocouple.
It is typically used as an extension to a measuring instrument over long distances.
Tankii offers a wide variety of insulating, shielding, and jacketing options for tankii single pair thermocouple wire & tankii multipair thermocouple extension cables.

What is the difference between Thermocouple grade and Extension grade wire?
Thermocouple grade wire is wire that is used to make the sensing point (or probe part) of the thermocouple.

Extension grade wire is only used to extend a thermocouple signal from a probe back to the instrument reading the signal.

The extension grade wire typically will have a lower ambient temperature limit in which the wire may be used.

Namely, it may pass a signal representing a higher temperature as received from the probe, but the wire physically may not be exposed to higher temperatures.

Thermocouple wire may be used as extension wire, but extension grade wire may not be used in the sensing point (or probe part) of the thermocouple.

Part numbers for extension wire typically begin with an "EX" prefix.



Remember one thing, Extension Grade wire is only tested and certified to 200C, any usage higher then that cannot be assumed to meet Standard Limits unless the wire is calibrated and the actual tolerance used in determining the final measurement accuracy.



2*0.72mm 2*0.81mm G Glassfiber Insulated Type K Extension Wire




Detailed Description
Conductor Name Type Applicable thermocouple type
Cu-Constantan0.6 SC or RC S or R
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) KCA KCB KX K
Iron-constantan18 NiCr14Si-NiSi4Mg NC NX N
NiCr10-Constantan45 EX E
Iron-Constantan 45 JX J
Copper-Constantan 45 TX T



2*0.72mm 2*0.81mm G Glassfiber Insulated Type K Extension Wire




Properties of insulation materials

Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
PVC 105 Very Good Very Good Good Fair Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent




International Color code:

G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion 0

The standards we can meet for thermocouple :

ASTM  (American Society for Testing and Materials) E 230
ANSI (American National Standard Institute) MC 96.1
IEC (European Standard by the International Electrotechnical Commission 584)-1/2/3
DIN (Deutsche Industrie Normen) EN 60584 -1/2
BS (British Standards) 4937.1041, EN 60584 - 1/2
NF (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324
JIS (Japanese Industrial Standards) C 1602 - C 1610
GOST (Unification of the Russian Specifications) 3044


2*0.72mm 2*0.81mm G Glassfiber Insulated Type K Extension Wire




Packaging & Delivery
Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 ~15 days after payment



Thermocouple wire With insulation used for extension cable or compensation cable.



G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion 1G Glassfiber Type K Extension Thermocouple Cable Insulated Anti Abrasion 2









FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.


2. When will you arrange the production?
In 12 hours since we get your payment.


3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request


4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.


5. What is your warranty ?
For most of our products, the warranty will be 12 months.


6. When will I get a solution for defective products?
Within 48 hours (on working days )


7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!


8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.



2*0.72mm 2*0.81mm G Glassfiber Insulated Type K Extension Wire







Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable , RTD cable and thermocouple related products.
