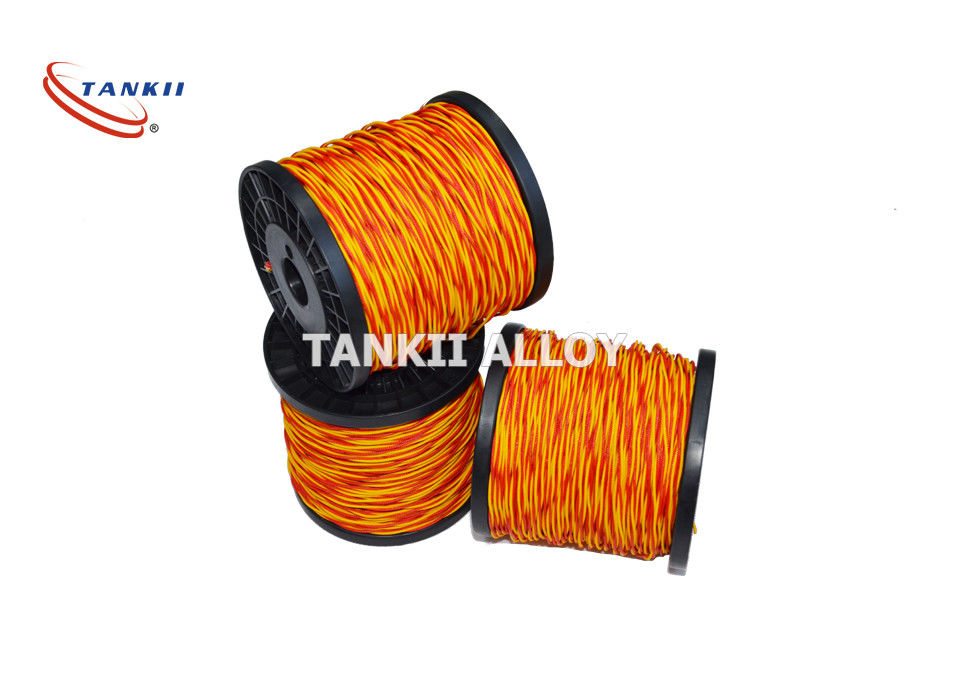

Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG

Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG
Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG
Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG

Large Image :  Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: Rohs,
Model Number: KX
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year

Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG

Description
Item: 21SWG 22SWG Q Fiberglass Insulated K Type Thermocouple Extension Wire Insulation Material: Fiberglass
Conductor Size: 0.711mm Or 0.81mm Production Time: 10 Days
Insulation Temp.: Up To 1000C Standard: IEC-60584-2
Type: K Type Application: To Connect Thermocouples To The Sensing Or Control Instrumentation.
High Light:

Fiberglass Insulated Thermocouple Extension Wire

,

K Type Thermocouple Extension Wire

,

Thermocouple Extension Wire 21SWG

21SWG 22SWG Q Fiberglass Insulated K Type Thermocouple Extension Wire



What is the difference between Thermocouple grade and Extension grade wire?

Thermocouple grade wire is wire that is used to make the sensing point (or probe part) of the thermocouple.

Extension grade wire is only used to extend a thermocouple signal from a probe back to the instrument reading the signal.

The extension grade wire typically will have a lower ambient temperature limit in which the wire may be used.

Namely, it may pass a signal representing a higher temperature as received from the probe, but the wire physically may not be exposed to higher temperatures.

Thermocouple wire may be used as extension wire, but extension grade wire may not be used in the sensing point (or probe part) of the thermocouple.

Part numbers for extension wire typically begin with an "EX" prefix.



Type: K

Conductor: NiCr-NiSi

Conductor Size: 0.1~1.63mm

Insulation Material: See the table as below

Any special requirements can be spoken before order.





Shanghai Tankii alloy material Co., ltd manufactures themocouple wire & extension grade wire, type K, J, T, E, N.



Tankii Thermocouple extension wire is a flexible, insulated wire used to extend a thermocouple signal from a probe back to the instrument reading the signal.

It works accurately over a narrower temperature range than thermocouple wire and can't be used in the sensing point (or probe part) of the thermocouple.

It is typically used as an extension to a measuring instrument over long distances.



Tankii offers a wide variety of insulating, shielding, and jacketing options for tankii single pair thermocouple wire & tankii multipair thermocouple extension cables.






21SWG 22SWG Q Fiberglass Insulated K Type Thermocouple Extension Wire



Conductor Name

Type

Applicable thermocouple type

Cu-Constantan0.6

SC or RC

S or R

Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel)

KCA KCB KX

K

Iron-constantan18 NiCr14Si-NiSi4Mg

NC NX

N

NiCr10-Constantan45

EX

E

Iron-Constantan 45

JX

J

Copper-Constantan 45

TX

T



Type K Thermocouple Extension Wire 22SWG Vitreous Silica Fiber In 500m Spools ​



Material Type

Continuous Operating Temp. / ℃

Abrasion Resistance

Chemical Resistance

Moisture Resistance

Solvent Resistance

Flame Resistance

PVC

105

Very Good

Very Good

Good

Fair

Excellent

SILICONE

200

Good

Good

Excellent

Excellent

Excellent

FEP

200

Excellent

Excellent

Excellent

Excellent

Excellent

PFA

260

Excellent

Excellent

Excellent

Excellent

Excellent

PTFE

260

Good

Excellent

Excellent

Excellent

Excellent

B-GLASS FIBER

260

Good

Good

Fair

Good

Good

G-GLASS FIBER

510

Poor

Good

Good

Excellent

Excellent

Q-GLASS FIBER

704

Fair

Good

Good

Excellent

Excellent

VITREOUS SILICA FIBER

1100

Good

Good

Excellent

Excellent

Excellent

MINERAL INSULATION*

1100

Excellent

Excellent

Good

Excellent

Excellent



Properties of insulation materials




International Color code:

Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG 0

The standards we can meet for thermocouple :



ASTM

(American Society for Testing and Materials) E 230

ANSI

(American National Standard Institute) MC 96.1

IEC

(European Standard by the International Electrotechnical Commission 584)-1/2/3

DIN

(Deutsche Industrie Normen) EN 60584 -1/2

BS

(British Standards) 4937.1041, EN 60584 - 1/2

NF

(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324

JIS

(Japanese Industrial Standards) C 1602 - C 1610

GOST

(Unification of the Russian Specifications) 3044

21SWG 22SWG Q Fiberglass Insulated K Type Thermocouple Extension Wire

Packaging Details

Roll with plastic film wrapped and carton package

Delivery Detail

Shipped in 7 ~15 days after payment







Detailed Description





Packaging & Delivery



Thermocouple wire With insulation used for extension cable or compensation cable.



Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG 1Fiberglass Insulated K Type Thermocouple Extension Wire 21SWG 22SWG 2






FAQ:

1. Payment ways?

T/T, PAYPAL, WESTUNION.


2. When will you arrange the production?

In 12 hours since we get your payment.


3. Product certifications?

MTC , ISO9001, ROHS , SGS as customers' request


4. What kind of informations shall I give you regarding the shipping?

Company name, Recipients, Correct Address, telephone, zip code.


5. What is your warranty ?

For most of our products, the warranty will be 12 months.


6. When will I get a solution for defective products?

Within 48 hours (on working days )


7. What is your shipping way?

DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!


8. What is your shipping time?

For General Orders, the shipping time will be 7 workdays.

21SWG 22SWG Q Fiberglass Insulated K Type Thermocouple Extension Wire











Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable , RTD cable and thermocouple related products.
