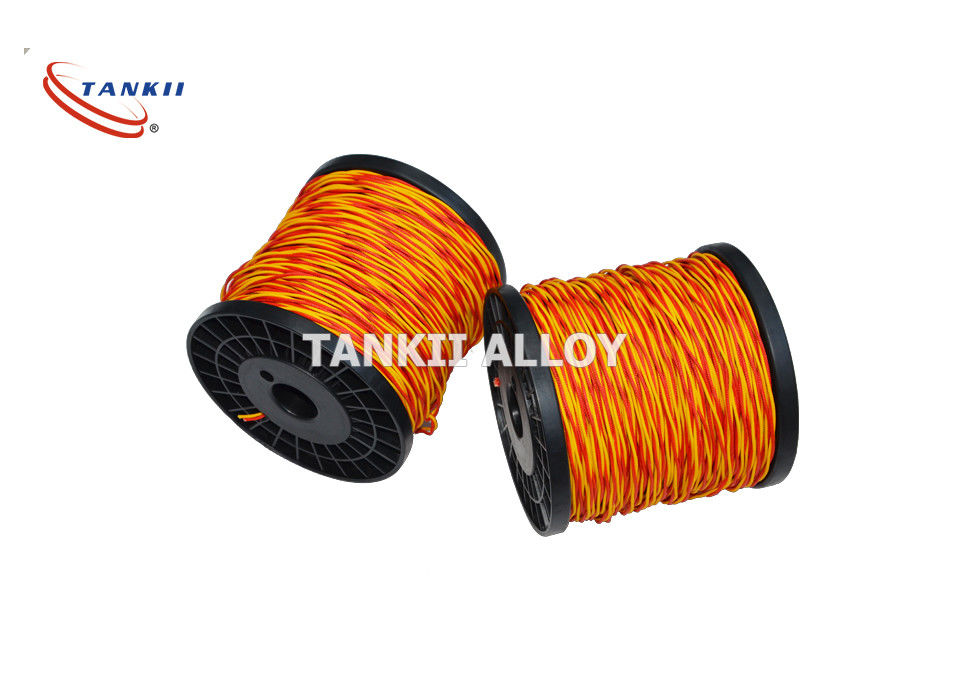

Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation

Certification
China Shanghai Tankii Alloy Material Co.,Ltd certification
China Shanghai Tankii Alloy Material Co.,Ltd certification
Customer Reviews
Perfect cables and bare wires. During the COVID-19 period, you sent us masks as gift, again, thanks a lot for your friendship during these difficult times!

—— Lorenzo Crisetig

Good supplier of Thermocouple wire, short leadting time and fast shipment. It's worth cooperating with Tankii alloy.

—— Vand***

Qualified products. We may place more orders to TANKII

—— Edward***

I bought thermocouple wire from Selina, she is a very responsible lady,Tankii's products quality is pretty good.

—— Jain**

Quick response with professional service on alloy wires. I trust tankii alloy.

—— Crist***

I'm Online Chat Now

Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation

Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation
Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation
Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation

Large Image :  Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: KX
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year

Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation

Description
Item: Type K Thermocouple Extension Wire 22SWG Vitreous Silica Fiber In 500m Spools Insulation Temp.: Up To 1000C
Conductor Size: 0.711mm Insulation Material: Vitreous Silica Fiber
Standard: IEC-60584-2 Leading Time: 5~7 Days After Getting The Deposit
Type: K Type Application: To Connect Thermocouples To The Sensing Or Control Instrumentation.
High Light:

IEC Thermocouple K Type Extension Cable

,

K Type Extension Cable 22SWG

,

0.1mm Thermocouple K Type Cable

Type K Thermocouple Extension Wire 22SWG Vitreous Silica Fiber In 500m Spools ​



Type: K

Conductor: NiCr-NiSi

Conductor Size: 0.1~1.63mm

Insulation Material: See the table as below

Any special requirements can be spoken before order.





Shanghai Tankii alloy material Co., ltd manufactures themocouple wire & extension grade wire, type K, J, T, E, N.



Tankii Thermocouple extension wire is a flexible, insulated wire used to extend a thermocouple signal from a probe back to the instrument reading the signal.
It works accurately over a narrower temperature range than thermocouple wire and can't be used in the sensing point (or probe part) of the thermocouple.
It is typically used as an extension to a measuring instrument over long distances.

Tankii offers a wide variety of insulating, shielding, and jacketing options for tankii single pair thermocouple wire & tankii multipair thermocouple extension cables.

Tankii Thermocouple extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation.
The conditions of measurement determine the type of thermocouple wire and insulation to be used.
Temperature range, environment, insulation requirements, response, and service life should be considered.


Type K Thermocouple Extension Wire 22SWG Vitreous Silica Fiber In 500m Spools ​




Detailed Description
Conductor Name Type Applicable thermocouple type
Cu-Constantan0.6 SC or RC S or R
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) KCA KCB KX K
Iron-constantan18 NiCr14Si-NiSi4Mg NC NX N
NiCr10-Constantan45 EX E
Iron-Constantan 45 JX J
Copper-Constantan 45 TX T



Type K Thermocouple Extension Wire 22SWG Vitreous Silica Fiber In 500m Spools ​




Properties of insulation materials

Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
PVC 105 Very Good Very Good Good Fair Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent




International Color code:

Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation 0

The standards we can meet for thermocouple :

ASTM  (American Society for Testing and Materials) E 230
ANSI (American National Standard Institute) MC 96.1
IEC (European Standard by the International Electrotechnical Commission 584)-1/2/3
DIN (Deutsche Industrie Normen) EN 60584 -1/2
BS (British Standards) 4937.1041, EN 60584 - 1/2
NF (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324
JIS (Japanese Industrial Standards) C 1602 - C 1610
GOST (Unification of the Russian Specifications) 3044


Type K Thermocouple Extension Wire 22SWG Vitreous Silica Fiber In 500m Spools ​




Packaging & Delivery
Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 ~15 days after payment



Thermocouple wire With insulation used for extension cable or compensation cable.



Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation 1Thermocouple K Type Extension Cable 22SWG Vitreous Silica Fiber Insulation 2









FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.


2. When will you arrange the production?
In 12 hours since we get your payment.


3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request


4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.


5. What is your warranty ?
For most of our products, the warranty will be 12 months.


6. When will I get a solution for defective products?
Within 48 hours (on working days )


7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!


8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.



Type K Thermocouple Extension Wire 22SWG Vitreous Silica Fiber In 500m Spools ​





Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable , RTD cable and thermocouple related products.
