Highlight:
IEC Glass Fiber Insulated Thermocouple Cable
, T Type Shielding Thermocouple Cable
, 0.1mm Conductor Thermocouple Cable

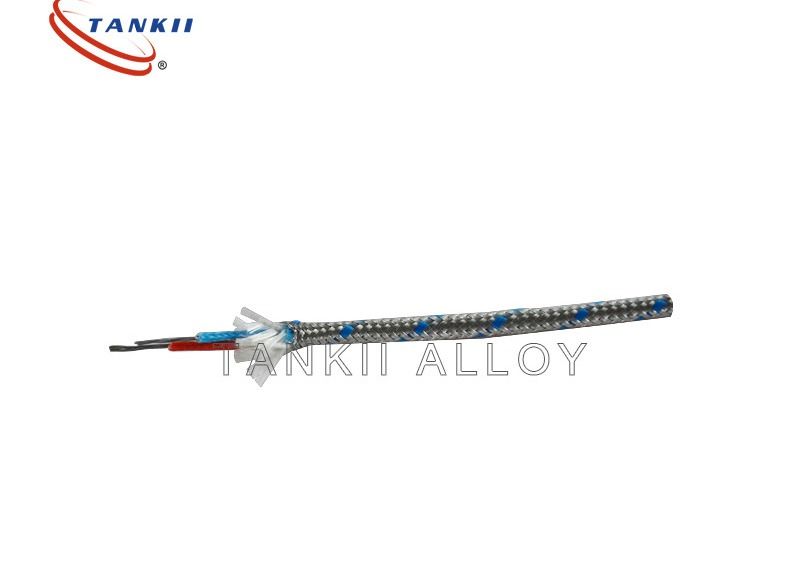

Glass Fiber Insulated Thermocouple Cable T Type With 0.1mm Conductor
Tankii Glass Fiber Insulated Thermocouple Cable T Type J Type
Shanghai Tankii alloy material Co., ltd manufactures themocouple wire, type K, J, T, E, N.
Tankii Thermocouple extension wire is a flexible, insulated wire used to extend a thermocouple signal from a probe back to the instrument reading the signal.
It works accurately over a narrower temperature range than thermocouple wire and can't be used in the sensing point (or probe part) of the thermocouple.
It is typically used as an extension to a measuring instrument over long distances.
Multi/Cable offers a full line of thermocouple cable & wire in standard limits of error & special limits of error. Thermocouple alloy wires are available in solid or stranded configurations.
Tankii offers a wide variety of insulating, shielding, and jacketing options for tankii single pair thermocouple wire & tankii multipair thermocouple extension cables.
Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation.
The conditions of measurement determine the type of thermocouple wire and insulation to be used.
Temperature range, environment, insulation requirements, response, and service life should be considered.
Tankii Glass Fiber Insulated Thermocouple Cable T Type J Type
Detailed Description
| Conductor Name |
Type |
Applicable thermocouple type |
| Cu-Constantan0.6 |
SC or RC |
S or R |
| Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) |
KCA KCB KX |
K |
| Iron-constantan18 NiCr14Si-NiSi4Mg |
NC NX |
N |
| NiCr10-Constantan45 |
EX |
E |
| Iron-Constantan 45 |
JX |
J |
| Copper-Constantan 45 |
TX |
T |
Tankii Glass Fiber Insulated Thermocouple Cable T Type J Type
Properties of insulation materials
| Material Type |
Continuous Operating Temp. / ℃ |
Abrasion Resistance |
Chemical Resistance |
Moisture Resistance |
Solvent Resistance |
Flame Resistance |
| PVC |
105 |
Very Good |
Very Good |
Good |
Fair |
Excellent |
| SILICONE |
200 |
Good |
Good |
Excellent |
Excellent |
Excellent |
| FEP |
200 |
Excellent |
Excellent |
Excellent |
Excellent |
Excellent |
| PFA |
260 |
Excellent |
Excellent |
Excellent |
Excellent |
Excellent |
| PTFE |
260 |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
| B-GLASS FIBER |
260 |
Good |
Good |
Fair |
Good |
Good |
| G-GLASS FIBER |
510 |
Poor |
Good |
Good |
Excellent |
Excellent |
| Q-GLASS FIBER |
704 |
Fair |
Good |
Good |
Excellent |
Excellent |
| VITREOUS SILICA FIBER |
1100 |
Good |
Good |
Excellent |
Excellent |
Excellent |
| MINERAL INSULATION* |
1100 |
Excellent |
Excellent |
Good |
Excellent |
Excellent |
International Color code:
The standards we can meet for thermocouple :
| ASTM |
(American Society for Testing and Materials) E 230 |
| ANSI |
(American National Standard Institute) MC 96.1 |
| IEC |
(European Standard by the International Electrotechnical Commission 584)-1/2/3 |
| DIN |
(Deutsche Industrie Normen) EN 60584 -1/2 |
| BS |
(British Standards) 4937.1041, EN 60584 - 1/2 |
| NF |
(Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 |
| JIS |
(Japanese Industrial Standards) C 1602 - C 1610 |
| GOST |
(Unification of the Russian Specifications) 3044 |
Tankii Glass Fiber Insulated Thermocouple Cable T Type J Type
Packaging & Delivery
| Packaging Details |
Roll with plastic film wrapped and carton package |
| Delivery Detail |
Shipped in 7 ~15 days after payment |
Thermocouple wire With insulation used for extension cable or compensation cable.
FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.
2. When will you arrange the production?
In 12 hours since we get your payment.
3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request
4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.
5. What is your warranty ?
For most of our products, the warranty will be 12 months.
6. When will I get a solution for defective products?
Within 48 hours (on working days )
7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.
Tankii Glass Fiber Insulated Thermocouple Cable T Type J Type
