Product Details:
|
| Item: | Glass Fiber K-TYPE THERMOCOUPLE WIRE DIGITAL THERMOMETER TEMPERATURE SENSOR PROBE | Conductor Type: | 0.3mm |
|---|---|---|---|
| Insulation: | Fiber Glass | Standard: | ANSI/IEC/GB |
| Lead Time: | 3~10 Days After Getting The Deposit | Type: | K |
| Temperature Range: | -200~700 | Application: | Used To Extend The Signal From A Probe To Instrumentation |
| High Light: | Glass Fiber K Type Thermocouple Cable,0.3mm Digital Thermometer Thermocouple Cable,IEC K Type Thermocouple Cable |
||

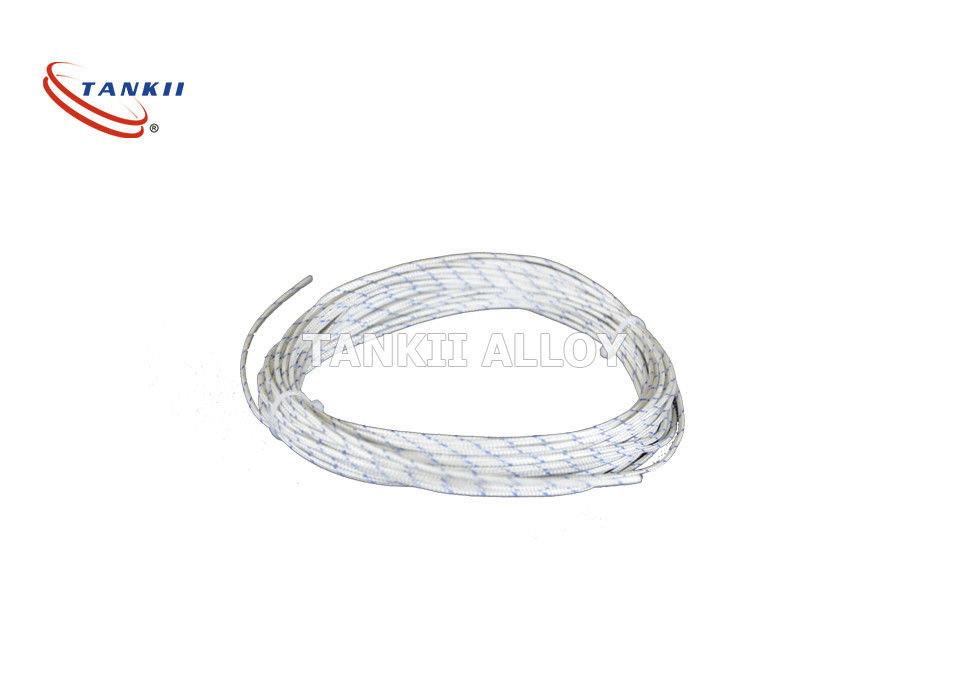

Glass Fiber K-TYPE THERMOCOUPLE WIRE DIGITAL THERMOMETER TEMPERATURE SENSOR PROBE
Glass Fiber K-TYPE THERMOCOUPLE WIRE DIGITAL THERMOMETER TEMPERATURE SENSOR PROBE
| Conductor Name | Type | Applicable thermocouple type |
| Cu-Constantan0.6 | SC or RC | S or R |
| Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) | KCA KCB KX | K |
| Iron-constantan18 NiCr14Si-NiSi4Mg | NC NX | N |
| NiCr10-Constantan45 | EX | E |
| Iron-Constantan 45 | JX | J |
| Copper-Constantan 45 | TX | T |
Glass Fiber K-TYPE THERMOCOUPLE WIRE DIGITAL THERMOMETER TEMPERATURE SENSOR PROBE
| ASTM | (American Society for Testing and Materials) E 230 |
| ANSI | (American National Standard Institute) MC 96.1 |
| IEC | (European Standard by the International Electrotechnical Commission 584)-1/2/3 |
| DIN | (Deutsche Industrie Normen) EN 60584 -1/2 |
| BS | (British Standards) 4937.1041, EN 60584 - 1/2 |
| NF | (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 |
| JIS | (Japanese Industrial Standards) C 1602 - C 1610 |
| GOST | (Unification of the Russian Specifications) 3044 |
| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 ~15 days after payment |
