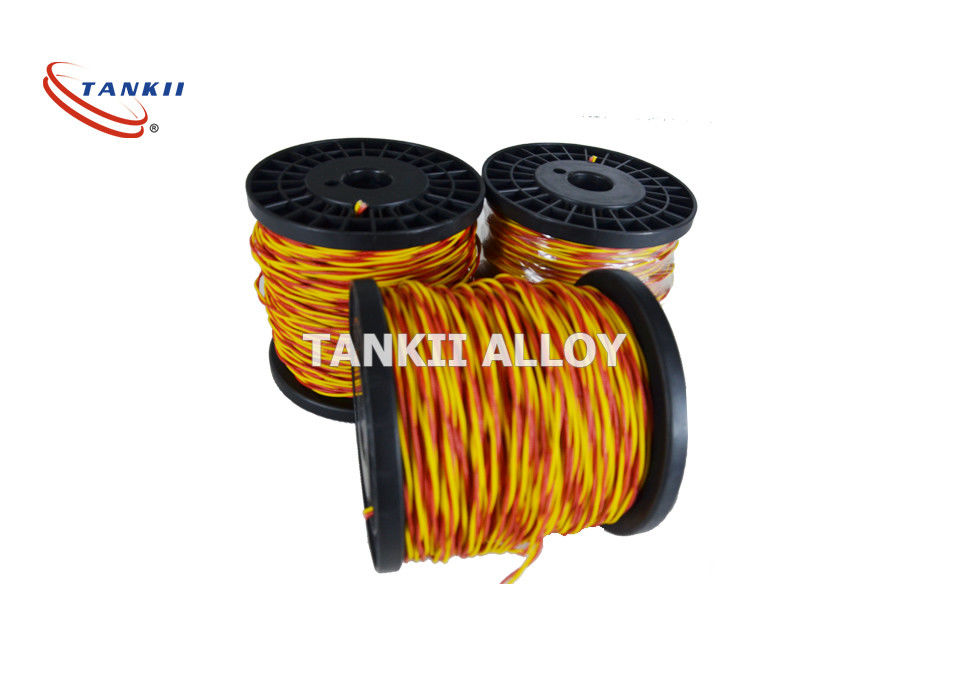

Glass Fiber Insulated Thermocouple Compensating Cable 0.711mm

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: Rohs, SGS

Model Number: KX

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiation

Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.

Delivery Time: 7 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000Ton per year

Get Best Price
Contact Now
Specifications
Highlight:

ANSI Extension Thermocouple Compensating Cable

,

Thermocouple Compensating Cable 0.711mm

,

TX Type Thermocouple Extension Wire

Item:
400 To 1000 Degrees Celsius Glass Fiber Insulated Thermocouple Compensating Cable 2*0.711mm
Insulation Material:
400 To 1000 Degrees Celsius Glass Fiber
Conductor Type:
0.711mm
Standard:
ANSI
Leading Time:
5~7 Days After Getting The Deposit
Type:
K Type
Temperature Range:
-200~1000
Application:
Used To Extend The Signal From A Probe To Instrumentation
Item:
400 To 1000 Degrees Celsius Glass Fiber Insulated Thermocouple Compensating Cable 2*0.711mm
Insulation Material:
400 To 1000 Degrees Celsius Glass Fiber
Conductor Type:
0.711mm
Standard:
ANSI
Leading Time:
5~7 Days After Getting The Deposit
Type:
K Type
Temperature Range:
-200~1000
Application:
Used To Extend The Signal From A Probe To Instrumentation
Description
Glass Fiber Insulated Thermocouple Compensating Cable 0.711mm

400 To 1000 Degrees Celsius Glass Fiber Insulated Thermocouple Compensating Cable 2*0.711mm



Tankii Thermocouple wire is a flexible, insulated wire used to link a thermocouple to a temperature control device.
It may also be used to make the sensing point (or probe) of the thermocouple.
The wire determines the component's temperature and relays the information to the device.
It works accurately over a wider temperature range than thermocouple extension wire.
Tankii alloy Thermocouple extension wire is used to extend the signal from a probe to instrumentation such as controllers or recording devices.
Often times, tankii multi pair thermocouple extension cables are preferred in these applications.
Extension wire is designated by an "X" or "C" after the tankii thermocouple type – i.e., EX, JX, KX, SC, TX.
Multi/Cable offers a full line of thermocouple cable & wire in standard limits of error & special limits of error. Thermocouple alloy wires are available in solid or stranded configurations.
Tankii offers a wide variety of insulating, shielding, and jacketing options for tankii single pair thermocouple wire & tankii multipair thermocouple extension cables.

Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation.
The conditions of measurement determine the type of thermocouple wire and insulation to be used.
Temperature range, environment, insulation requirements, response, and service life should be considered.

400 To 1000 Degrees Celsius Glass Fiber Insulated Thermocouple Compensating Cable 2*0.711mm

Detailed Description
Conductor Name Type Applicable thermocouple type
Cu-Constantan0.6 SC or RC S or R
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) KCA KCB KX K
Iron-constantan18 NiCr14Si-NiSi4Mg NC NX N
NiCr10-Constantan45 EX E
Iron-Constantan 45 JX J
Copper-Constantan 45 TX T



400 To 1000 Degrees Celsius Glass Fiber Insulated Thermocouple Compensating Cable 2*0.711mm


Properties of insulation materials

Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
PVC 105 Very Good Very Good Good Fair Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent




International Color code:

Glass Fiber Insulated Thermocouple Compensating Cable 0.711mm 0

The standards we can meet for thermocouple :

ASTM  (American Society for Testing and Materials) E 230
ANSI (American National Standard Institute) MC 96.1
IEC (European Standard by the International Electrotechnical Commission 584)-1/2/3
DIN (Deutsche Industrie Normen) EN 60584 -1/2
BS (British Standards) 4937.1041, EN 60584 - 1/2
NF (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324
JIS (Japanese Industrial Standards) C 1602 - C 1610
GOST (Unification of the Russian Specifications) 3044



Packaging & Delivery
Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 ~15 days after payment



Thermocouple wire With insulation used for extension cable or compensation cable.



Glass Fiber Insulated Thermocouple Compensating Cable 0.711mm 1Glass Fiber Insulated Thermocouple Compensating Cable 0.711mm 2









FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.


2. When will you arrange the production?
In 12 hours since we get your payment.


3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request


4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.


5. What is your warranty ?
For most of our products, the warranty will be 12 months.


6. When will I get a solution for defective products?
Within 48 hours (on working days )


7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!


8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.



ANSI Red And Blue T Type Thermocouple Cable With PVC Insulation And Blue Jacket
