Product Details
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001
Model Number: tinned copper
Payment & Shipping Terms
Minimum Order Quantity: 50kg
Price: negotiable
Packaging Details: wooden case
Delivery Time: 8-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200+ton+month
Application: |
Braid Shielding |
Conductor Type: |
Solid |
Standard: |
ASTM B-33 |
Application: |
Braid Shielding |
Conductor Type: |
Solid |
Standard: |
ASTM B-33 |

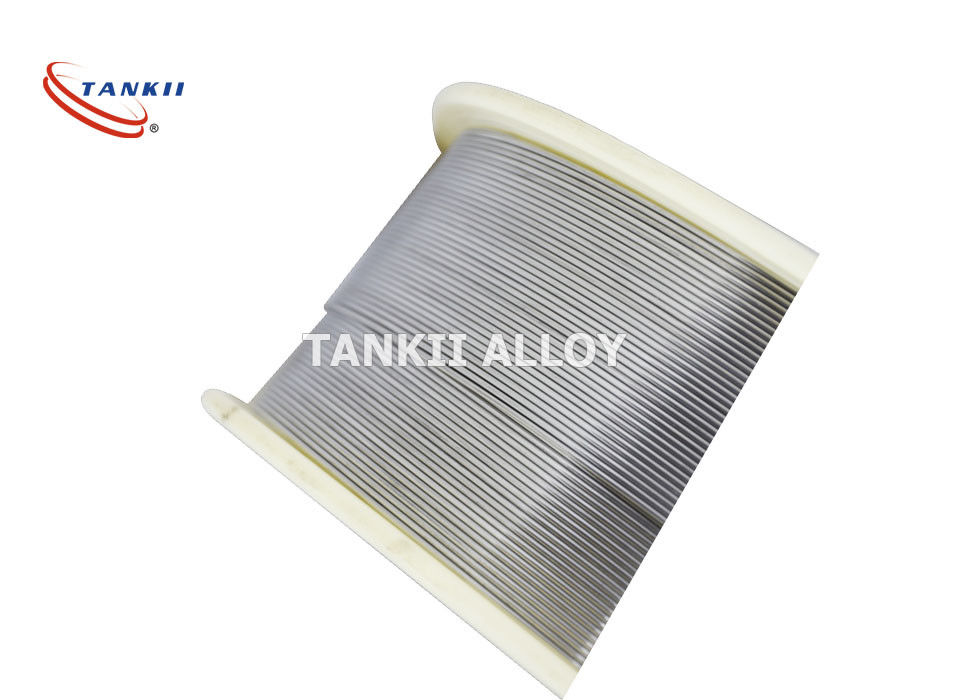

magnetic shielding material tinned copper alloy braided wire
Tinned copper wire is a type of copper wire coated in a thin layer of tin to protect the copper from corrosion that would decrease the wire’s efficiency in humid or rainy climates, high-heat environments and in certain types of soil.
Standard:
GBT 4910-2009
Manufacturing Process:
Dipping the copper in molten tin
Manufacturing Range:
0.05mm~4.00mm
Technical Data:
| Nominal Diameter d (MM) |
Tolerance (MM) |
| 0.050<d≤0.125 | +0.006 -0.003 |
| 0.125<d≤0.400 | +0.010 -0.004 |
| 0.400<d≤4.00 | +2%*Diameter |
| Nominal Diameter d (MM) |
Min.Elongation (%) |
| 0.050<d≤0.09 | 6 |
| 0.09<d≤0.25 | 12 |
| 0.25<d≤0.50 | 15 |
| 0.50<d≤2.00 | 20 |
| 2.00<d≤4.00 | 25 |
| Nominal Diameter d (MM) |
Max.Resistivity (Ohm.mm2/m) |
| 0.050<d≤0.09 | 0.01851 |
| 0.09<d≤0.25 | 0.01831 |
| 0.25<d≤0.50 | 0.01793 |
| 0.50<d≤4.00 | 0.01775 |
Note: Customized wire is available
Advantage:
1. Good Elongation
2. Good Solderability
3. Corrosion Resistance
4. Good Conductivity
Application:
Power cable, Electronic Wire, Home appliances connecting wire, circuit board jumper cable, PCB cable, LED wire, auto parts, loudspeaker, monitor, photocopy, fax machine, medical equipment, computer, electronic toy, connection areas of batteries and other products.
