Tinned PVC Politef Alkali Free Thermocouple Cable

Tinned PVC Politef Alkali Free Thermocouple Cable
Tinned PVC Politef Alkali Free Thermocouple Cable
Tinned PVC Politef Alkali Free Thermocouple Cable Tinned PVC Politef Alkali Free Thermocouple Cable Tinned PVC Politef Alkali Free Thermocouple Cable Tinned PVC Politef Alkali Free Thermocouple Cable

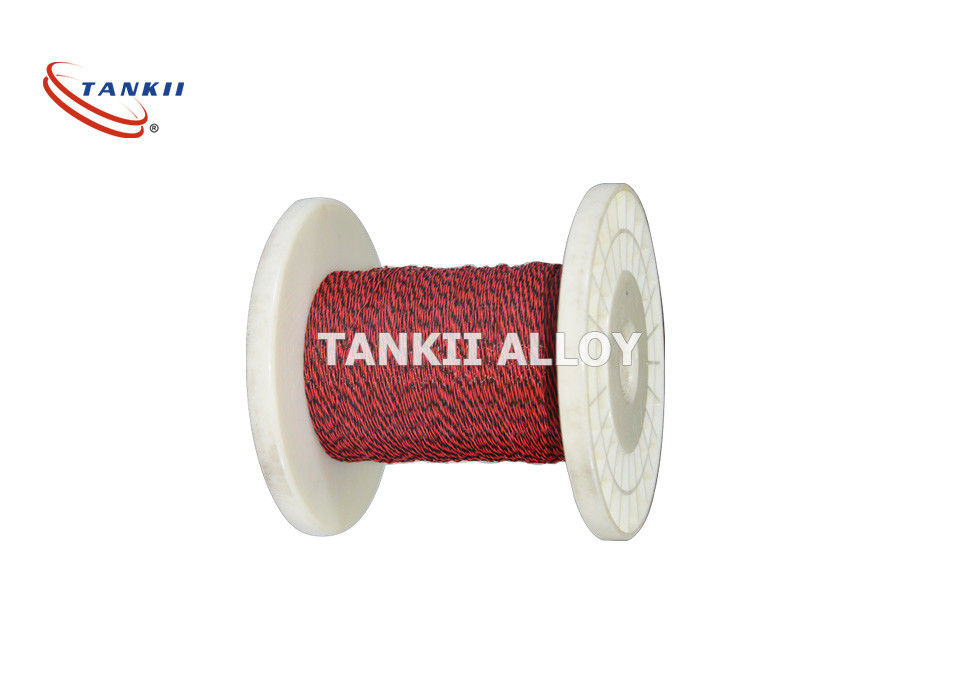

Large Image :  Tinned PVC Politef Alkali Free Thermocouple Cable

Product Details:
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001
Model Number: PVC
Payment & Shipping Terms:
Minimum Order Quantity: 3000m
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 15-28 days
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 1 million+meter+per month

Tinned PVC Politef Alkali Free Thermocouple Cable

Description
Material: Copper,PVC Or Politef Color: Red,black,white,blue,green Etc.
Insulation: PVC Or Politef Sheath: PVC,politef Or Alkali Free Glass Wire
Shield: Tinned Wire,galvanized Copper Wire Or Aluminum Plastic Composite Tape Working Temperature: -25~+200℃
High Light:

Alkali Free Thermocouple Cable

,

PVC Politef Thermocouple Cable

,

Tinned Thermocouple Cable

high temperature extension wire PVC politef alkali free glass wire tinned galvanized copper wire twisted



Thermocouple Extension Cable



Thermocouple Extension wire and wire which are used in temperature measuring method by thermocouple, that consists of two dissimilar metals that are joined together at the sensing end. Extension wire uses same materials with thermocouple to extend from thermocouple to measuring equipment.

Features: Excellent thermoelectric stability, mechanical and electric properties, long working life;

Simple structure, excellent flexibility,easy for assembly;

High chemical stability, heat-resisting, and frost-resisting of clad.

Part NO. Insulation grades Conductor Certificates Standard Insulation System
OLTIW Class-B 130℃

0.16

·--1.00

single wire UL E466302
VDE 40040893
UL2353
IEC60950 IEC60601
IEC61558 IEC60065
E497858
OULY-130



Conductor name Type Applicable thermocouple type
Cu-Constantan 0.6 SC or RC S or R

Iron-constantan 22

Copper-Constantan40

Chromel 10-NiSi3

KCA

KCB

KX

K

Iron-constantan 18

NiCr14Si-NiSi4Mg

NC

NX

N
NiCr10-Constantan45 EX E
Iron-Constantan 45 JX J
Copper-Constantan 45 TX T



Features/application:

       Compensation wires for thermocouples are a pair of insulated wires with the same nominal value of thermoelectromotive force of matched thermocouples in a certain temperature range (including normal temperature), which are used to connect thermocouples and measuring devices to compensate errors caused by temperature changes at their connection with thermocouples. It can be divided into extension type and compensation type.

       Delivery requirements:
       According to the contract agreement of both parties, short delivery of not less than 10m is allowed. The quantity shall not exceed 10% of the total length of delivery.



Specification:

Cable core type cable core section(mm2) core strands number single wire diameter( mm )
Single strand wire core 0.2
0.5
1.0
1.5
2.5
1
1
1
1
1
0.52
0.80
1.13
1.37
1.76
Multi-strand wire core(soft wire) 0.2
0.5
1.0
1.5
2.5
7
7
7
7
19
0.20
0.30
0.43
0.52
0.41

Dimension:

Application Core section
(mm2)
Insulation thickness
(mm)
sheath thickness
(mm)
max diameter(mm)
single strand core multi-strand soft core
Universal use 0.2
0.5
1.0
1.5
2.5
0.4
0.3
0.7
0.7
0.7
0.7
0.8
1.0
1.0
1.0
3.0 × 4.6
3.7 × 6.4
5.0 × 7.7
5.2 × 8.3
5.7 × 9.3
3.1 × 4.8
3.9 × 6.6
5.1 × 8.0
5.5 × 8.7
5.9 × 9.8
Temperature resistance use 0.2
0.5
1.0
1.5
2.5
0.4
0.4
0.4
0.4
0.4
0.3
0.3
0.3
0.3
0.3
2.3 × 4.0
2.6 × 4.6
3.0 × 5.3
3.2 × 5.8
3.6 × 6.7
2.4 × 4.2
2.8 × 4.8
3.1 × 5.6
3.4 × 6.2
4.0 × 7.3

Reciprocating resistance value at 20℃:

Model number Cable core section(mm2)
0.2 0.5 1.0 1.5 2.5
SC or RC
KCA
KCB
KX
EX
JX
TX
NC
NX
0.25
3.50
2.60
5.50
6.25
3.25
2.60
3.75
7.15
0.10
1.40
1.04
2.20
2.50
1.30
1.04
1.50
2.86
0.05
0.70
0.52
1.10
1.25
0.65
0.52
0.75
1.43
0.03
0.47
0.35
0.73
0.73
0.43
0.35
0.50
0.95
0.02
0.28
0.21
0.44
0.50
0.26
0.21
0.30
0.57

Tinned PVC Politef Alkali Free Thermocouple Cable 0Tinned PVC Politef Alkali Free Thermocouple Cable 1Tinned PVC Politef Alkali Free Thermocouple Cable 2
