Temperature Sensor 3 Core AWG22 Pt100 Thermocouple Cable

Name: Temperature Sensor 3 Core AWG22 Pt100 Thermocouple Cable
Brand: Tankii
SKU: Pt100 / RTD
Rating: 4.9 (144 reviews)

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: Rohs, SGS

Model Number: Pt100 / RTD

Payment & Shipping Terms

Minimum Order Quantity: 200 Meters

Price: Negotiation

Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000Ton per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Pt100 Thermocouple Cable, AWG22 Thermocouple Cable, 3 Cores RTD Cable


Insulation Material:	PVC	Conductor Type:	Solid Or Multi
Standard:	ANSI, IEC	Leading Time:	5~7 Days After Getting The Deposit
Type:	PT100 , RTD	Item:	AWG22 Pt100 Thermocouple Wire RTD Cables With Red Red White

Insulation Material:	PVC
Conductor Type:	Solid Or Multi
Standard:	ANSI, IEC
Leading Time:	5~7 Days After Getting The Deposit
Type:	PT100 , RTD
Item:	AWG22 Pt100 Thermocouple Wire RTD Cables With Red Red White

Description

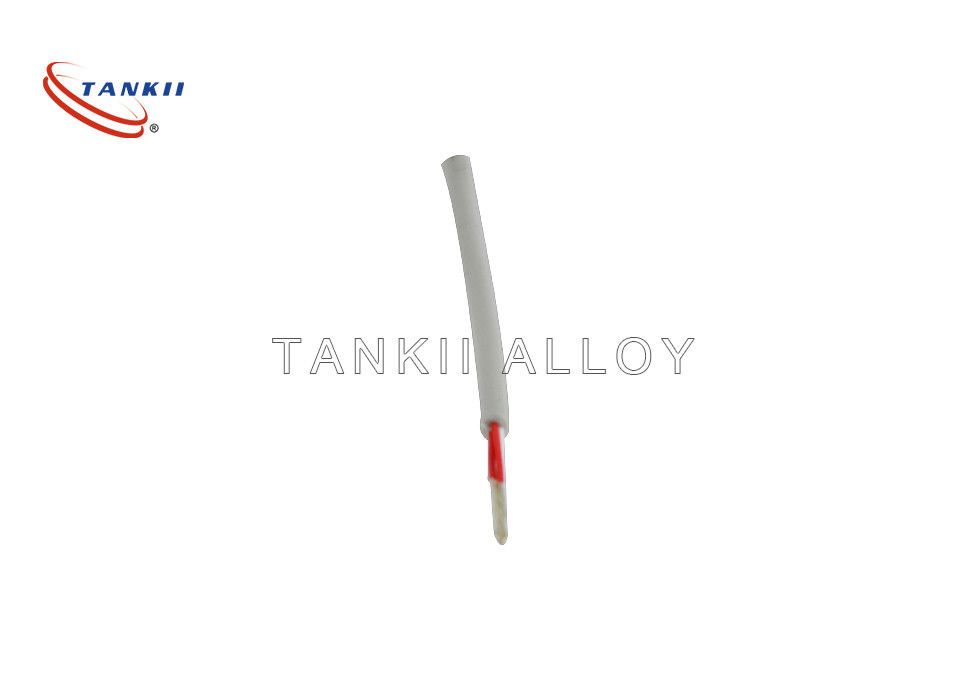

Temperature Sensor 3 Core AWG22 Pt100 Thermocouple Cable

AWG22 Pt100 Thermocouple Wire 3 Cores RTD Cables With Red Red White

Resistance Temperature Detectors (RTDs)
There are other temperature measurement technologies than the thermocouple such as RTDs (resistance temperature detector).

In applications with temperatures above 1,200° F (650° C) thermocouple is used. At lower temperatures RTDs are used for their simpler operation and greater sensitivity and stability.

Thermocouples have a better response time.

RTDs are special resistors whose resistance value changes with temperature in a known way.

RTDs are connected to the temperature recording or process control instrumentation using ordinary copper instrumentation cable.

Thermocouple wire is not required to connect an RTD.

Typical RTD cable is standard instrumentation cable in two, three, or four conductors or possibly groups of pairs/triads/quads depending on the type of RTD being used and number of devices being monitored. Individual or overall shielding is often used for noise immunity.

AWG22 Pt100 Thermocouple Wire 3 Cores RTD Cables With Red Red White

Properties of insulation materials

Material Type	Continuous Operating Temp. / ℃	Abrasion Resistance	Chemical Resistance	Moisture Resistance	Solvent Resistance	Flame Resistance
PE	80	Good	Excellent	Excellent	Excellent	Poor
PVC	105	Very Good	Very Good	Good	Fair	Excellent
TPE	125	Excellent	Poor	Good	Good	Excellent
SILICONE	200	Good	Good	Excellent	Excellent	Excellent
FEP	200	Excellent	Excellent	Excellent	Excellent	Excellent
PFA	260	Excellent	Excellent	Excellent	Excellent	Excellent
PTFE	260	Good	Excellent	Excellent	Excellent	Excellent
B-GLASS FIBER	260	Good	Good	Fair	Good	Good
G-GLASS FIBER	510	Poor	Good	Good	Excellent	Excellent
Q-GLASS FIBER	704	Fair	Good	Good	Excellent	Excellent
VITREOUS SILICA FIBER	1100	Good	Good	Excellent	Excellent	Excellent
MINERAL INSULATION*	1100	Excellent	Excellent	Good	Excellent	Excellent

Temperature Sensor Pt100 Sensor Used Rtd Cable With PVC

Packaging & Delivery

Packaging Details	Roll with plastic film wrapped and carton package
Delivery Detail	Shipped in 7 days after payment

Temperature Sensor 3 Core AWG22 Pt100 Thermocouple Cable 0

FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.

2. When will you arrange the production?
In 12 hours since we get your payment.

3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request

4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.

5. What is your warranty ?
For most of our products, the warranty will be 12 months.

6. When will I get a solution for defective products?
Within 48 hours (on working days )

7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!

8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.

AWG22 Pt100 Thermocouple Wire 3 Cores RTD Cables With Red Red White

Welcome to call me or email to me for more info on thermocouple cable , RTD cable.
