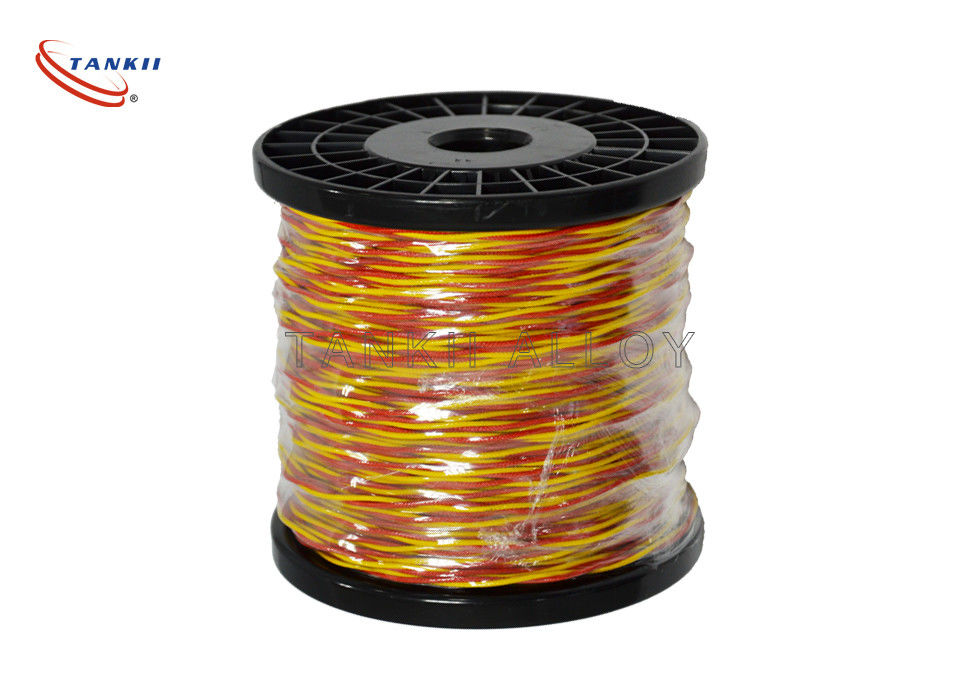

Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation

Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation
Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation

Large Image :  Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: KX
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year

Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation

Description
Insulation Material: G-class Fiberglass Conductor Type: Solid Or Stranded
Standard: ANSI, IEC Leading Time: 5~7 Days After Getting The Deposit
Type: Kx, Tx Jx Type Thermocouple Cable Item: Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation
High Light:

type k thermocouple wire

,

thermocouple cable k type

Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation

A thermocouple is a temperature measuring device consisting of two conductors of dissimilar metals or alloys that are connected only at the ends. When the ends are at different temperatures a small voltage is produced in the wire that can be related directly to the temperature difference between the ends. If the temperature at one end is known, the temperature at the other end can be determined.
Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation. The conditions of measurement determine the type of thermocouple wire and insulation to be used. Temperature range, environment, insulation requirements, response, and service life should be considered.

Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation

TYPE KX or KC  wire used for extension or compensation thermocouple cable.



Detailed Description
Conductor Name Type Applicable thermocouple type
Cu-Constantan0.6 SC or RC S or R
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) KCA KCB KX K
Iron-constantan18 NiCr14Si-NiSi4Mg NC NX N
NiCr10-Constantan45 EX E
Iron-Constantan 45 JX J
Copper-Constantan 45 TX T



Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation 0



Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation


Properties of insulation materials

Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
PVC 105 Very Good Very Good Good Fair Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent




Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation



Packaging & Delivery
Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 days after payment



Thermocouple wire With insulation used for extension cable or compensation cable.

Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation 1






Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation



FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.

2. When will you arrange the production?
In 12 hours since we get your payment.

3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request

4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.

5. What is your warranty ?
For most of our products, the warranty will be 12 months.

6. When will I get a solution for defective products?
Within 48 hours (on working days )

7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!

8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.



Solid Thermocouple Extension Cable Type K 22SWG With High Temperature Fiberglass Insulation




Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable , RTD cable and thermocouple related products.
