Thermocouple Wire Type K J T Insulate Cable Mineral Insulated Heating Cable 24 Awg Ptfe / Fiber Glass / Pvc / Pfa

Name: Thermocouple Wire Type K J T Insulate Cable Mineral Insulated Heating Cable 24 Awg Ptfe / Fiber Glass / Pvc / Pfa
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Type K
Price: 14.20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: Type K

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiation

Packaging Details: 5000m/spool

Delivery Time: 5-30days

Payment Terms: T/T, Western Union

Supply Ability: 152400m/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      type k thermocouple wire, thermocouple cable k type


Name:	Type K Thermocouple Extension Wire	Shape:	Solid
Color:	Red	Type:	K,J,E,T
Package:	Coil	Temperature:	200°C 400°C 800°C 1000°C

Name:	Type K Thermocouple Extension Wire
Shape:	Solid
Color:	Red
Type:	K,J,E,T
Package:	Coil
Temperature:	200°C 400°C 800°C 1000°C

Description

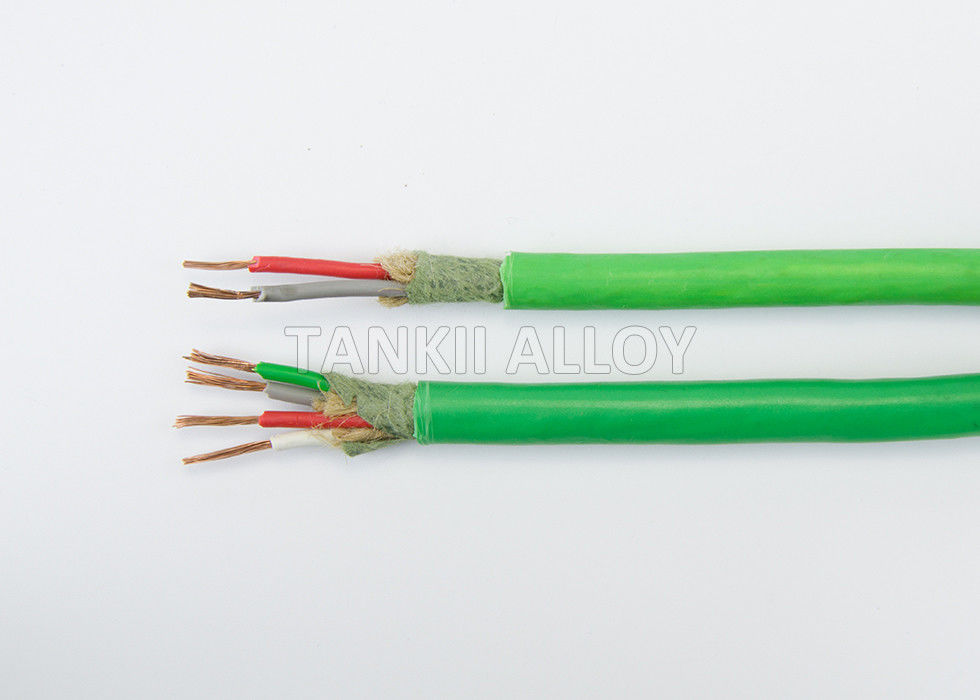

Thermocouple Wire Type K J T Insulate Cable Mineral Insulated Heating Cable 24 Awg Ptfe / Fiber Glass / Pvc / Pfa

Thermocouple Wire Type K J T Insulate Cable Mineral Insulated Heating Cable 24 Awg Ptfe / Fiber Glass / Pvc / Pfa

NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

Grade:	Extension Grade or Thermocuple Grade
temperature range, deg. c	-50... +400
type of coductor:	K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors:	1,2,3,4,6
Conductor type	Strand or Solid
section area of each core, mm2 (Conductor Size AWG)	20, 24, 30, 32,36,40
material of insulation:	fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
material of jacket:	fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
shielding material:	SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
color:	ANSI, IEC, etc
quantity and lenght of coil, m(ft)	10100m, 5200m, 2500m, 11000m, 31000ft, 12000ft,

NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

Thermocouple Wire Type K J T Insulate Cable Mineral Insulated Heating Cable 24 Awg Ptfe / Fiber Glass / Pvc / Pfa 0
