Product Details:
|
Package: | Coil | Temperature: | Customzied |
---|---|---|---|
Standard: | ANSI | Type: | K |
Insulation: | PTFE/PVC/FIBERGLASS | Certification: | ISO 9001 |
COLOR: | YELLOW AND RED | ||
High Light: | high temperature thermocouple cable,type k thermocouple wire,thermocouple cable k type |

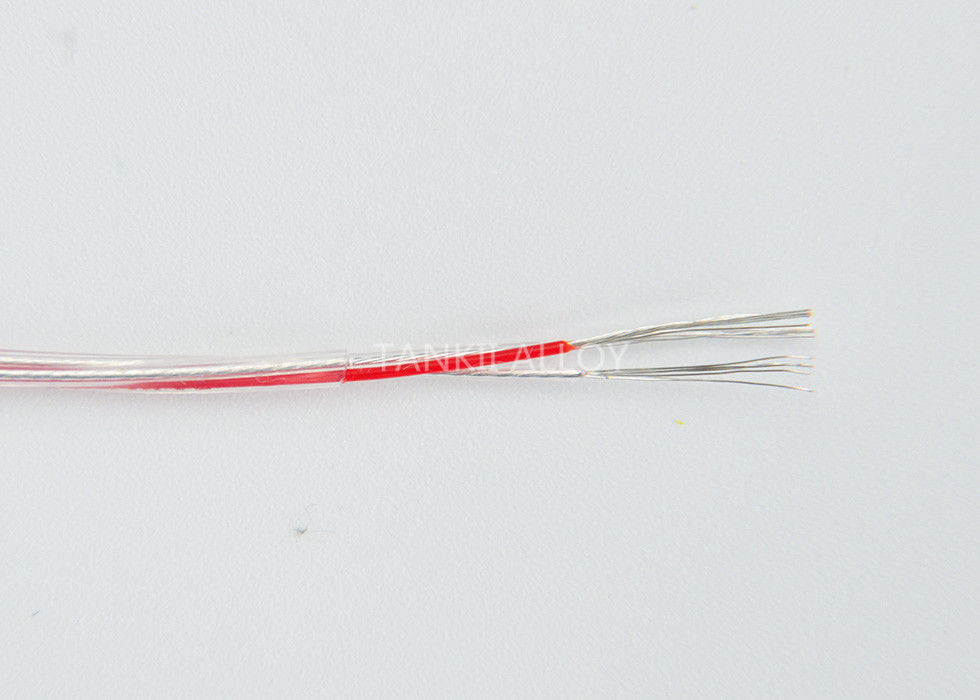

pfa insulated thermocouple cable JX 2*0.5mm color customzied high quality
Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 ‘Alloy wires of extension and compensating cables for thermocouples’ (Chinese National Standard), and also IEC584-3 ‘Thermocouple part 3-compensating wire’ (International standard).
Grade: | Extension Grade or Thermocuple Grade |
temperature range, deg. c | -50... +400 |
type of coductor: | K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX |
number of conductors: | 1,2,3,4,6 |
Conductor type | Strand or Solid |
section area of each core, mm2 (Conductor Size AWG) | 20, 24, 30, 32,36,40 |
material of insulation: | fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc |
material of jacket: | fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc |
shielding material: | SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid) |
color: | ANSI, IEC, etc |
quantity and lenght of coil, m(ft) | 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft, |
