SGS Standard K Type Thermocouple Cable With Silver Plated Copper Wire Screen

SGS Standard K Type Thermocouple Cable With Silver Plated Copper Wire Screen
SGS Standard K Type Thermocouple Cable With Silver Plated Copper Wire Screen SGS Standard K Type Thermocouple Cable With Silver Plated Copper Wire Screen SGS Standard K Type Thermocouple Cable With Silver Plated Copper Wire Screen SGS Standard K Type Thermocouple Cable With Silver Plated Copper Wire Screen

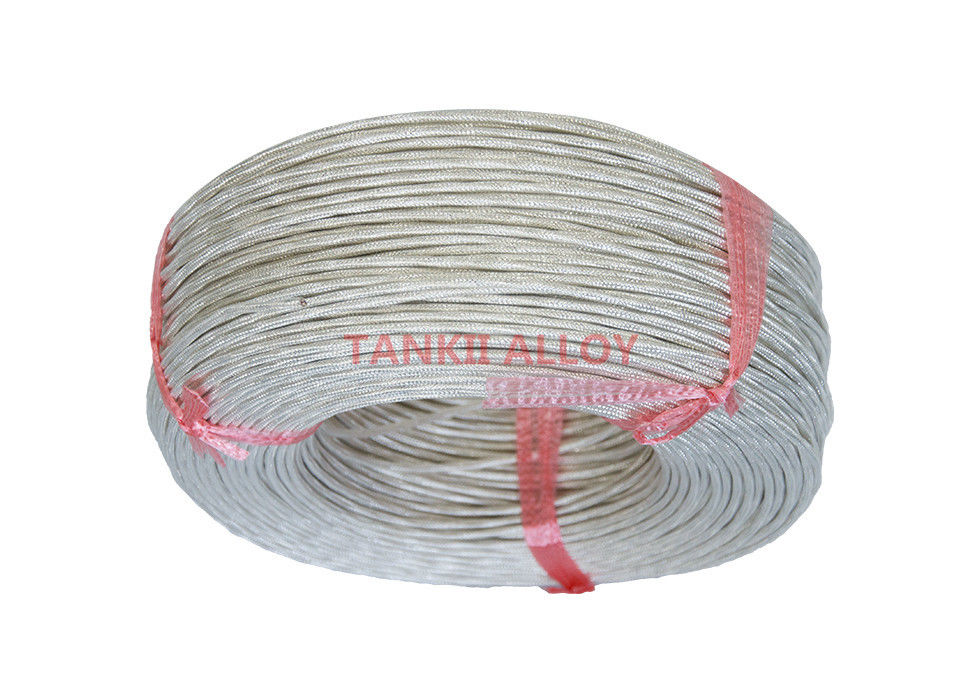

Large Image :  SGS Standard K Type Thermocouple Cable With Silver Plated Copper Wire Screen

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: KX
Payment & Shipping Terms:
Minimum Order Quantity: 200 Meters
Price: Negotiation
Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000Ton per year

SGS Standard K Type Thermocouple Cable With Silver Plated Copper Wire Screen

Description
Insulation Material: PTFE , PFA, Ptfe Fep Conductor Type: Solid Or Multi
Standard: ANSI, IEC Leading Time: 5~7 Days After Getting The Deposit
Type: Kx, Tx Jx Type Thermocouple Cable Item: K Type Thermocouple Extension Wire With FiberGlass Insulation And Silver Plated Copper Wire Screen
High Light:

type k thermocouple wire

,

thermocouple cable k type

K type Thermocouple Extension Wire With FiberGlass Insulation And Silver Plated Copper Wire Screen
A thermocouple is a temperature measuring device consisting of two conductors of dissimilar metals or alloys that are connected only at the ends. When the ends are at different temperatures a small voltage is produced in the wire that can be related directly to the temperature difference between the ends. If the temperature at one end is known, the temperature at the other end can be determined.
Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation. The conditions of measurement determine the type of thermocouple wire and insulation to be used. Temperature range, environment, insulation requirements, response, and service life should be considered.


The Type K thermocouple is composed of a Nickel-10% chromium (+) wire versus a nickel-5% aluminum and silicon (-) wire. This type of thermocouple should only be used in oxidizing or inert atmospheres with a service temperature range between -200°C and 1260°C (-330°F to 2300°F). They are most widely used at temperatures above 540'C (1000"F) due to superior oxidation resistance in comparison to Types E, T, or J. There are some conditions which should be avoided when using Type K thermocouples. Vacuum applications should not use Type K due to vaporization of chromium in the positive element. Type K thermocouples should not be used in Sulfurous environments since both elements will rapidly corrode and the negative element will eventually fail mechanically due to becoming brittle. Reducing atmospheres should also be avoided. Low oxygen levels can cause the Green-Rot phenomenon in which the chromium in the elements starts to oxidize causing large negative drifts in calibration.



K type Thermocouple Extension Wire With FiberGlass Insulation And Silver Plated Copper Wire Screen



Detailed Description
Conductor Name Type Applicable thermocouple type
Cu-Constantan0.6 SC or RC S or R
Iron-constantan22 Copper-Constantan40 Chromel-Ni(Alumel) KCA KCB KX K
Iron-constantan18 NiCr14Si-NiSi4Mg NC NX N
NiCr10-Constantan45 EX E
Iron-Constantan 45 JX J
Copper-Constantan 45 TX T



K type Thermocouple Extension Wire With FiberGlass Insulation And Silver Plated Copper Wire Screen







Properties of insulation materials

Material Type Continuous Operating Temp. / ℃ Abrasion Resistance Chemical Resistance Moisture Resistance Solvent Resistance Flame Resistance
PE 80 Good Excellent Excellent Excellent Poor
PVC 105 Very Good Very Good Good Fair Excellent
TPE 125 Excellent Poor Good Good Excellent
SILICONE 200 Good Good Excellent Excellent Excellent
FEP 200 Excellent Excellent Excellent Excellent Excellent
PFA 260 Excellent Excellent Excellent Excellent Excellent
PTFE 260 Good Excellent Excellent Excellent Excellent
B-GLASS FIBER 260 Good Good Fair Good Good
G-GLASS FIBER 510 Poor Good Good Excellent Excellent
Q-GLASS FIBER 704 Fair Good Good Excellent Excellent
VITREOUS SILICA FIBER 1100 Good Good Excellent Excellent Excellent
MINERAL INSULATION* 1100 Excellent Excellent Good Excellent Excellent





K type Thermocouple Extension Wire With FiberGlass Insulation And Silver Plated Copper Wire Screen
Packaging & Delivery
Packaging Details Roll with plastic film wrapped and carton package
Delivery Detail Shipped in 7 days after payment




SGS Standard K Type Thermocouple Cable With Silver Plated Copper Wire Screen 0


FAQ:
1. Payment ways?
T/T, PAYPAL, WESTUNION.

2. When will you arrange the production?
In 12 hours since we get your payment.

3. Product certifications?
MTC , ISO9001, ROHS , SGS as customers' request

4. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.

5. What is your warranty ?
For most of our products, the warranty will be 12 months.

6. When will I get a solution for defective products?
Within 48 hours (on working days )

7. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!

8. What is your shipping time?
For General Orders, the shipping time will be 7 workdays.

Welcome to call me or email to me for more info on thermocouple wire, thermocouple cable ,  connectors, RTD cable and thermocouple related products.
