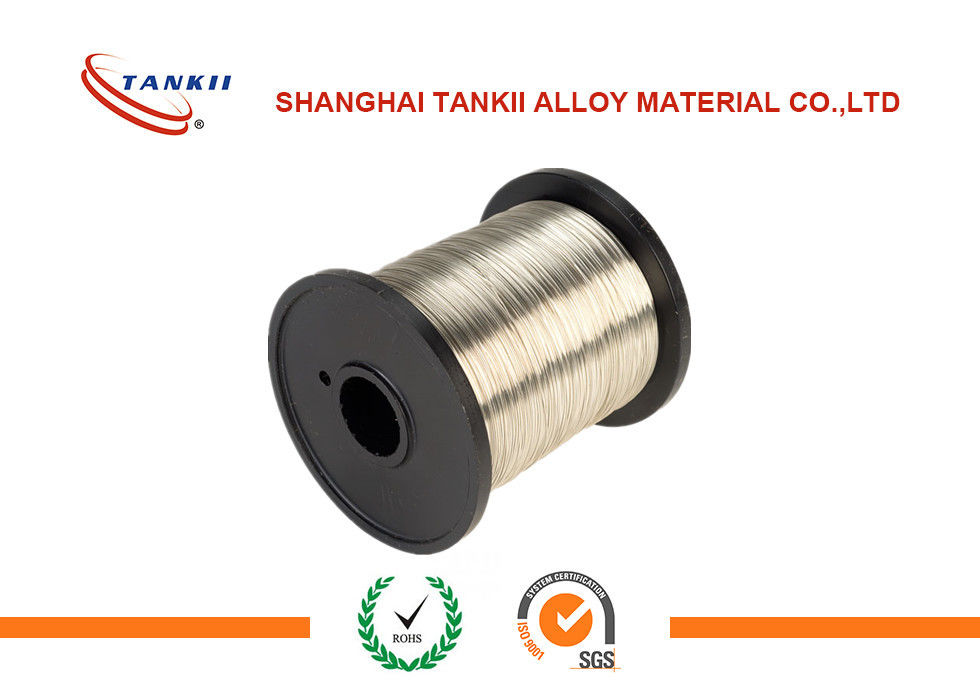

Tinned Copper Alloy Wire Swg / Awg Standard With Good Corrosion Resistance

Tinned Copper Alloy Wire Swg / Awg Standard With Good Corrosion Resistance
Tinned Copper Alloy Wire Swg / Awg Standard With Good Corrosion Resistance Tinned Copper Alloy Wire Swg / Awg Standard With Good Corrosion Resistance Tinned Copper Alloy Wire Swg / Awg Standard With Good Corrosion Resistance Tinned Copper Alloy Wire Swg / Awg Standard With Good Corrosion Resistance

Large Image :  Tinned Copper Alloy Wire Swg / Awg Standard With Good Corrosion Resistance

Product Details:
Place of Origin: Shanghai
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: C1100
Payment & Shipping Terms:
Minimum Order Quantity: 10 KG
Price: To negotiate
Packaging Details: Spool, Carton, plywood case with plastic film as your requirements
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH

Tinned Copper Alloy Wire Swg / Awg Standard With Good Corrosion Resistance

Description
Conductor Material: Pure Copper Insulation Material: Tin
Application: Marine Cables, High Temperature Resistant Cable, Shield Material, Feature: Good Corrosion Resistance, Good Ductility, Good Elongation
Colour: Silver White Size: As Clients´ Requirements
High Light:

copper and nickel alloy

,

nickel copper alloy

Tinned Copper Wire SWG/AWG Standard with Good Corrosion Resistance for Marine Cable



Specification and Mechanical Properties:

1.Diameter:0.08-0.6mm
2.Tensile strength : more than 250 Mpa;
3.Copper Volume : 95%;
4.Conductivity : 37-50%;
5.Dc resisitivity : 0.047Ωmm²/m;
6.Elongation :30%.

Product Description


1. Tinned plated copper wire for braided wire, stranded wire, network cable and so on
2.Usage -- Tinned copper wire for braided wire, stranded wire, network cable and so on
3.Product situation -- Tinned copper wire for braided wire, stranded wire, network cable and so on
4.Produce process -- Tinned copper wire for braided wire, stranded wire, network cable and so on

1.According to customer's requirement ,the specification can be produced from 0.10mm to 5.0mm by wire drawing machine ;
2.By annealing ,cooling,drying and packaging , It's finished .
3.Examining the products' surface and testing property to ensure high quality ,
4.Strictly packaged and put in the ventilated and dry place, normal temperature and 35%RH around





Copper Capabilities

Copper is the second most conductive metal in the world behind silver, but due to its abundance and how easy it is to work with, copper is considered the standard in electrical work. Copper is also the standard by which all other conductive metals are judged. In 1913, the International Electro-Technical Commission set its conductivity at 100 percent of the International Annealed Copper Standard (IACS). The metal resists galvanic corrosion – the gradual deterioration of one metal in electrical contact with another metal – and is durable enough that it avoids stretching, nicks and breaks. However, copper is not invincible.

Tinning Benefits

When you apply a thin coating of tin to bare copper wire, either by dipping the copper in molten metal or by using an electric current to bind the tin to the copper, you create what is known as tinned copper wire. Tinned copper wire is just as conductive as bare copper wire, but the thin layer of tin helps the wire resist corrosion. Tinned copper wire can last up to 10 times longer than its non-tinned counterpart, and because solder is composed primarily of tin, tinned wire is incredibly easy to solder. Tinned copper wire is particularly useful in industrial cranes, subways and marine projects where the tin coat makes the wire more resistant to water.



Cost Disadvantages

Despite the many benefits of tinned wire, it is not always the right wire for the job. Tinned copper wire is more expensive than its non-tinned counterpart and can cost as much as 30 percent more than basic, bare copper wire. In environments where acidic soil, high heat or high humidity are not concerns for a project, non-tinned copper wire works just as well.



Detailed Properties



Mechanical Property   Cu CuSn6
Tensile Strength [N/mm²] 220-300 470-530
Elongation 1% [N/mm²] 120-200 380-460
Resistance(IACS) [%] 101 13
Conductivity [S*m/mm²] 58.5 7.5
Resistivity [Ohm*mm²/m] 0.0171 0.1333
Temperature Coefficient of Resistance [1E-6/K] 3900-4300 600-700
Weldability [-] Good Good





Tinned Copper Alloy Wire Swg / Awg Standard With Good Corrosion Resistance 0Tinned Copper Alloy Wire Swg / Awg Standard With Good Corrosion Resistance 1
